Excavators

Compare Models

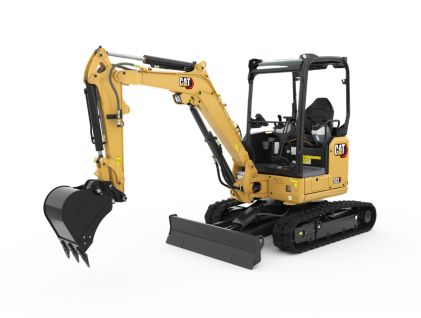

302 CR
UNITS:
Metric
Imperial
Net Power
15.7 kW
21 HP

15.2 kW
20.7 HP

23.6 kW
31.6 HP
Engine Model
C1.1
C1.1

Yanmar 3TNV76
Yanmar 3TNV76

Cat® C1.8
Cat® C1.8
Note (2)
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.

-

-
Bore
77 mm
3 in

-

-
Stroke
81 mm
3.2 in

-

-
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.

-
Displacement
1.1 l
69 in³

1115 cm³
68 in³

-
Note (1)
Engine power is tested per ISO 14396:2002.
Engine power is tested per ISO 14396:2002.

-

-
Note
Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Net power is tested per ISO 9249:2007 and 80/1269/EEC.

Engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.

-
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC
15.7 kW
21 HP

-

-
Gross Power - SAE J1995:2014
16.1 kW
21.6 HP

-

-
Gross Power
-

17.9 kW
24.3 HP

24.8 kW
33.3 HP
Rated Net Power - ISO 9249
-

15.2 kW
20.7 HP

-
Operating Weight
2262 kg
4987 lb

2830 kg
6239 lb

3508 kg
7734 lb
Maximum Operating Weight with Cab**
2262 kg
4987 lb

-

-
Minimum Operating Weight with Canopy*
1918 kg
4229 lb

-

-
Note (2)
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.

-

-
Maximum Operating Weight with Canopy**
2081 kg
4588 lb

-

-
Minimum Operating Weight with Cab*
2057 kW
4535 lb

-

-
Note (1)
*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.

-

-
Note (3)
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

-

-
EU: CE Plate Weight with Cab***
2140 kg
4718 lb

-

-
EU: CE Plate Weight with Canopy***
2045 kg
4508 lb

-

-
Operating Weight - With Cab
-

2830 kg
6239 lb

3692 kg
8139 lb
Operating Weight - With Canopy
-

2737 kg
6034 lb

-
Dig Depth
2570 mm
101.2 in
Track Belt/Shoe Width
250 mm
9.8 in
Tail Swing
750 mm
29.5 in
Maximum Dump Clearance
2640 mm
103.9 in
Vertical Wall
1940 mm
76.4 in
Boom In Reach
1660 mm
65.4 in
O/A Shipping Height
2300 mm
90.6 in
Maximum Blade Depth
295 mm
11.6 in
Track Width - Retracted
1090 mm
42.9 in
Stick Length
1160 mm
45.7 in
Boom Height - Shipping Position
1020 mm
40.2 in
Maximum Reach
4270 mm
168.1 in
Swing Bearing - Height
442 mm
17.4 in
Boom Swing - Right
50 °
50 °
Track Width - Expanded
1400 mm
55.12 in
Boom Swing - Left
65 °
65 °
Maximum Dig Height
3620 mm
142.5 in
O/A Undercarriage Length
1850 mm
72.8 in
Maximum Blade Height
285 mm
11.2 in
Maximum Reach - Ground Level
4210 mm
165.7 in
Overall Shipping Length*
3880 mm
152.8 in
Minimum Ground Clearance Below Undercarriage
150 mm
5.9 in
Note
*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.
Height
225 mm
8.9 in

290 mm
11.4 in

325 mm
12.8 in
Width*
1090 mm
42.9 in

-

-
Note
*Expanded – 1400 mm (55 in)
*Expanded – 1400 mm (55 in)

-

-
Width
-

1570 mm
61.9 in

1780 mm
70 in
Dig Depth
-

419 mm
16.5 in

470 mm
18.5 in
Lift Height
-

380 mm
15 in

400 mm
15.7 in
Dig Depth
2370 mm
93.3 in
Maximum Dig Height
3550 mm
139.8 in
Track Belt/Shoe Width
250 mm
9.8 in
Tail Swing
750 mm
29.5 in
Boom Height - Shipping Position
1070 mm
42.1 in
O/A Shipping Height
2300 mm
90.6 in
Overall Shipping Length*
3900 mm
153.5 in
Maximum Blade Height
285 mm
11.2 in
Maximum Reach
4110 mm
161.8 in
Track Width - Expanded
1400 mm
55.12 in
Track Width - Retracted
1090 mm
42.9 in
Boom Swing - Right
50 °
50 °
O/A Undercarriage Length
1850 mm
72.8 in
Maximum Reach - Ground Level
4040 mm
159.1 in
Swing Bearing - Height
442 mm
17.4 in
Stick Length
960 mm
37.8 in
Boom Swing - Left
65 °
65 °
Boom In Reach
1660 mm
65.4 in
Maximum Dump Clearance
2560 mm
100.8 in
Minimum Ground Clearance Below Undercarriage
150 mm
5.9 in
Maximum Blade Depth
295 mm
11.6 in
Note
*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.
Vertical Wall
1850 mm
72.8 in
Steel Tracks
60 kg
132 lb
Long Stick
8 kg
18 lb
Expandable Undercarriage
96 kg
212 lb
Top Guard
ISO 10262:1998 (Level I)
ISO 10262:1998 (Level I)
Roll Over Protective Structure (ROPS)
ISO 12117-2:2008
ISO 12117-2:2008
Tip Over Protective Structure (TOPS)
ISO 12117:1997
ISO 12117:1997
Pump Flow at 2,400 rpm
66 l/min
17.4 gal/min

-

-
Digging Force - Stick - Standard
11.3 kN
2540.3 lbf

-

18.9 kN
4249 lb
Auxiliary Circuit - Primary - Flow
33 l/min
8.7 gal/min

-

-
Digging Force - Bucket
19.6 kN
4406.3 lbf

-

33 kN
7419 lb
Auxiliary Circuit - Secondary - Pressure
245 bar
3553.4 psi

-

-
Operating Pressure - Travel
245 bar
3553.4 psi

225 bar
3263 psi

245 bar
3553 psi
Operating Pressure - Equipment
245 bar
3553.4 psi

225 bar
3263 psi

245 bar
3553 psi
Operating Pressure - Swing
147 bar
2132.1 psi

206 bar
2987 psi

181 bar
2625 psi
Digging Force - Stick - Long
9.8 kN
2203.1 lbf

-

16.9 kN
3799 lb
Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Load Sensing Hydraulics with Variable Displacement Piston Pump

-

-
Auxiliary Circuit - Primary - Pressure
245 bar
3553.4 psi

-

-
Auxiliary Circuit - Secondary - Flow
14 l/min
3.7 gal/min

-

-
Maximum Stick Force - Standard/Long
-

15.4 kN/13.6 kN (3,462 lbf/3,057 lbf)
15.4 kN/13.6 kN (3,462 lbf/3,057 lbf)

-
Auxiliary Circuits - Secondary
-

30.8 L/min at 206 bar (8.1 gal/min at 2,988 psi)
30.8 L/min at 206 bar (8.1 gal/min at 2,988 psi)

-
Pump Flow at 2,500 rpm
-

89.4 l/min
23.6 gal/min

-
Maximum Bucket Force
-

22.5 kN
5058 lb

-
Auxiliary Circuits - Primary
-

52.2 L/min at 225 bar (13.8 gal/min at 3,263 psi)
52.2 L/min at 225 bar (13.8 gal/min at 3,263 psi)

-
Auxiliary Circuit - Primary
-

-

60 l/min
15.9 gal/min
Auxiliary Circuit - Secondary
-

-

27 l/min
7.1 gal/min
Machine Swing Speed
9.8 r/min
9.8 r/min

9 r/min
9 r/min
Boom Swing - Left - Without Stop
-

80 °
80 °
Boom Swing - Left - With Stop
-

55 °
55 °
Boom Swing - Right
-

50 °
50 °
Average Exterior Sound Pressure (ISO 6395:2008)
93 dB(A)
93 dB(A)
Note
European Union Directive “2000/14/EC”
European Union Directive “2000/14/EC”
Operator Sound Pressure (ISO 6396:2008)
73 dB(A)
73 dB(A)
Cooling System
3.9 l
1 gal (US)

-

5.5 l
1.5 gal (US)
Hydraulic Tank
18 l
4.8 gal (US)

-

42.3 l
11.2 gal (US)
Hydraulic System
26 l
6.9 gal (US)

-

65 l
17.2 gal (US)
Engine Oil
4.4 l
1.2 gal (US)

-

7 l
1.8 gal (US)
Fuel Tank
26 l
6.9 gal (US)

-

46 l
12.2 gal (US)
Fuel Tank Capacity
-

35.2 l
9.3 gal (US)

-
Hydraulic Tank Capacity
-

26.5 l
7 gal (US)

-
Travel Speed - High
4.4 km/h
2.7 mile/h

-

4.6 km/h
2.8 mile/h
Travel Speed - Low
2.9 km/h
1.8 mile/h

-

2.6 km/h
1.6 mile/h
Maximum Traction Force - Low Speed
20 kN
4496.2 lbf

-

31 kN
6969 lb
Maximum Traction Force - High Speed
13.2 kN
2967.5 lbf

-

16.9 kN
3799 lb
Gradeability - Maximum
30 degrees
30 degrees

-

-
Ground Pressure - Maximum Weight
26.8 kPa
3.9 psi

-

-
Ground Pressure - Minimum Weight
23.7 kPa
3.4 psi

-

-
Gradeability
-

30°/58%
30°/58%

-
Travel Speed
-

2.1 km/h/3.8 km/h (1.30 mph/2.36 mph)
2.1 km/h/3.8 km/h (1.30 mph/2.36 mph)

-
Maximum Digging Depth
2544/2744 mm (8 ft 4 in/9 ft 0 in)
2544/2744 mm (8 ft 4 in/9 ft 0 in)

-
Tail Swing Radius
760 mm
30 in

-
Boom Swing Angle - Left
75 °
75 °

-
Height
2408 mm
7.9 ft

-
Maximum Dig Height
4170/4300 mm (13 ft 8 in/14 ft 1 in)
4170/4300 mm (13 ft 8 in/14 ft 1 in)

-
Transport Length - Arm Lowered
4255 mm
14 ft

-
Maximum Dozer Dig Depth
419 mm
16 in

-
Length - Undercarriage
2006 mm
79 in

-
Track Width
764 mm
30 in

-
Minimum Front Linkage Swing Radius
533 mm
21 in

-
Width
1570 mm
5.15 ft

-
Maximum Dozer Lift Height
380 mm
15 in

-
Maximum Reach - Ground Level
4481/4681 (14 ft 8 in/15 ft 5 in)
4481/4681 (14 ft 8 in/15 ft 5 in)

-
Boom Swing Angle - Right
50 °
50 °

-
Maximum Vertical Dig Depth
1962/2152 mm (6 ft 5 in/7 ft 1 in)
1962/2152 mm (6 ft 5 in/7 ft 1 in)

-
Maximum Reach
4613/4805 mm (15 ft 1 in/15 ft 10 in)
4613/4805 mm (15 ft 1 in/15 ft 10 in)

-
Maximum Dumping Height
2840/2970 mm (9 ft 4 in/9 ft 8 in)
2840/2970 mm (9 ft 4 in/9 ft 8 in)

-
Maximum Digging Depth - Standard Stick
-

2880 mm
9.6 ft
Maximum Reach - Ground Level - Standard Stick
-

5060 mm
16.7 ft
Height - Over Cab
-

2500 mm
8.2 ft
Maximum Horizontal Reach - Standard Stick
-

5200 mm
17.1 ft
Shipping Length
-

4730 mm
15.5 ft
Maximum Vertical Dig Depth - Long Stick
-

2470 mm
8.2 ft
Maximum Dump Height - Long Stick
-

3640 mm
11.9 ft
Maximum Horizontal Reach - Long Stick
-

5440 mm
17.8 ft
Transport Width
-

1780 mm
5.8 ft
Maximum Dump Height - Standard Stick
-

3520 mm
11.5 ft
Maximum Cutting Height - Long Stick
-

5030 mm
16.5 ft
Track Shoe Width
-

300 mm
1 ft
Maximum Cutting Height - Standard Stick
-

4920 mm
16.2 ft
Maximum Vertical Dig Depth - Standard Stick
-

2320 mm
7.7 ft
Shipping Height
-

2500 mm
8.2 ft
Note
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
Standard Stick: Blade Down - Front
992 kg (2,187 lb)*
992 kg (2,187 lb)*
Long Stick and Optional Counterweight: Blade Down - Front
985 kg (2,172 lb)*
985 kg (2,172 lb)*
Long Stick and Optional Counterweight: Blade Down - Side
521 kg (1,149 lb)
521 kg (1,149 lb)
Standard Stick: Blade Down - Side
456 kg (1,005 lb)
456 kg (1,005 lb)
Long Stick and Optional Counterweight: Blade Down - Front
739 kg (1,630 lb)*
739 kg (1,630 lb)*
Standard Stick: Blade Down - Side
351 kg (774 lb)
351 kg (774 lb)
Standard Stick: Blade Down - Front
750 kg (1,654 lb)*
750 kg (1,654 lb)*
Long Stick and Optional Counterweight: Blade Down - Side
402 kg (886 lb)
402 kg (886 lb)
Note
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
Standard Stick: Blade Down - Front
597 kg (1,316 lb)*
597 kg (1,316 lb)*
Note
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
Standard Stick: Blade Down - Side
283 kg (623 lb)
283 kg (623 lb)
Long Stick and Optional Counterweight: Blade Down - Front
591 kg (1,303 lb)*
591 kg (1,303 lb)*
Long Stick and Optional Counterweight: Blade Down - Side
322 kg (711 lb)
322 kg (711 lb)
Standard Stick: Blade Down - Side
252 kg (556 lb)
252 kg (556 lb)
Long Stick and Optional Counterweight: Blade Down - Side
267 kg (588 lb)
267 kg (588 lb)
Long Stick and Optional Counterweight: Blade Down - Front
478 kg (1,054 lb)*
478 kg (1,054 lb)*
Standard Stick: Blade Down - Front
517 kg (1,141 lb)*
517 kg (1,141 lb)*
Note
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
Bore
87 mm
3.4 in
Stroke
102.4 mm
4 in
Displacement
1.8 l
110 in³
MSC Spec Date
3/06
3/06
X
This site uses and sets "cookies" on your computer to help make this website better. By continuing to use this site without changing your settings, you are agreeing to our use of cookies.
Confirm
