Excavators

Compare Models

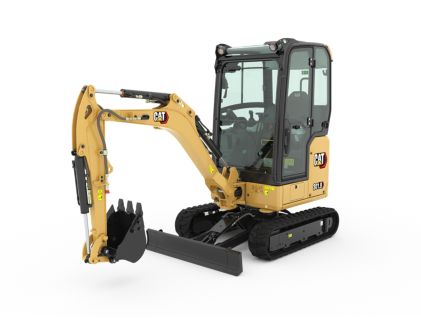

301.8
UNITS:
Metric
Imperial
Net Power
15.7 kW
21 HP

15.7 kW
21 HP

15.2 kW
20.7 HP
Engine Model
C1.1
C1.1

C1.1
C1.1

Yanmar 3TNV76
Yanmar 3TNV76
Stroke
81 mm
3.2 in

81 mm
3.2 in

-
Bore
77 mm
3 in

77 mm
3 in

-
Note (2)
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.

Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.

-
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Displacement
1.1 l
69 in³

1.1 l
69 in³

1115 cm³
68 in³
Note (1)
Engine power is tested per ISO 14396:2002.
Engine power is tested per ISO 14396:2002.

Engine power is tested per ISO 14396:2002.
Engine power is tested per ISO 14396:2002.

-
Note
Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Net power is tested per ISO 9249:2007 and 80/1269/EEC.

Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Net power is tested per ISO 9249:2007 and 80/1269/EEC.

Engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC
15.7 kW
21 HP

15.7 kW
21 HP

-
Gross Power - SAE J1995:2014
16.1 kW
21.6 HP

16.1 kW
21.6 HP

-
Gross Power
-

-

17.9 kW
24.3 HP
Rated Net Power - ISO 9249
-

-

15.2 kW
20.7 HP
Operating Weight
2029 kg
4473 lb

2262 kg
4987 lb

2830 kg
6239 lb
Maximum Operating Weight with Cab**
2029 kg
4473 lb

2262 kg
4987 lb

-
Minimum Operating Weight with Canopy*
1725 kg
3803 lb

1918 kg
4229 lb

-
Maximum Operating Weight with Canopy**
1905 kg
4211 lb

2081 kg
4588 lb

-
Minimum Operating Weight with Cab*
1848 kg
4075 lb

2057 kW
4535 lb

-
Note (2)
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.

**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.

-
Note (1)
*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.

*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.

-
Note (3)
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

-
EU: CE Plate Weight with Cab***
2000 kg
4409 lb

2140 kg
4718 lb

-
EU: CE Plate Weight with Canopy***
1880 kg
4145 lb

2045 kg
4508 lb

-
Operating Weight - With Cab
-

-

2830 kg
6239 lb
Operating Weight - With Canopy
-

-

2737 kg
6034 lb
Dig Depth
2570 mm
101.2 in

2570 mm
101.2 in
Stick Length
1160 mm
45.7 in

1160 mm
45.7 in
Vertical Wall
1940 mm
76.4 in

1940 mm
76.4 in
Maximum Reach - Ground Level
3960 mm
155.9 in

4210 mm
165.7 in
Track Width - Expanded
1300 mm
51.18 in

1400 mm
55.12 in
O/A Undercarriage Length
1590 mm
62.6 in

1850 mm
72.8 in
O/A Shipping Height
2300 mm
90.6 in

2300 mm
90.6 in
Maximum Blade Height
270 mm
10.6 in

285 mm
11.2 in
Overall Shipping Length*
3710 mm
146.1 in

3880 mm
152.8 in
Tail Swing
995 mm
39.2 in

750 mm
29.5 in
Track Width - Retracted
990 mm
39 in

1090 mm
42.9 in
Maximum Blade Depth
265 mm
10.4 in

295 mm
11.6 in
Boom In Reach
1420 mm
55.9 in

1660 mm
65.4 in
Maximum Dump Clearance
2640 mm
103.9 in

2640 mm
103.9 in
Boom Swing - Right
50 °
50 °

50 °
50 °
Maximum Reach
4030 mm
158.7 in

4270 mm
168.1 in
Boom Swing - Left
65 °
65 °

65 °
65 °
Maximum Dig Height
3620 mm
142.5 in

3620 mm
142.5 in
Swing Bearing - Height
442 mm
17.4 in

442 mm
17.4 in
Boom Height - Shipping Position
1020 mm
40.2 in

1020 mm
40.2 in
Minimum Ground Clearance Below Undercarriage
150 mm
5.9 in

150 mm
5.9 in
Note
*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.

*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.
Track Belt/Shoe Width
230 mm
9.1 in

250 mm
9.8 in
Height
225 mm
8.9 in

225 mm
8.9 in

290 mm
11.4 in
Width*
990 mm
39 in

1090 mm
42.9 in

-
Note
*Expanded – 1300 mm (51 in)
*Expanded – 1300 mm (51 in)

*Expanded – 1400 mm (55 in)
*Expanded – 1400 mm (55 in)

-
Width
-

-

1570 mm
61.9 in
Dig Depth
-

-

419 mm
16.5 in
Lift Height
-

-

380 mm
15 in
Travel Speed - Low
2.9 km/h
1.8 mile/h

2.9 km/h
1.8 mile/h

-
Maximum Traction Force - High Speed
11.9 kN
2675.2 lbf

13.2 kN
2967.5 lbf

-
Travel Speed - High
4.4 km/h
2.7 mile/h

4.4 km/h
2.7 mile/h

-
Ground Pressure - Maximum Weight
29.6 kPa
4.3 psi

26.8 kPa
3.9 psi

-
Maximum Traction Force - Low Speed
18.4 kN
4136.5 lbf

20 kN
4496.2 lbf

-
Ground Pressure - Minimum Weight
26.8 kPa
3.9 psi

23.7 kPa
3.4 psi

-
Gradeability - Maximum
30 degrees
30 degrees

30 degrees
30 degrees

-
Gradeability
-

-

30°/58%
30°/58%
Travel Speed
-

-

2.1 km/h/3.8 km/h (1.30 mph/2.36 mph)
2.1 km/h/3.8 km/h (1.30 mph/2.36 mph)
Boom In Reach
1420 mm
55.9 in

1660 mm
65.4 in
Maximum Reach - Ground Level
3800 mm
149.6 in

4040 mm
159.1 in
Maximum Blade Depth
265 mm
10.4 in

295 mm
11.6 in
Stick Length
960 mm
37.8 in

960 mm
37.8 in
Vertical Wall
1850 mm
72.8 in

1850 mm
72.8 in
Boom Height - Shipping Position
1070 mm
42.1 in

1070 mm
42.1 in
Track Width - Expanded
1300 mm
51.18 in

1400 mm
55.12 in
Overall Shipping Length*
3720 mm
146.5 in

3900 mm
153.5 in
Maximum Blade Height
270 mm
10.6 in

285 mm
11.2 in
Boom Swing - Right
50 °
50 °

50 °
50 °
Note
*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.

*Overall Shipping Length depends on blade position during shipment.
*Overall Shipping Length depends on blade position during shipment.
Minimum Ground Clearance Below Undercarriage
150 mm
5.9 in

150 mm
5.9 in
Maximum Reach
3870 mm
152.4 in

4110 mm
161.8 in
Swing Bearing - Height
442 mm
17.4 in

442 mm
17.4 in
Maximum Dig Height
3550 mm
139.8 in

3550 mm
139.8 in
Track Belt/Shoe Width
230 mm
9.1 in

250 mm
9.8 in
Tail Swing
995 mm
39.2 in

750 mm
29.5 in
Boom Swing - Left
65 °
65 °

65 °
65 °
Track Width - Retracted
990 mm
39 in

1090 mm
42.9 in
O/A Undercarriage Length
1590 mm
62.6 in

1850 mm
72.8 in
Maximum Dump Clearance
2560 mm
100.8 in

2560 mm
100.8 in
O/A Shipping Height
2300 mm
90.6 in

2300 mm
90.6 in
Dig Depth
2370 mm
93.3 in

2370 mm
93.3 in
Operating Pressure - Equipment
245 bar
3553.4 psi

245 bar
3553.4 psi

225 bar
3263 psi
Auxiliary Circuit - Secondary - Flow
14 l/min
3.7 gal/min

14 l/min
3.7 gal/min

-
Digging Force - Bucket
19.6 kN
4406.3 lbf

19.6 kN
4406.3 lbf

-
Operating Pressure - Travel
245 bar
3553.4 psi

245 bar
3553.4 psi

225 bar
3263 psi
Digging Force - Stick - Long
9.8 kN
2203.1 lbf

9.8 kN
2203.1 lbf

-
Auxiliary Circuit - Secondary - Pressure
245 bar
3553.4 psi

245 bar
3553.4 psi

-
Operating Pressure - Swing
147 bar
2132.1 psi

147 bar
2132.1 psi

206 bar
2987 psi
Auxiliary Circuit - Primary - Flow
33 l/min
8.7 gal/min

33 l/min
8.7 gal/min

-
Pump Flow at 2,400 rpm
66 l/min
17.4 gal/min

66 l/min
17.4 gal/min

-
Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Load Sensing Hydraulics with Variable Displacement Piston Pump

Load Sensing Hydraulics with Variable Displacement Piston Pump
Load Sensing Hydraulics with Variable Displacement Piston Pump

-
Digging Force - Stick - Standard
11.3 kN
2540.3 lbf

11.3 kN
2540.3 lbf

-
Auxiliary Circuit - Primary - Pressure
245 bar
3553.4 psi

245 bar
3553.4 psi

-
Maximum Stick Force - Standard/Long
-

-

15.4 kN/13.6 kN (3,462 lbf/3,057 lbf)
15.4 kN/13.6 kN (3,462 lbf/3,057 lbf)
Auxiliary Circuits - Secondary
-

-

30.8 L/min at 206 bar (8.1 gal/min at 2,988 psi)
30.8 L/min at 206 bar (8.1 gal/min at 2,988 psi)
Pump Flow at 2,500 rpm
-

-

89.4 l/min
23.6 gal/min
Maximum Bucket Force
-

-

22.5 kN
5058 lb
Auxiliary Circuits - Primary
-

-

52.2 L/min at 225 bar (13.8 gal/min at 3,263 psi)
52.2 L/min at 225 bar (13.8 gal/min at 3,263 psi)
Tip Over Protective Structure (TOPS)
ISO 12117:1997
ISO 12117:1997

ISO 12117:1997
ISO 12117:1997
Roll Over Protective Structure (ROPS)
ISO 12117-2:2008
ISO 12117-2:2008

ISO 12117-2:2008
ISO 12117-2:2008
Top Guard
ISO 10262:1998 (Level I)
ISO 10262:1998 (Level I)

ISO 10262:1998 (Level I)
ISO 10262:1998 (Level I)
Cooling System
3.9 l
1 gal (US)

3.9 l
1 gal (US)

-
Hydraulic Tank
18 l
4.8 gal (US)

18 l
4.8 gal (US)

-
Engine Oil
4.4 l
1.2 gal (US)

4.4 l
1.2 gal (US)

-
Fuel Tank
26 l
6.9 gal (US)

26 l
6.9 gal (US)

-
Hydraulic System
26 l
6.9 gal (US)

26 l
6.9 gal (US)

-
Fuel Tank Capacity
-

-

35.2 l
9.3 gal (US)
Hydraulic Tank Capacity
-

-

26.5 l
7 gal (US)
Operator Sound Pressure (ISO 6396:2008)
73 dB(A)
73 dB(A)

73 dB(A)
73 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)
93 dB(A)
93 dB(A)

93 dB(A)
93 dB(A)
Note
European Union Directive “2000/14/EC”
European Union Directive “2000/14/EC”

European Union Directive “2000/14/EC”
European Union Directive “2000/14/EC”
Steel Tracks
50 kg
110 lb

60 kg
132 lb
Long Stick
8 kg
18 lb

8 kg
18 lb
Expandable Undercarriage
123 kg
271 lb

96 kg
212 lb
Machine Swing Speed
9.8 r/min
9.8 r/min

9.8 r/min
9.8 r/min
Maximum Digging Depth
2544/2744 mm (8 ft 4 in/9 ft 0 in)
2544/2744 mm (8 ft 4 in/9 ft 0 in)
Tail Swing Radius
760 mm
30 in
Boom Swing Angle - Left
75 °
75 °
Height
2408 mm
7.9 ft
Maximum Dig Height
4170/4300 mm (13 ft 8 in/14 ft 1 in)
4170/4300 mm (13 ft 8 in/14 ft 1 in)
Transport Length - Arm Lowered
4255 mm
14 ft
Maximum Dozer Dig Depth
419 mm
16 in
Length - Undercarriage
2006 mm
79 in
Track Width
764 mm
30 in
Minimum Front Linkage Swing Radius
533 mm
21 in
Width
1570 mm
5.15 ft
Maximum Dozer Lift Height
380 mm
15 in
Maximum Reach - Ground Level
4481/4681 (14 ft 8 in/15 ft 5 in)
4481/4681 (14 ft 8 in/15 ft 5 in)
Boom Swing Angle - Right
50 °
50 °
Maximum Vertical Dig Depth
1962/2152 mm (6 ft 5 in/7 ft 1 in)
1962/2152 mm (6 ft 5 in/7 ft 1 in)
Maximum Reach
4613/4805 mm (15 ft 1 in/15 ft 10 in)
4613/4805 mm (15 ft 1 in/15 ft 10 in)
Maximum Dumping Height
2840/2970 mm (9 ft 4 in/9 ft 8 in)
2840/2970 mm (9 ft 4 in/9 ft 8 in)
Note
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
Standard Stick: Blade Down - Front
992 kg (2,187 lb)*
992 kg (2,187 lb)*
Long Stick and Optional Counterweight: Blade Down - Front
985 kg (2,172 lb)*
985 kg (2,172 lb)*
Long Stick and Optional Counterweight: Blade Down - Side
521 kg (1,149 lb)
521 kg (1,149 lb)
Standard Stick: Blade Down - Side
456 kg (1,005 lb)
456 kg (1,005 lb)
Long Stick and Optional Counterweight: Blade Down - Front
739 kg (1,630 lb)*
739 kg (1,630 lb)*
Standard Stick: Blade Down - Side
351 kg (774 lb)
351 kg (774 lb)
Standard Stick: Blade Down - Front
750 kg (1,654 lb)*
750 kg (1,654 lb)*
Long Stick and Optional Counterweight: Blade Down - Side
402 kg (886 lb)
402 kg (886 lb)
Note
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
Standard Stick: Blade Down - Front
597 kg (1,316 lb)*
597 kg (1,316 lb)*
Note
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
Standard Stick: Blade Down - Side
283 kg (623 lb)
283 kg (623 lb)
Long Stick and Optional Counterweight: Blade Down - Front
591 kg (1,303 lb)*
591 kg (1,303 lb)*
Long Stick and Optional Counterweight: Blade Down - Side
322 kg (711 lb)
322 kg (711 lb)
Standard Stick: Blade Down - Side
252 kg (556 lb)
252 kg (556 lb)
Long Stick and Optional Counterweight: Blade Down - Side
267 kg (588 lb)
267 kg (588 lb)
Long Stick and Optional Counterweight: Blade Down - Front
478 kg (1,054 lb)*
478 kg (1,054 lb)*
Standard Stick: Blade Down - Front
517 kg (1,141 lb)*
517 kg (1,141 lb)*
Note
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
* The loads listed are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included here.
X
This site uses and sets "cookies" on your computer to help make this website better. By continuing to use this site without changing your settings, you are agreeing to our use of cookies.
Confirm
