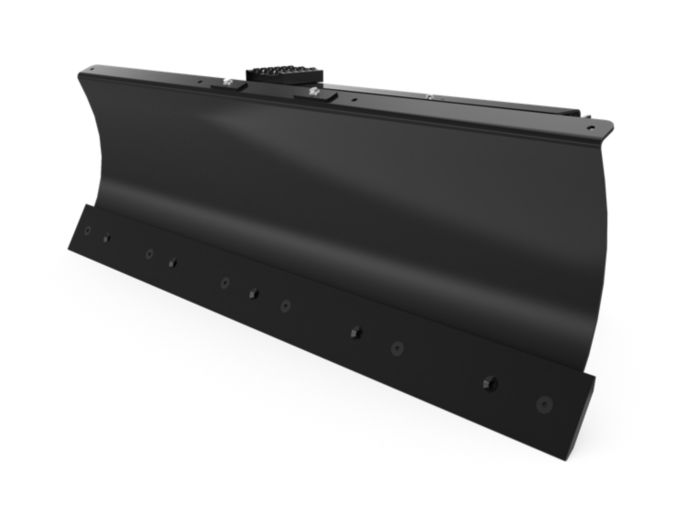

Blades
1829 mm (72 in)
Robust, high capacity design for moving dirt, gravel, livestock waste and snow.
Request a quote
Overview
Cat® Angle Blades are useful work tools in a wide range of applications for moving dirt, gravel, livestock waste and snow. They are also useful for finish grade work in construction and landscaping.
UNITS:
Metric
Imperial
| Blade Width | 1829 mm | 72 in |
| Width - Fully Angled | 1685 mm | 66.3 in |
| Maximum Blade Angle - Right/Left of Center | 30 degrees | 30 degrees |
| Blade Height | 614 mm | 24.2 in |
| Cutting Edge Width | 1893 mm | 74.5 in |
| Length | 753 mm | 29.6 in |
| Weight | 313 kg | 690 lb |
| Cutting Edge Thickness | 16 mm | 0.6 in |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) | 145-235 bar (2100-3400 psi) |
| Required Hydraulics | Standard Flow | Standard Flow |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
Features
Application
Designed for moving dirt, gravel, livestock waste and snow. Also ideal for finish grade work in construction and landscaping applications.
Two-Way Blade
Two-way blade can be operated with the blade locked for aggressive dozing or with spring-loaded trip engaged for pushing snow or livestock waste.
Angle Range
Blade angles +/- 30 degrees to assist in various tasks.
Curved Moldboard
Curved moldboard with standard reversible/replaceable bolt-on, hardened DH-2 steel cutting edge delivers long life and high performance.
Adjustable Skid Shoes
Adjustable skid shoes reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting-edge depth.
Spherical Rod Eye Cylinder
Spherical rod eye cylinder adds another degree of movement to jointed section for better impact protection.
Four Pre-loaded Springs
Four pre-loaded springs provide appropriate force with spring-loaded trip engaged. Springs can be removed individually to accommodate a lighter trip.
Adjustable Interface
Allows for proper ground interface with different hinge pin heights on compact wheel loaders, skid steer and compact track loaders.
Optional Snow Kit
Optional snow kit with heavy-duty guard assembly, two edge markers and mounting hardware.
Optional Non-Metallic Blade
Optional bolt-on, non-metallic edge reduces surface scratches or marring of concrete and asphalt surfaces.
