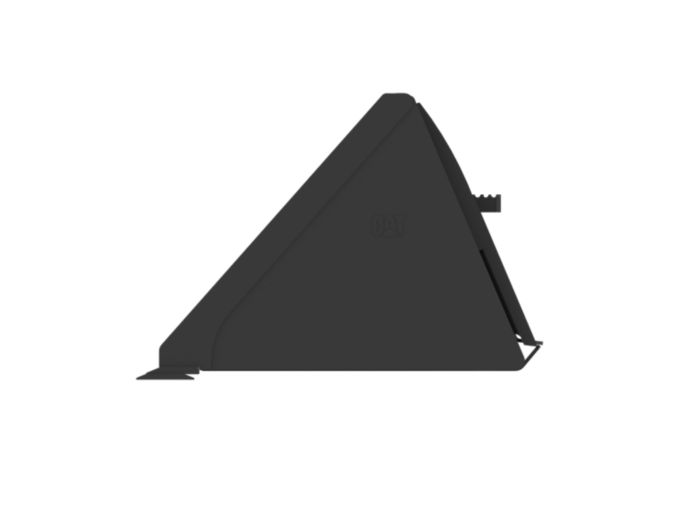

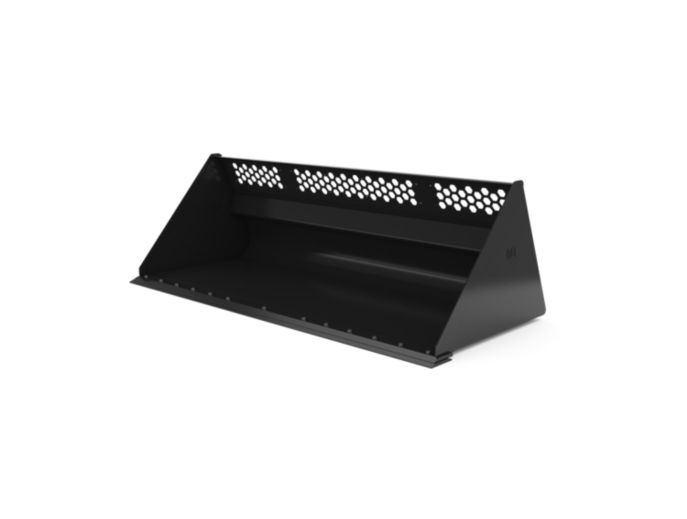

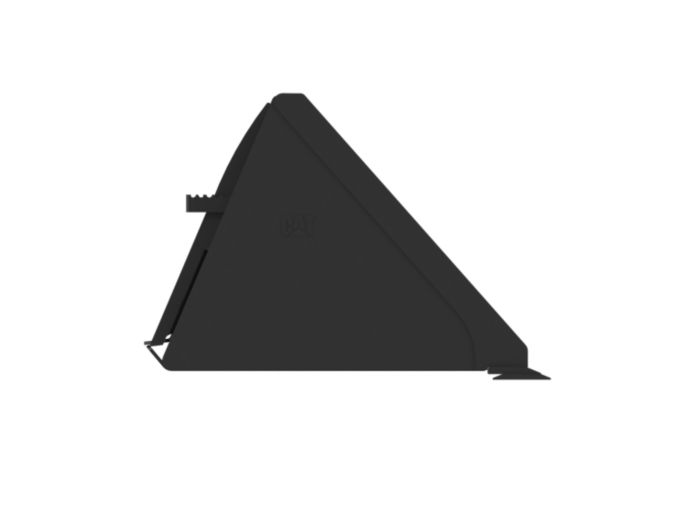

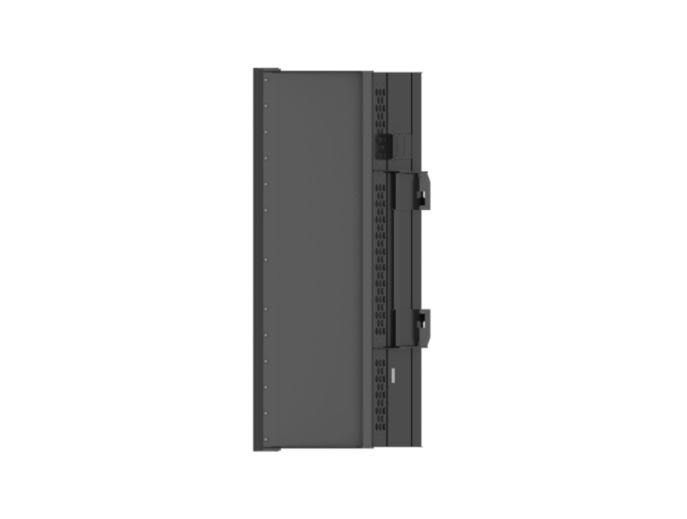

Buckets - Skid Steer Loader

2490 mm (98 in), Bolt-On Cutting Edge

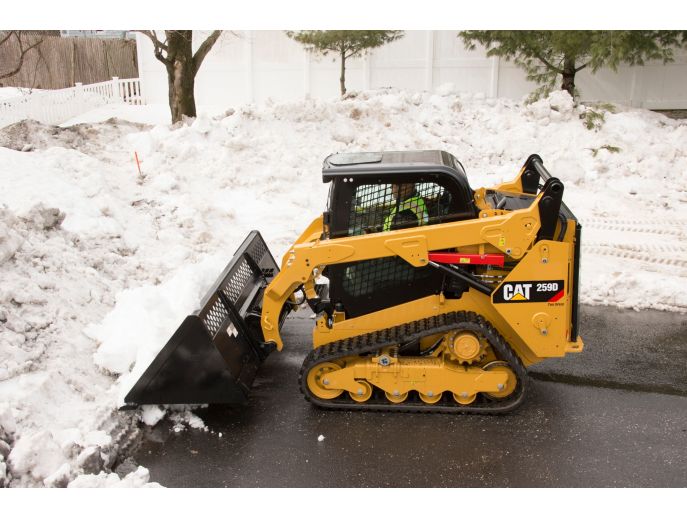

Used to load and carry large volumes of ultra-low density material in a variety of applications.

Overview

Cat® Material Handling Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for loading, carrying, dumping and handling light, loosely packed material in agricultural and landscaping applications. They are specifically for applications where a larger capacity than Light Material Buckets is needed.

UNITS:

Metric

Imperial

Width	2490 mm	98 in
Capacity	1.25 m³	1.63 yd³
Weight	400 kg	882 lb
Height	814 mm	32 in
Length	1156 mm	45.5 in
Base Edge Thickness	19 mm	0.7 in
Cutting Edge Thickness	16 mm	0.6 in
Interface Type	Skid Steer Coupler	Skid Steer Coupler

Features

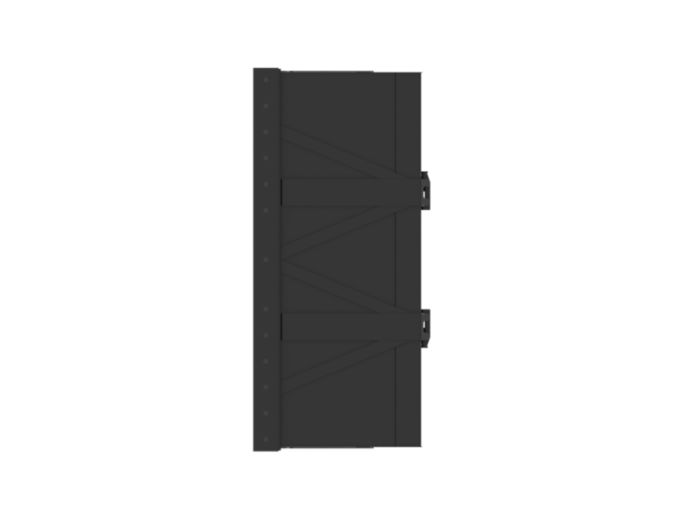

Rigid Bucket Floor

Material Handling Buckets incorporate underside support straps to elongate the life of the bucket and ensure minimal wear to the wrapper sheet.

Integrated Step

Integrating a serrated step onto the side of the bucket ensures safe entry and exit from the machine cab without having to step over the center of the work tool.

Bolt-On Cutting Edge

Bolt-On cutting edges ensure a ground engaging wear surface that is easily replaced when needed, prolonging the life of the bucket.

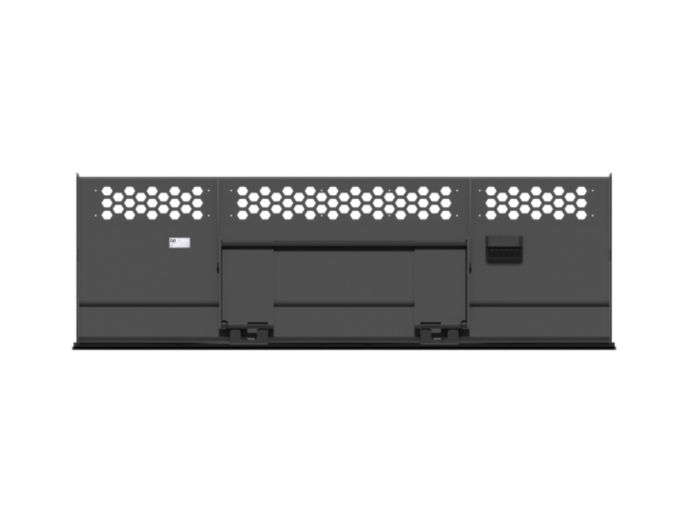

Torque Tube for Increased Rigidity

A large torque tube located on the back side of the bucket ensures that it can withstand machine forces and large capacity loads.

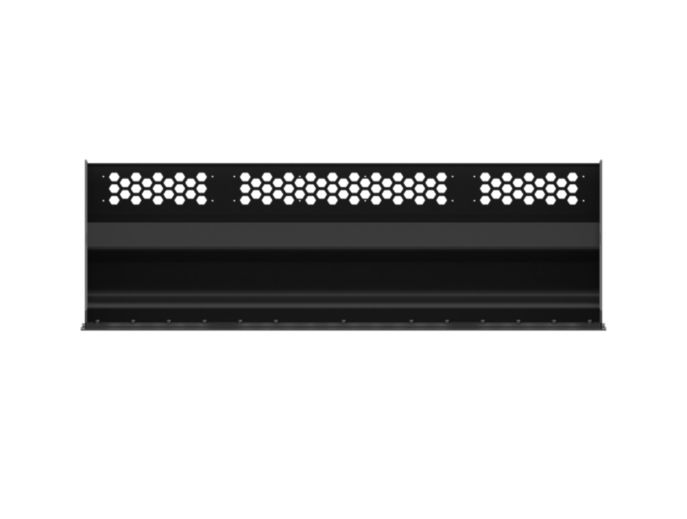

Visibility Honeycomb

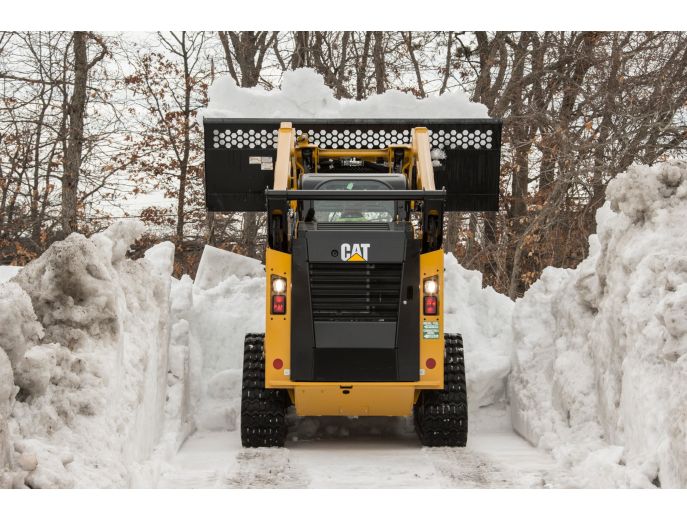

Located above the Torque Tube structural support, the honeycomb visibility section allows the operator to easily view the cutting edge to ensure accurate placement and loading.
