Couplers - Excavator

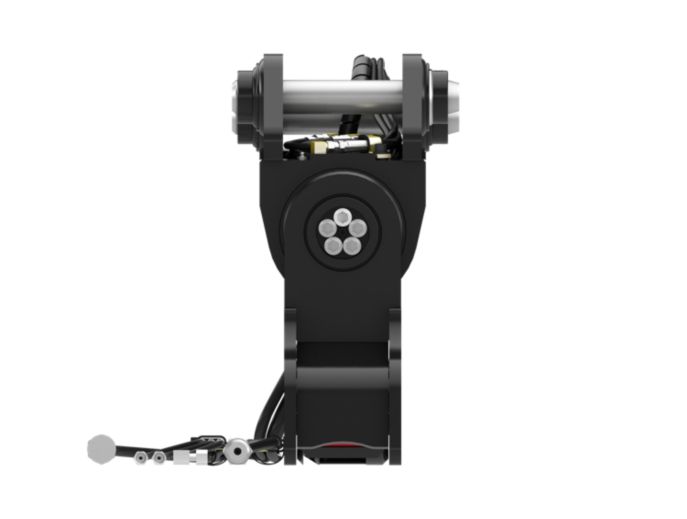

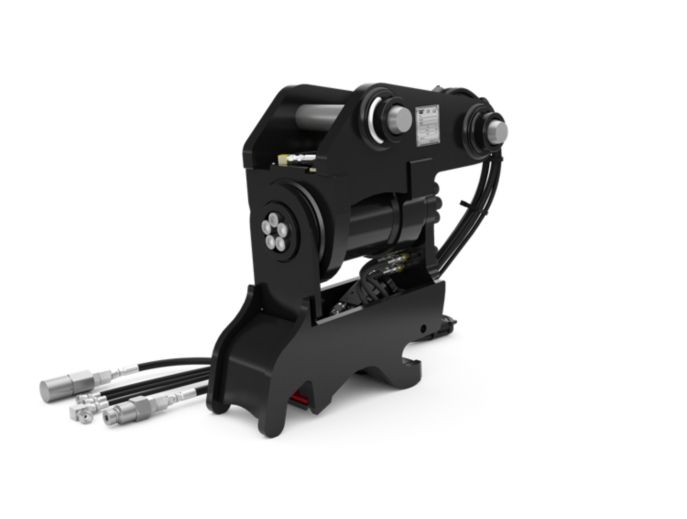

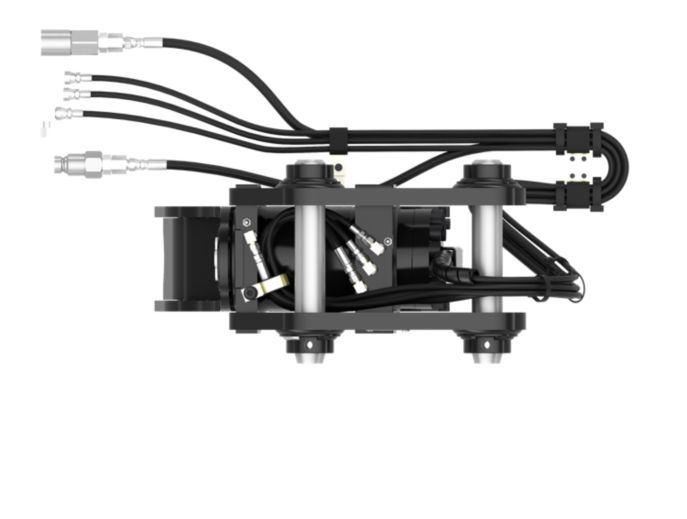

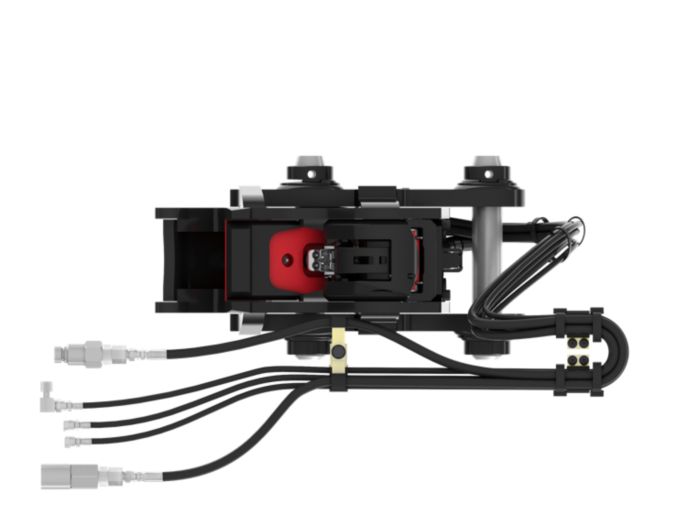

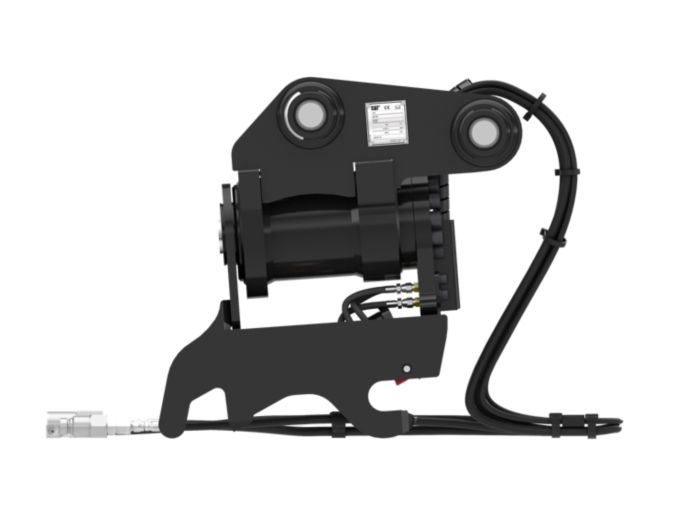

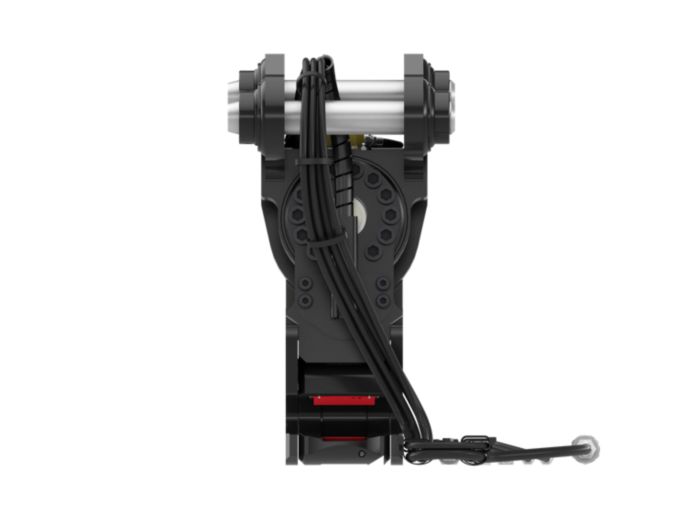

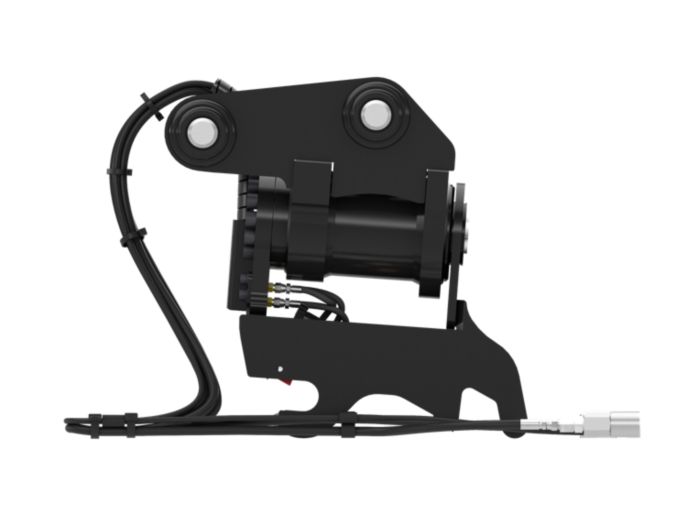

5 Ton Mini Excavators Tilting Dual Lock Pin Grabber
Provides increased productivity and cost saving benefits to customers. Operators have the ability to tilt compatible work tools for more efficient jobsite versatility and productivity.
Request a quote
Overview
Cat® Tilting Dual Lock Pin Grabber Couplers - Mini Excavator allow work tools to be changed quickly - improving overall production and increasing machine versatility. The Tilting Dual Lock Coupler maintains a tight fit with an innovative wedge design throughout the life of the coupler. It can be used with compatible pin-on work tools and in front shovel mode with buckets. The Tilting Dual Lock Coupler also comes with a visible locking mechanism for added security.
UNITS:
Metric
Imperial
| Weight | 116 kg | 255.7 lb |
| Overall Width | 298 mm | 11.7 in |
| Length | 574 mm | 22.6 in |
| Overall Height | 546 mm | 21.5 in |
| Drive Method | Helical Rotary Actuator | Helical Rotary Actuator |
| Hydraulic Flow | 7.6-15.1 lpm (2-4 gpm) | 7.6-15.1 lpm (2-4 gpm) |
| Hydraulic Pressure - Actuator | 207 bar | 3002.3 psi |
| Hydraulic Pressure - Coupler | 252 bar | 3655 psi |
| Pin Diameter | 45 mm | 1.8 in |
| Machine Class | 5 Ton Mini Excavators | 5 Ton Mini Excavators |
| Interface Type | Pin On | Pin On |
| Required Hydraulics | Dedicated Factory Installed | Dedicated Factory Installed |
| Tilt Angle Range +/- | 180 degrees | 180 degrees |
Overview
Cat® Tilting Dual Lock Pin Grabber Couplers - Mini Excavator allow work tools to be changed quickly - improving overall production and increasing machine versatility. The Tilting Dual Lock Coupler maintains a tight fit with an innovative wedge design throughout the life of the coupler. It can be used with compatible pin-on work tools and in front shovel mode with buckets. The Tilting Dual Lock Coupler also comes with a visible locking mechanism for added security.
UNITS:
Metric
Imperial
| Weight | 116 kg | 255.7 lb |
| Overall Width | 298 mm | 11.7 in |
| Length | 574 mm | 22.6 in |
| Overall Height | 546 mm | 21.5 in |
| Drive Method | Helical Rotary Actuator | Helical Rotary Actuator |
| Hydraulic Flow | 7.6-15.1 lpm (2-4 gpm) | 7.6-15.1 lpm (2-4 gpm) |
| Hydraulic Pressure - Actuator | 207 bar | 3002.3 psi |
| Hydraulic Pressure - Coupler | 252 bar | 3655 psi |
| Pin Diameter | 45 mm | 1.8 in |
| Machine Class | 5 Ton Mini Excavators | 5 Ton Mini Excavators |
| Interface Type | Pin On | Pin On |
| Required Hydraulics | Dedicated Factory Installed | Dedicated Factory Installed |
| Tilt Angle Range +/- | 180 degrees | 180 degrees |
