Forks

1524 mm (60 in), Fusion™ Coupler

Stack, carry and sort piles of lumber.

Specifications
Features

Overview

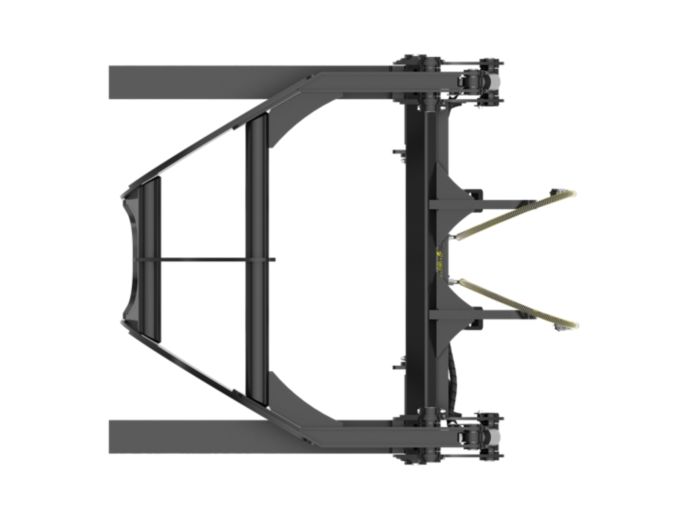

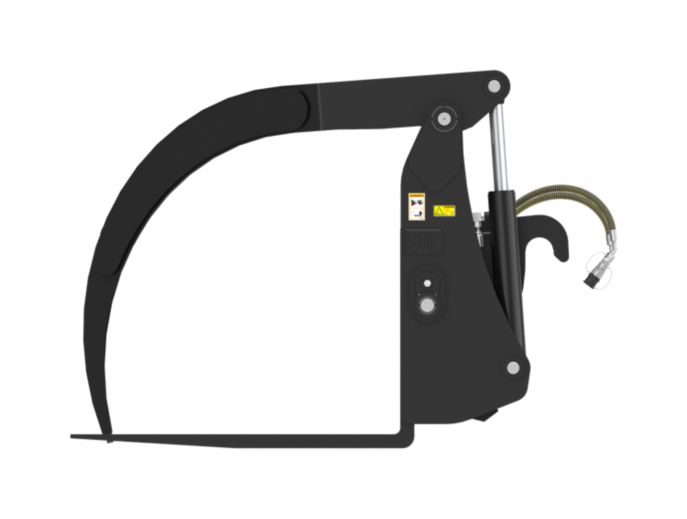

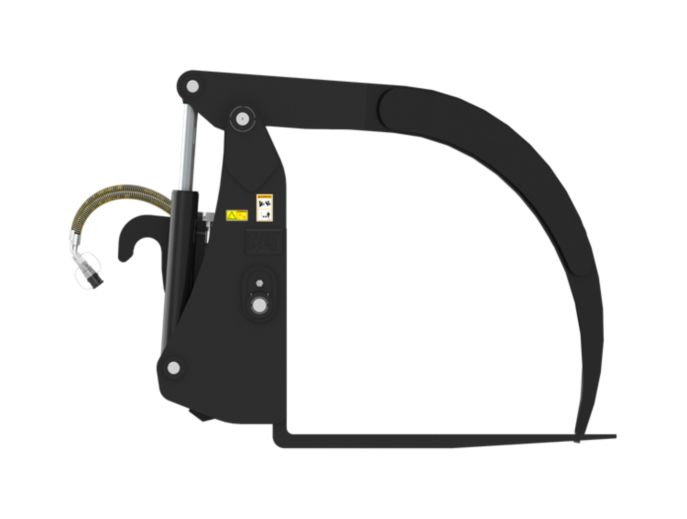

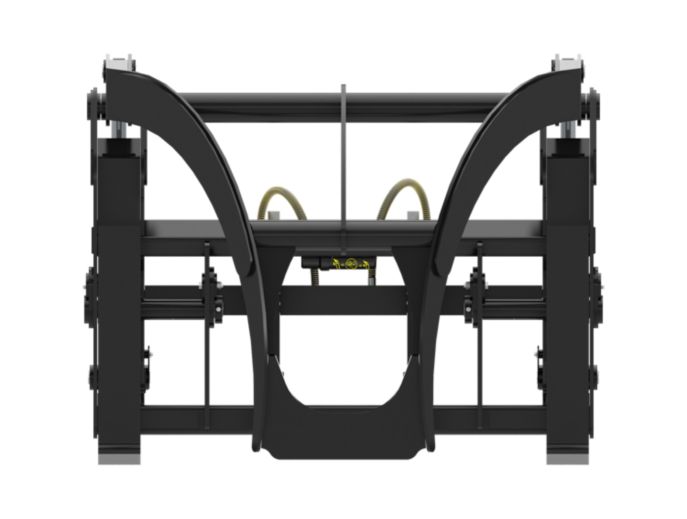

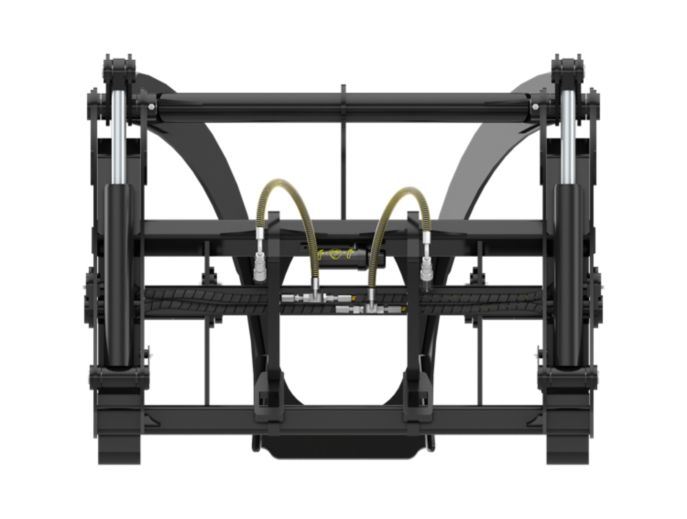

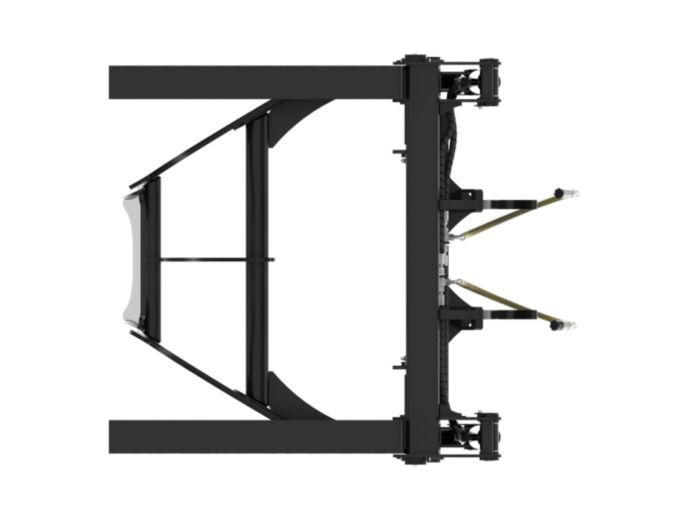

The Cat® Semi Millyard Forks for Small Wheel Loaders are designed to efficiently load and unload from trucks, capably sort pole and decking materials, effectively feed sawmills as well as handle other long or bulky material.

UNITS:

Metric

Imperial

Width	2134 mm	84 in
Tine Spacing - Maximum Width	2086 mm	82.1 in
Tine Spacing - Minimum Width	1547 mm	60.9 in
Tine Length	1524 mm	60 in
Tine Width	152 mm	6 in
Maximum Clamp Opening	2510 mm	98.8 in
Minimum Clamp Opening	152 mm	6 in
Weight	2099 kg	4627.5 lb
Interface Type	Fusion™ Coupler	Fusion™ Coupler

Features

Application

Efficiently unload and load from trucks, capably sort pole and decking inventory in the yard, effectively feed sawmills and handle other long or bulky material.

90 Degree Flat Back Tines

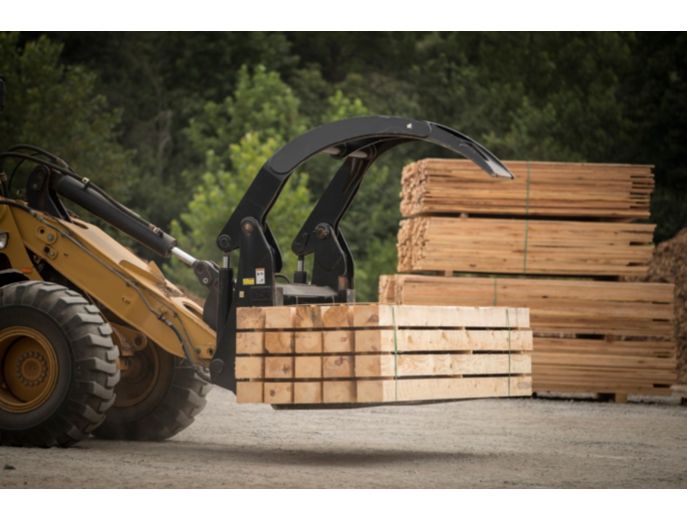

90 degree flat back tines allows for carrying palletized lumber and other items as well as loose logs.

Adjustable Tine Spacing

Adjustable tines can be configured to 9 different spacing setups, allowing for complete flexibility to your particular applications.

Narrow Top Clamp

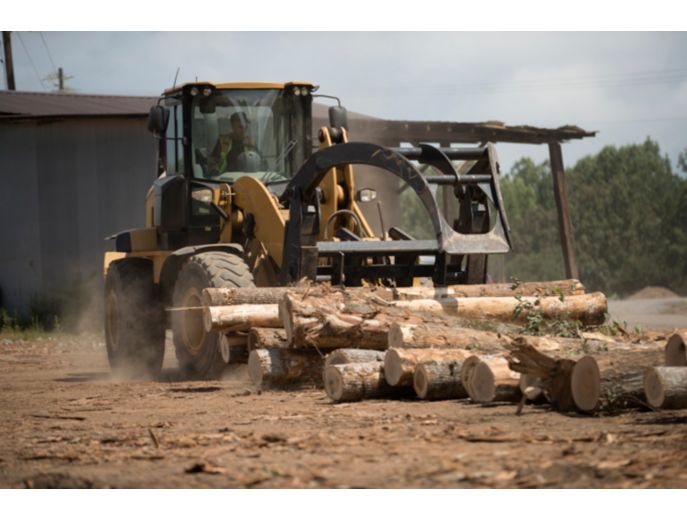

Narrow top clamp is designed to close between the tines, which would allow the operator to clamp tightly on a single log.

Floating/Non-Floating Tines

Floating/non-floating tines are adjustable to 3 different spacing configurations, and can be locked, or setup to float.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, holder includes all operation manuals and maintenance guides required for proper operation of the work tool.
