Overview

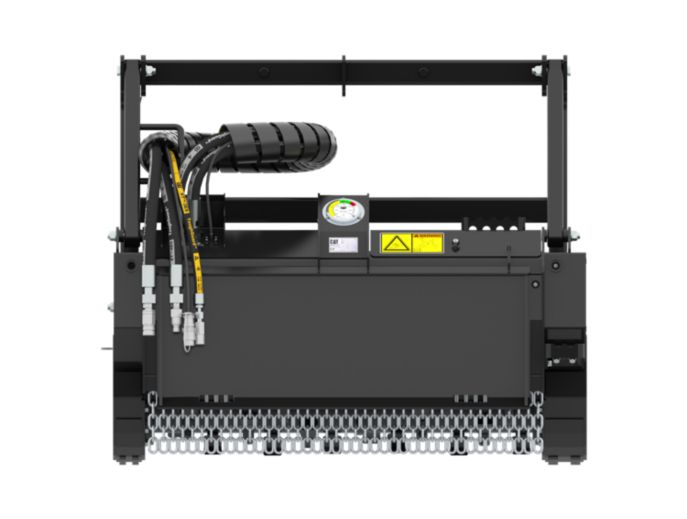

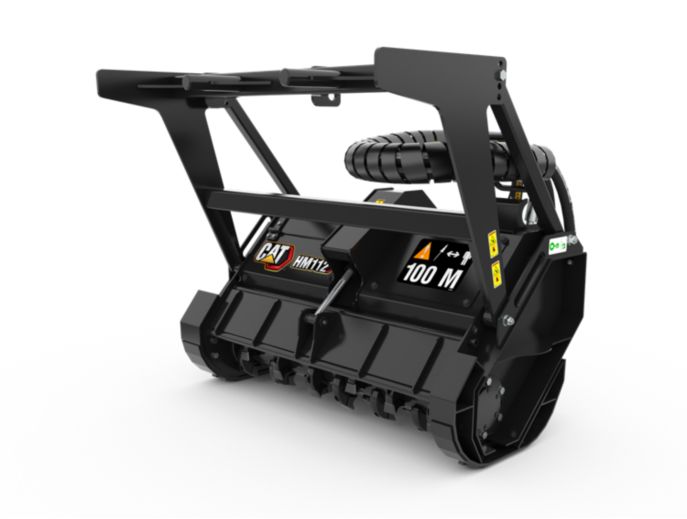

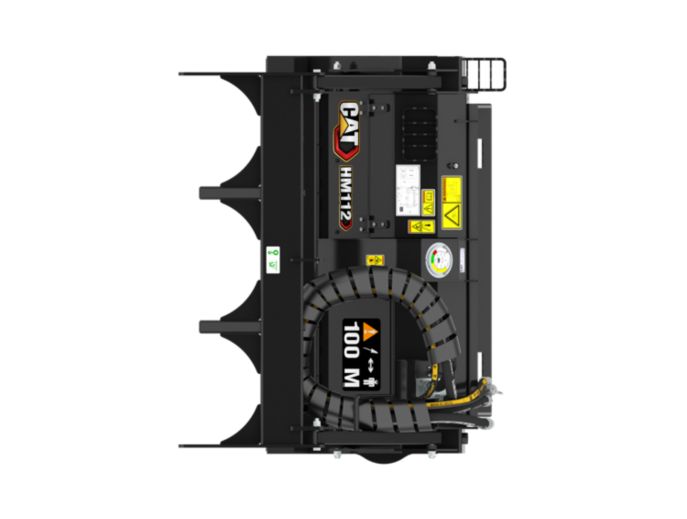

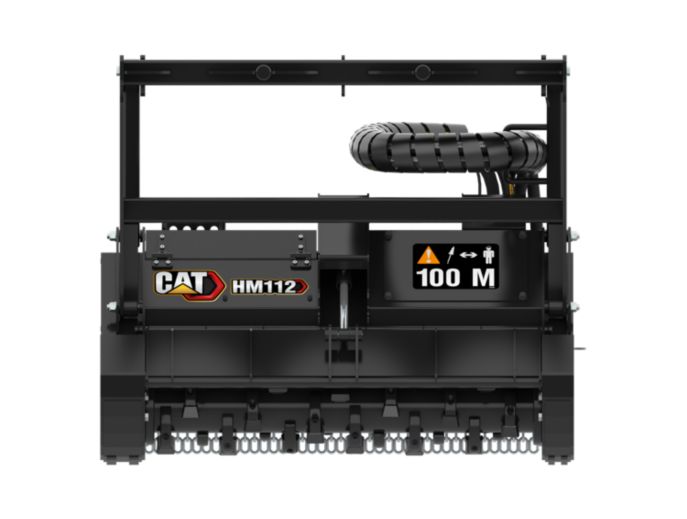

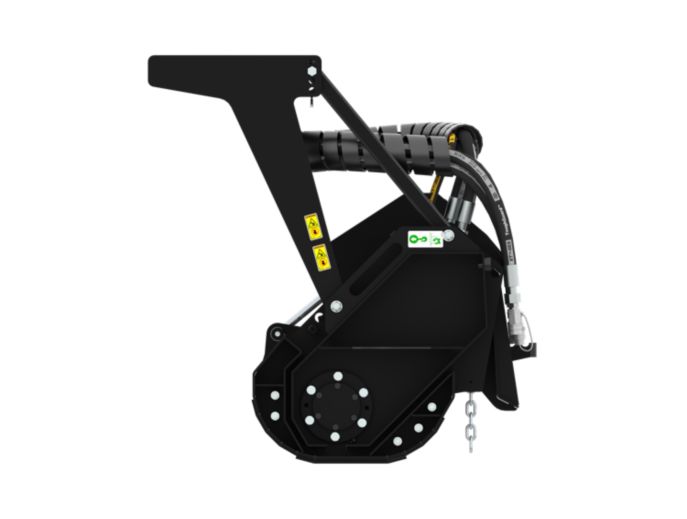

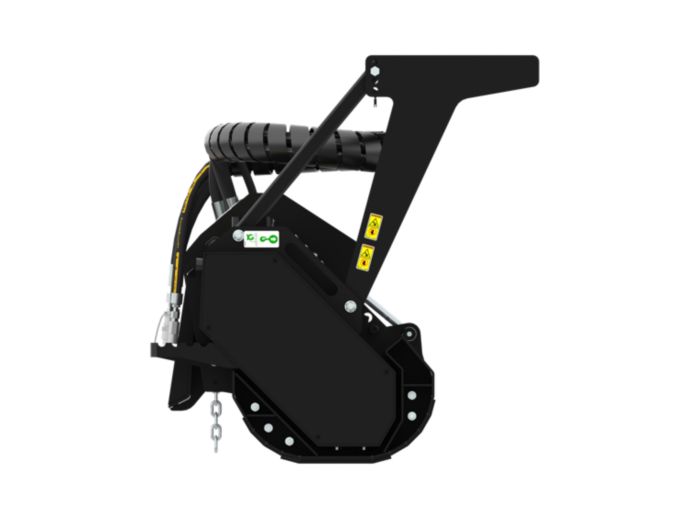

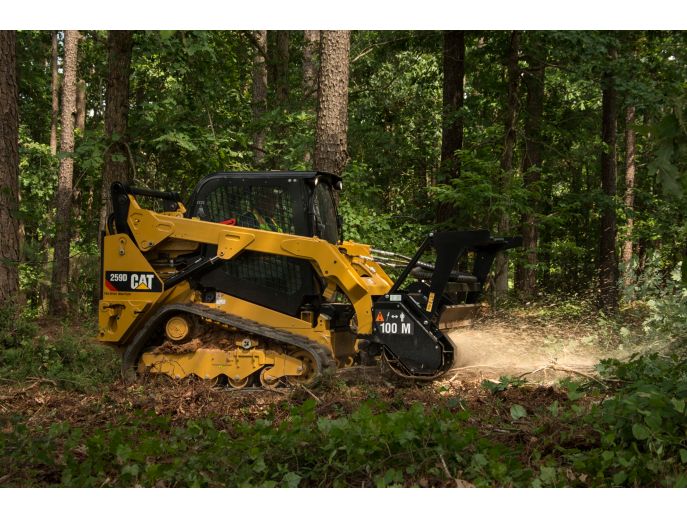

Cat® Mulchers for Skid Steer Loaders and Compact Track Loaders are designed for high-performance cutting and mulching vegetation and undergrowth from forested terrain. The hydraulic mulcher reduces saplings, shrubs and trees into mulched material, making it ideal for environmental maintenance, such as creating fire lanes. Other applications include land reclamation, foliage removal from building construction sites, and shredding pruned material and organic waste for biomass production.
UNITS:
Metric
Imperial
| Overall Width | 1518 mm | 59.8 in |
| Working Width | 1240 mm | 48.8 in |
| Length | 1219 mm | 48 in |
| Overall Height | 1281 mm | 50.4 in |
| Weight | 763 kg | 1682.1 lb |
| Drive Method | V-Belt | V-Belt |
| Motor | Axial Piston Dual Speed | Axial Piston Dual Speed |
| Required Hydraulics | Standard Flow | Standard Flow |
| Optimal Hydraulic Flow | 60-69 L/min (16-18 gpm) | 60-69 L/min (16-18 gpm) |
| Optimal Hydraulic Pressure | 200-230 bar (2900-3336 psi) | 200-230 bar (2900-3336 psi) |
| Drum Speed | 2670-3070 RPM | 2670-3070 RPM |
| Fixed Teeth per Drum | 30 | 30 |
| Maximum Cutting Diameter | 200 mm | 7.9 in |
| Maximum Cutting Depth | 70 mm | 2.8 in |
Features
Application

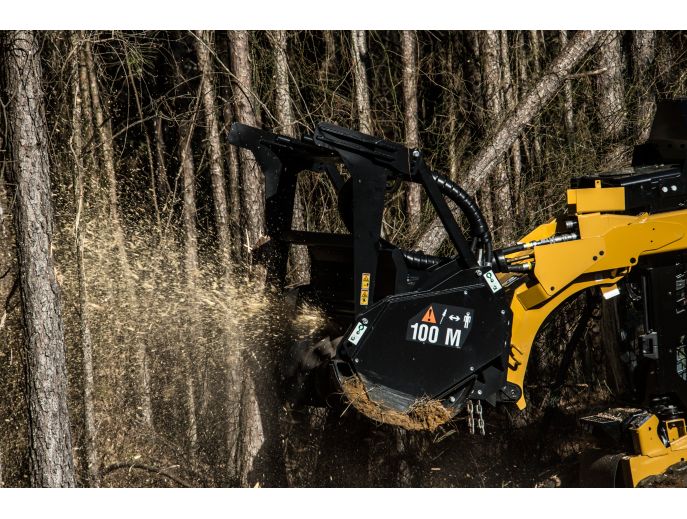

Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.High Performance Mulching
Designed for high-performance cutting, and mulching vegetation and undergrowth from typical wooded terrain. Reduces saplings, shrubs and trees into mulched material.Rugged Mulching Head

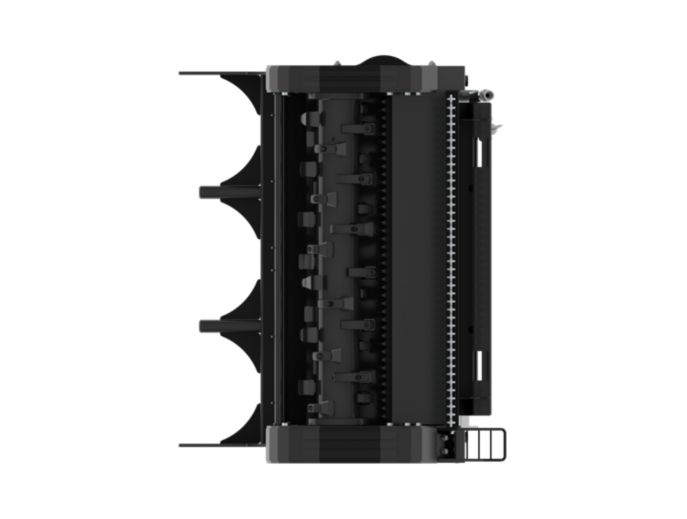

Rugged mulching head processes trees up to 200 mm (8 in) diameter for effective land clearing applications.Dual Speed Hydraulic Motor
Dual speed, axial piston motor provides smooth, efficient performance while delivering optimal torque under changing material loads.Adjustable Push Frame
Standard adjustable push frame allows for control of trees for optimal cutting and efficiency. Low profile design improves operator visibility and pin-style segments provide the opportunity to control which section of teeth are cutting, improving tooth life.Color-Coded Pressure Gauge
Color-coded pressure gauge is standard equipment that provides operator feedback in order to maximize productivity. With green, yellow, and red regions, the operator has indication of the load being applied to the mulcher and if adjustments can be made to maximize productivity in changing material loads.Hydraulically Operated Front Hood
Hydraulically operated front hood is standard. Linkage is enclosed within mulcher frame on High Flow models. Quick to open and close door allows for finer finished material to be produced from cutting all types of vegetation.Rear Chain Guard Protection
Rear chain guard protection reduces spread of material.Serrated Steps
Serrated steps allow for safe and easy access in and out of the cab.Lockable Service Panel
Hinged and lockable service panel allows easy access to hoses. Lockable with your Cat key, the service panel allows easy access to drive train components during service and inspection.Replaceable Skid Shoes
Replaceable skid shoes allow for quick replacement when worn from use.Tool Mounted Operation and Maintenance Manual (OMM) Holder
Located inside the lockable service panel and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.Multiple Teeth Options
Select from Standard Carbide, Rock Resistant, Chisel, and Side Cutter options to configure the C Series Mulcher to any underfoot or vegetation condition.Downloads
Overview
Cat® Mulchers for Skid Steer Loaders and Compact Track Loaders are designed for high-performance cutting and mulching vegetation and undergrowth from forested terrain. The hydraulic mulcher reduces saplings, shrubs and trees into mulched material, making it ideal for environmental maintenance, such as creating fire lanes. Other applications include land reclamation, foliage removal from building construction sites, and shredding pruned material and organic waste for biomass production.
UNITS:
Metric
Imperial
| Overall Width | 1518 mm | 59.8 in |
| Working Width | 1240 mm | 48.8 in |
| Length | 1219 mm | 48 in |
| Overall Height | 1281 mm | 50.4 in |
| Weight | 763 kg | 1682.1 lb |
| Drive Method | V-Belt | V-Belt |
| Motor | Axial Piston Dual Speed | Axial Piston Dual Speed |
| Required Hydraulics | Standard Flow | Standard Flow |
| Optimal Hydraulic Flow | 60-69 L/min (16-18 gpm) | 60-69 L/min (16-18 gpm) |
| Optimal Hydraulic Pressure | 200-230 bar (2900-3336 psi) | 200-230 bar (2900-3336 psi) |
| Drum Speed | 2670-3070 RPM | 2670-3070 RPM |
| Fixed Teeth per Drum | 30 | 30 |
| Maximum Cutting Diameter | 200 mm | 7.9 in |
| Maximum Cutting Depth | 70 mm | 2.8 in |
Features
Application
Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.High Performance Mulching
Designed for high-performance cutting, and mulching vegetation and undergrowth from typical wooded terrain. Reduces saplings, shrubs and trees into mulched material.Rugged Mulching Head
Rugged mulching head processes trees up to 200 mm (8 in) diameter for effective land clearing applications.Dual Speed Hydraulic Motor
Dual speed, axial piston motor provides smooth, efficient performance while delivering optimal torque under changing material loads.Adjustable Push Frame
Standard adjustable push frame allows for control of trees for optimal cutting and efficiency. Low profile design improves operator visibility and pin-style segments provide the opportunity to control which section of teeth are cutting, improving tooth life.Color-Coded Pressure Gauge
Color-coded pressure gauge is standard equipment that provides operator feedback in order to maximize productivity. With green, yellow, and red regions, the operator has indication of the load being applied to the mulcher and if adjustments can be made to maximize productivity in changing material loads.Hydraulically Operated Front Hood
Hydraulically operated front hood is standard. Linkage is enclosed within mulcher frame on High Flow models. Quick to open and close door allows for finer finished material to be produced from cutting all types of vegetation.Rear Chain Guard Protection
Rear chain guard protection reduces spread of material.Serrated Steps
Serrated steps allow for safe and easy access in and out of the cab.Lockable Service Panel
Hinged and lockable service panel allows easy access to hoses. Lockable with your Cat key, the service panel allows easy access to drive train components during service and inspection.Replaceable Skid Shoes
Replaceable skid shoes allow for quick replacement when worn from use.Tool Mounted Operation and Maintenance Manual (OMM) Holder
Located inside the lockable service panel and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.Multiple Teeth Options
Select from Standard Carbide, Rock Resistant, Chisel, and Side Cutter options to configure the C Series Mulcher to any underfoot or vegetation condition.Downloads
