Compactors
CB2.7 GC

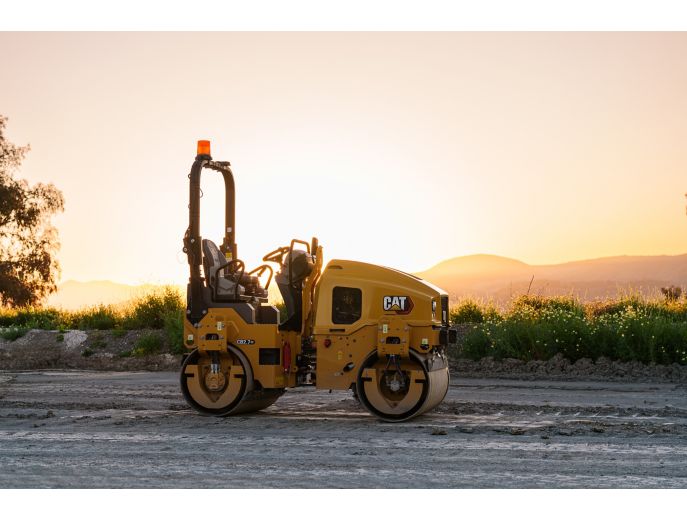

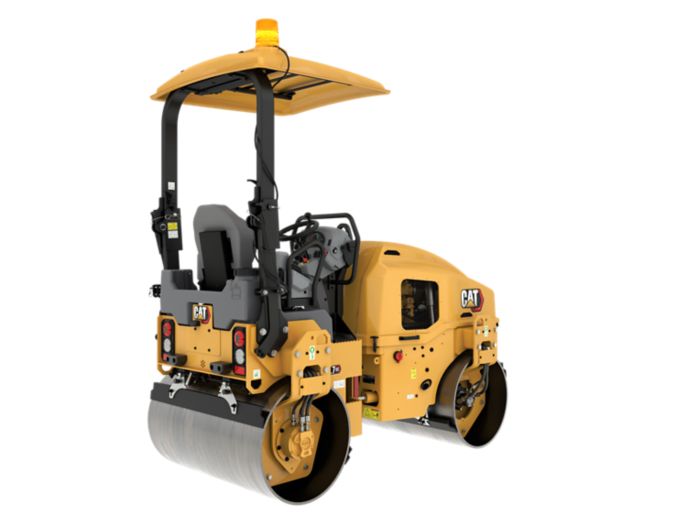

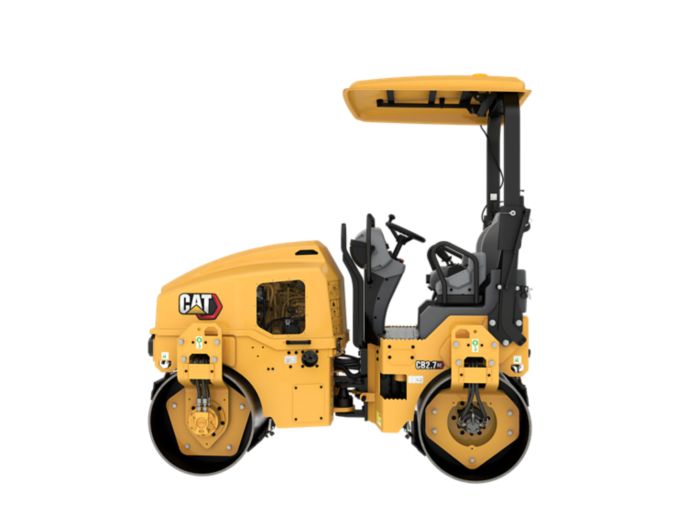

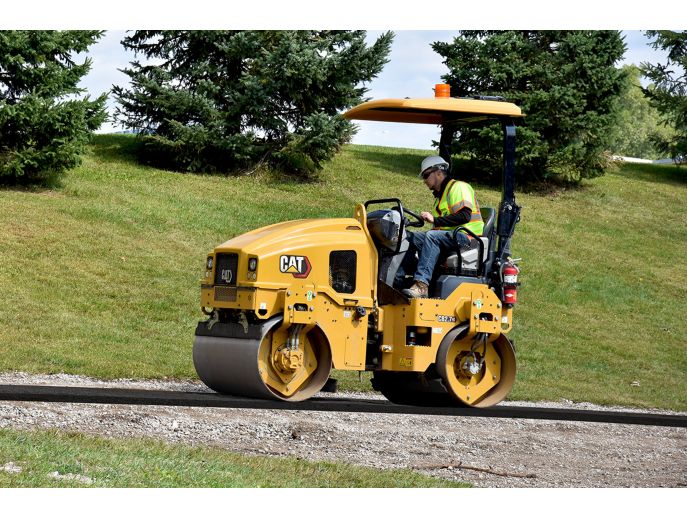

The CB2.7 GC is a 2.7 metric ton machine with 1000 mm (39 in) drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.
Request a quote
Overview
The CB2.7 GC is a 2.7 metric ton machine with 1000 mm (39 in) drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.
Weights
UNITS:
Metric
Imperial
| Standard Operating Weight with ROPS | 2698 kg | 5936 lb |
| Maximum Operating Weight with ROPS | 3198 kg | 7036 lb |
| Maximum Weight at Rear Drum | 1398 kg | 3075 lb |
| Maximum Weight at Front Drum | 1301 kg | 2861 lb |
Dimensions
| Compaction Width | 1200 mm | 47.2 in |
| Drum Diameter | 720 mm | 28.3 in |
| Drum Width | 1200 mm | 47.2 in |
| Height - ROPS | 2595 mm | 102.2 in |
| Overall Length | 2596 mm | 102.2 in |
| Overall Width | 1312 mm | 51.7 in |
| Wheel Base | 1800 mm | 70.9 in |
Operating Specifications
| Curb Clearance | 453 mm | 17.8 in |
| Drum Offset | 50 mm | 2 in |
| Ground Clearance | 285 mm | 11.2 in |
| Static Linear Load | 11.85 kg/cm | 66.2 lb/in |
| Travel Speed - Maximum | 9.4 km/h | 5.8 mile/h |
| Turning Radius - Inside Drum Edge | 2540 mm | 100 in |
| Turning Radius - Outside Drum Edge | 3740 mm | 147.2 in |
Engine
| Gross Power | 18.4 kW | 24.6 HP |
| Engine Model | C1.7T | C1.7T |
| Net Power - ISO 9249 | 18.2 kW | 24.4 HP |
Vibratory System
| Centrifugal Force - Maximum | 31 kN | 6968.8 lb |
| Nominal Amplitude - High | 0.52 mm | 0.02 in |
Service Refill Capacities
| Water Spray Tank Capacity | 200 l | 52.8 gal (US) |
| Fuel Tank Capacity | 55 l | 14.37 gal (US) |
Features
Simple to Operate
• Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy
• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing
Proven Productivity
• Large 720 mm (28 in) drum diameters for smooth mat finish
• 14 mm (0.55 in) thick drum shells for longer durability
• Dual vibratory frequencies and ballast options to maximize compactive effort
• C1.7T engine with 18.4 kW (24.7 hp) (gross)
Technology Ready
• Product link for remote monitoring of machine location and status
• Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency
Superior Safety
• High visability 75 mm (3 in) orange seatbelt to make job site safety visible
• Seat with operator presence sensor to prevent unintended operation while out of the seat
• Slip resistant steps and platform for improved operator safety
• Optional rotating amber beacon
Easy to Service
• Cat controls with ET capability for easy troubleshooting
• Reduced maintenance tasks for quick servicing
• 500 hour oil change interval to reduce maintenance time and costs
• Uptime kits and customer value agreements available to ensure maximum uptime
• LED lighting for durable and reliable performance
• External fuel fill for easy access
Sustainability
- The Cat® C1.7T engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto engine idle shutdown helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.
- Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. The hydraulic oil can be replaced every 3000 hours, eccentric housing oil can be replaced every 3000 hours, and engine oil changes can be 500 hours.
- Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.
- Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
- Remote Flash for engines helps to minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
Standard Equipment
OPERATOR ENVIRONMENT
| Adjustable Suspension Seat with Operator Presense Switch |
| ROPS Folding |
| Seat Belt - 75 mm (3 in) high visibility orange |
| Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box |
| 12-volt Power Outlet |
| Horn, Backup Alarm |
COMPACTON SYSTEM
| Folding Scrapers |
| Vibe Selection - front, rear, or both |
| Pressurized, Triple-Filtration Spray System with Test Mode |
POWERTRAIN
| Auto Engine Off and Auto Warmup |
| Air Cleaner, Dual Element |
| Engine Belt Guard |
TECHNOLOGY
| Telematics |
ELECTRICAL
| LED Working Lights |
OTHER
| Vandal Protection - lockable hood, fuel fill, and controls cover |
| Machine Life and Tiedowns |
| Offsets Hitch |
Optional Equipment
OPERATOR ENVIRONMENT
| ROPS Fixed |
| Sun Canopy |
| Seat - Side Shift |
| Dual Propel Levers |
