299D3 XE

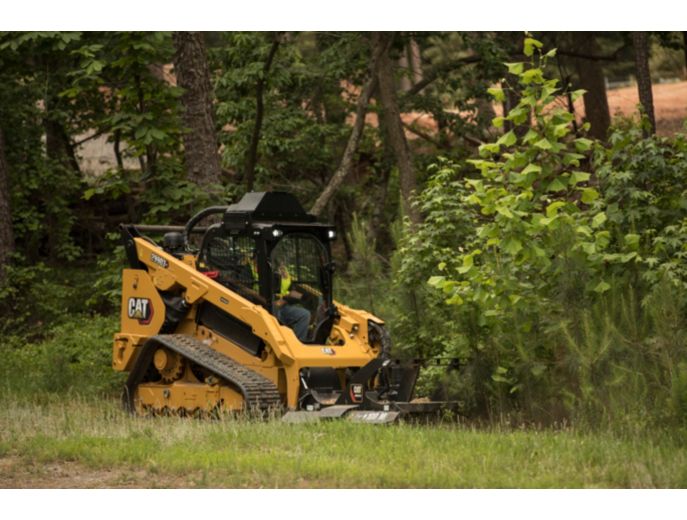

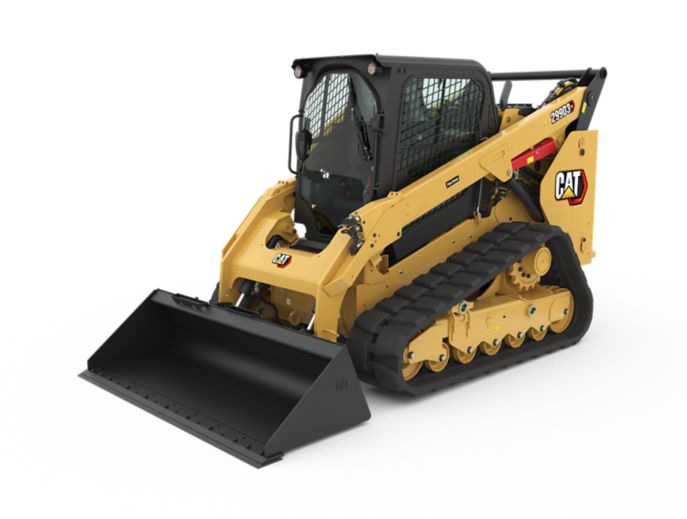

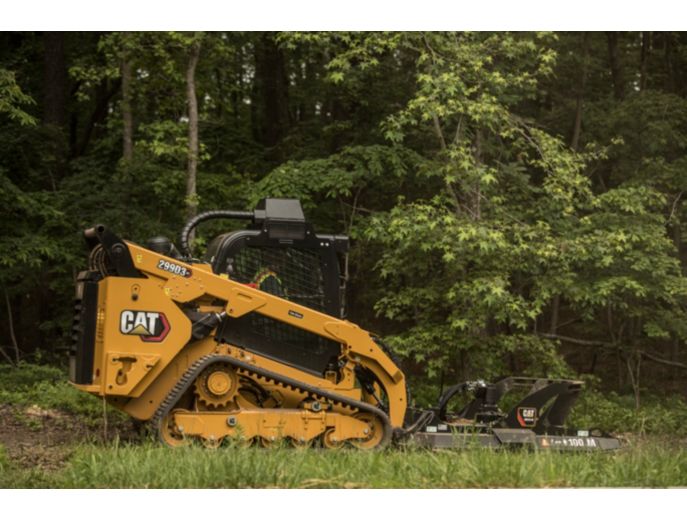

The Cat® 299D3 XE Compact Track Loader, with its powerful engine, high output hydraulic system, high lift forces, vertical lift design and torsion axle suspension, provides the maximum performance for work tool productivity, digging, truck loading and material handling in a wide range of underfoot conditions and applications.

Request a quote

Overview

Engine

UNITS:

Metric

Imperial

Gross Power - SAE J1995	82 kW	110 HP
Net Power - SAE 1349	79 kW	106 HP
Displacement	3.8 l	232 in³
Bore	100 mm	3.9 in
Stroke	120 mm	4.7 in
Net Power - ISO 9249	80 kW	107 HP
Net Power	79 kW	106 HP
Peak Torque - 1,500 rpm - SAE J1995	374 N·m	276 ft·lbf
Engine Model	Cat C3.8 DIT (turbo)	Cat C3.8 DIT (turbo)

Operating Specifications

Rated Operating Capacities - 35% Tipping Load	1620 kg	3560 lb
Ground Contact Area	1.41 m²	2184 in²
Ground Pressure	37.3 kPa	5.4 psi
Tipping Load	4625 kg	10170 lb
Breakout Force - Tilt Cylinder	3298 kg	7270 lb
Breakout Force - Lift Cylinder	2795 kg	6162 lb
Rated Operating Capacity with Optional Counterweight	2431 kg	5360 lb
Ground Pressure - With 450 mm/17.7 in Track	33 kPa	4.8 psi
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Rated Operating Capacities - 50% Tipping Load	2315 kg	5085 lb
Ground Contact Area - With 450 mm/17.7 in Track	1.59 m²	2463 in²

Weights

Operating Weight	5333 kg	11756 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).

Dimensions

Length - Track on Ground	1767 mm	69.6 in
Overall Length - Track	2270 mm	89.4 in
Height - Top of Cab	2125 mm	83.6 in
Ground Clearance	245 mm	9.6 in
Departure Angle	33°	33°
Maximum Dump Angle	54°	54°
Maximum Overall Height	4032 mm	158.7 in
Bucket Pin Height - Carry Position	180 mm	7.1 in
Turning Radius from Center - Coupler	1476 mm	58.1 in
Reach - Maximum Lift/Dump	852 mm	33.6 in
Length - Without Bucket	3189 mm	125.5 in
Turning Radius from Center - Machine Rear	1881 mm	74 in
Turning Radius from Center - Bucket (racked)	2314 mm	91.1 in
Bucket Pin Reach - Maximum Lift	493 mm	19.4 in
Clearance at Maximum Lift and Dump	2399 mm	94.5 in
Rack Back Angle - Maximum Height	81°	81°
Vehicle Width (400 mm/15.7 in tracks)	1931 mm	76 in
Bucket Pin Height - Maximum Lift	3208 mm	126.3 in
Length - With Bucket on Ground	3931 mm	154.7 in
Maximum Reach - With Arms Parallel to Ground	1319 mm	51.9 in
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted).
Roll Back Angle	25°	25°

Hydraulic System

Standard Flow Mode - Loader Hydraulic Pressure	23000 kPa	3335 psi
Note	*When equipped with Cat 400 Series work tools.	*When equipped with Cat 400 Series work tools.
Standard Flow Mode - Hydraulic Power - Calculated	33 kW	44 HP
Standard Flow Mode - Loader Hydraulic Flow	86 l/min	23 gal/min
Hydraulic Flow - XE - Hydraulic Power (calculated)	70 kW	94 HP
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*	150 l/min	40 gal/min
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure	28000 kPa	4061 psi

Cab

ROPS	ISO 3471:2008	ISO 3471:2008
FOPS	ISO 3449:2005 Level I	ISO 3449:2005 Level I

Power Train

Travel Speed - Forward or Reverse - One Speed	8.4 km/h	5.2 mile/h
Travel Speed - Forward or Reverse - Two Speed	13.5 km/h	8.4 mile/h

Service Refill Capacities

Cooling System	16 l	4.1 gal (US)
Engine Crankcase	13 l	3.5 gal (US)
Fuel Tank	120 l	31.7 gal (US)
Hydraulic System	55 l	14.5 gal (US)
Hydraulic Tank	39 l	10.3 gal (US)
Diesel Exhaust Fluid (DEF) Tank	19 l	5 gal (US)

Noise Level

Inside Cab*	83 dB(A)	83 dB(A)
Outside Cab**	104 dB(A)	104 dB(A)
Note (2)	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Air Conditioning System (if equipped)

Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Features

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job Easier

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

A Smooth Ride

A standard, fully independent torsion axle suspension combined with the Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

Optimized Machine Capability

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

Sustainability

The Cat® C3.8 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 7% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.

Standard Equipment

ELECTRICAL

12 volt Electrical System
100 ampere Alternator
Ignition Key Start/Stop Switch
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
Backup Alarm
Heavy Duty Battery, 1,000 CCA, with Battery Disconnect

OPERATOR ENVIRONMENT

Gauges: Fuel Level, DEF Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
High Back Cloth Seat with Air Suspension, Heated with Recline and Lumbar Support and Fully Adjustable Seat Mounted Controls
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Enclosed, Tilt Up
FOPS, Level I
Top, Rear and Side Windows
Headliner, Deluxe
Floor Mat
Interior Rearview Mirror
12 volt Electric Socket
Horn
Hand (Dial) and Foot Throttle, Electronic with Decel Feature
Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control
Storage Compartment with Netting

POWER TRAIN

Cat C3.8, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
Air Cleaner, Dual Element, Radial Seal
S·O·SSM Sampling Valve, Hydraulic Oil
Filters, Cartridge-type, Hydraulic
Filters, Canister-type, Fuel and Water Separator
Radiator/Hydraulic Oil Cooler (side-by-side)
Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes
Hydrostatic Transmission, Two Speed Travel
Suspension – Independent Torsion Axles (4)
Speed Sensitive Ride Control

OTHER

Engine Enclosure, Lockable
Extended Life Antifreeze, –37° C (–34° F)
Machine Tie Down Points (6)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Variable Speed Demand Fan
Steel Imbed Rubber Track – 400 mm (15.7 in) with Triple Flange Idlers (front and rear)
Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

Quick Coupler, Mechanical or Powered
High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
PERFORMANCE PACKAGE: – Performance Package H3: XE Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
COMFORT PACKAGE: – Enclosed ROPS with A/C (C3): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, Air Ride Seat (High Back and Heated) and Door (Glass or Polycarbonate)

Optional Equipment

OPTIONAL EQUIPMENT

Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Paint, Custom
Variable Speed Demand Fan with Reversing Functionality
External Counterweights
Product Link PL641, Cellular
Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
