With our huge inventory of new, used and rental equipment, WesTrac has the right machine for the job.
Commercial Screeds

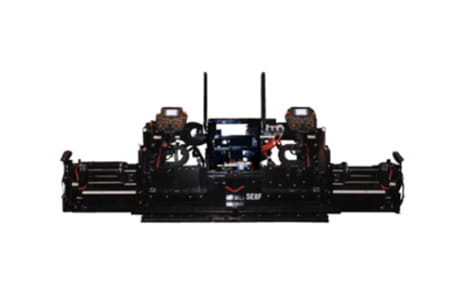

SE8F Front Mount Screed
SMOOTHNESS FEATURES
A balanced design along with rigid frame prevent flexing while in-line extension cylinders and full wrap around slider bearings reduce extension deflection. Trailing edge screed plate adjusters are easily accessible for quick leveling.
FAST HEATING ELEMENTS
675V heating elements provide 20 minute heat up time. U-shaped elements reduce cold spots while zone monitoring allows heating to continue in the event of a sensor failure. Main screed elements replaceable without removing the screed plate.
ADVANCED CONTROL
Cat® F-Series controls integrate seamlessly with the paver. Monitor screed heat, adjust feeder system ratios and integrated Cat® Grade and Slope control system are easily accessible from the backlit, water resistant LCD display.
OPERATOR FRIENDLY
Controls are conveniently located and easily recognizable. 18.5” (470 mm) wide folding walkway with extensions, dual side 4’ (1.2 m) level holders, built-in cup holders and lockable tool box.
QUICK ADJUSTMENTS
Extension angle of attack adjustment is located on top of the extension for easy adjustment. Inner and outer pre-strike off adjustment are connected for one wrench adjustment.
FAST SERVICE
Electronic Control Module simplifies troubleshooting procedures. Sealed, flexible guards protect hoses and wiring while easy component access and Caterpillar dealer service and support keep your machine up and running with limited down time.

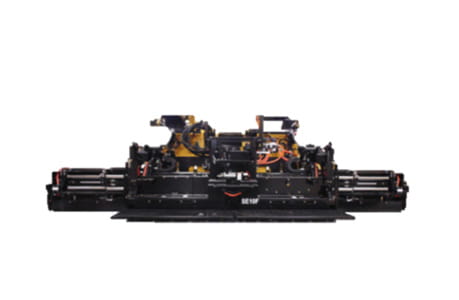

SE10F Front Mount Screed
SMOOTHNESS FEATURES
A balanced design along with rigid frame prevent flexing while in-line extension cylinders and full wrap around slider bearings reduce extension deflection. Trailing edge screed plate adjusters are easily accessible for quick leveling.
FAST HEATING ELEMENTS
675V heating elements provide 20 minute heat up time. U-shaped elements reduce cold spots while zone monitoring allows heating to continue in the event of a sensor failure. Main screed elements replaceable without removing the screed plate.
ADVANCED CONTROL
Cat® F-Series controls integrate seamlessly with the paver. Monitor screed heat, adjust feeder system ratios and integrated Cat® Grade and Slope control system are easily accessible from the backlit, water resistant LCD display.
OPERATOR FRIENDLY
Controls are conveniently located and easily recognizable. 18.5” (470 mm) wide folding walkway with extensions, dual side 4’ (1.2 m) level holders, built-in cup holders and lockable tool box.
QUICK ADJUSTMENTS
Extension angle of attack adjustment is located on top of the extension for easy adjustment. Inner and outer pre-strike off adjustment are connected for one wrench adjustment.
FAST SERVICE
Electronic Control Module simplifies troubleshooting procedures. Sealed, flexible guards protect hoses and wiring while easy component access and Caterpillar dealer service and support keep your machine up and running with limited down time.

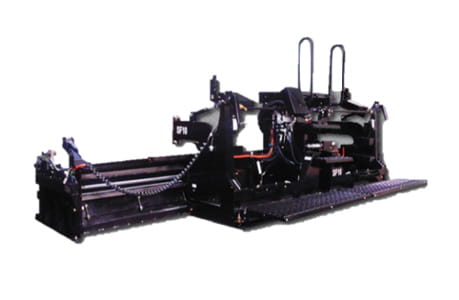

SF10 FIXED Screed
SMOOTHNESS FEATURES
A rigid frame and balanced weight design prevents flexing and easily adjustable bolt-on screed extensions provide optimal smoothness for fixed width paving.
FAST HEATING ELEMENTS
675V heating elements provide 20 minute heat up time. U-shaped elements reduce cold spots while zone monitoring allows heating to continue in the event of a sensor failure. Main screed elements replaceable without removing the screed plate./p>
ADVANCED CONTROL
Cat® F-Series controls integrate seamlessly with the paver. Monitor screed heat, adjust feeder system ratios and integrated Cat® Grade and Slope control system are easily accessible from the backlit, water resistant LCD display./p>
OPERATOR FRIENDLY
Controls are conveniently located and easily recognizable. 18.5” (470 mm) wide folding walkway with extensions, dual side 4’ (1.2 m) level holders, built-in cup holders and lockable tool box.
STRIKE OFF ADJUSTMENT
33” (383 mm) strike-off plate travel on the SF8F and 45” (1143 mm) strike-off plate travel on the SF10F provides pre-compaction and effective material flow.
FAST SERVICE
Electronic Control Module simplifies troubleshooting procedures. Sealed, flexible guards protect hoses and wiring while easy component access and Caterpillar dealer service and support keep your machine up and running with limited down time.
