Hammer Accessories

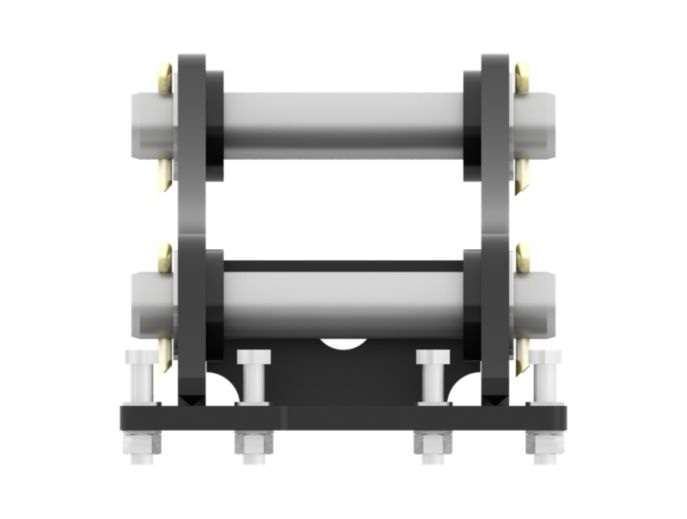

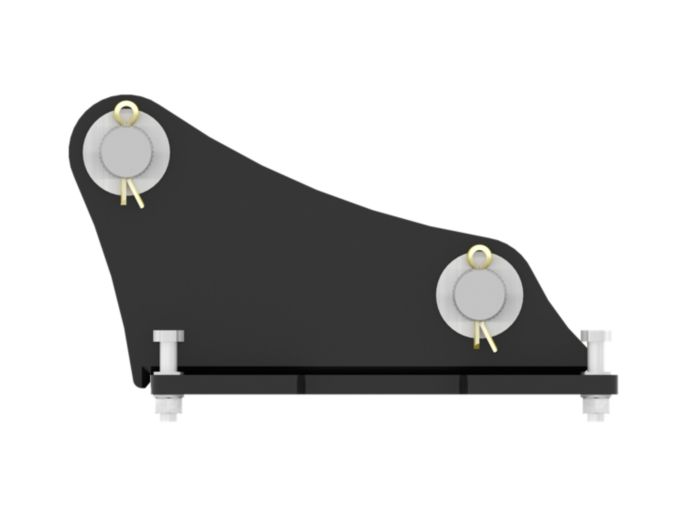

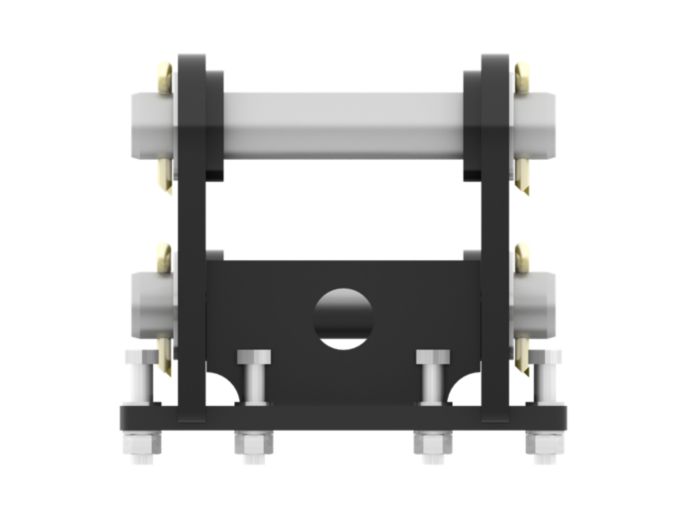

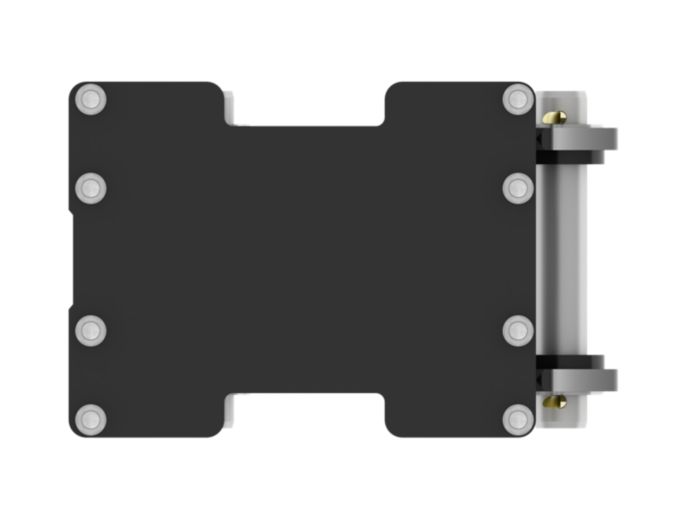

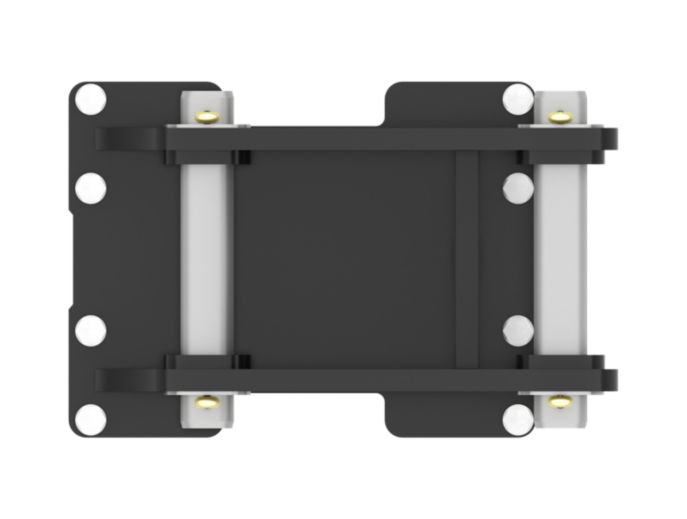

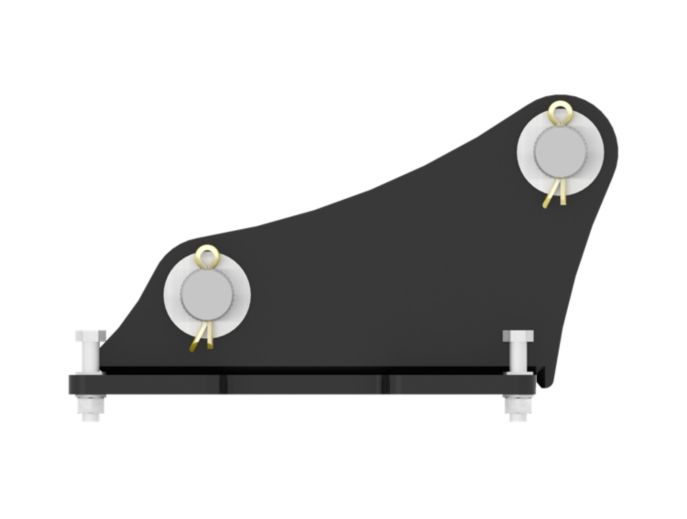

10 Ton Mounting Bracket - Pin On

Mounting bracket adapts attachment to fit a variety of machine types.

Specifications
Attachments

Overview

Cat® Mounting Brackets are designed for versatility, allowing the same attachment to be used across different machine configurations fitted with a different bracket.

UNITS:

Metric

Imperial

Interface Type	Pin On	Pin On
Weight	101 kg	222.7 lb
Overall Width	400 mm	15.7 in
Overall Length	618 mm	24.3 in
Overall Height	337 mm	13.3 in
Pin Diameter	60 mm/60 mm (2.4 in/2.4 in)	60 mm/60 mm (2.4 in/2.4 in)
Mounting Bracket Size	Extra Large	Extra Large
