Hammer Accessories

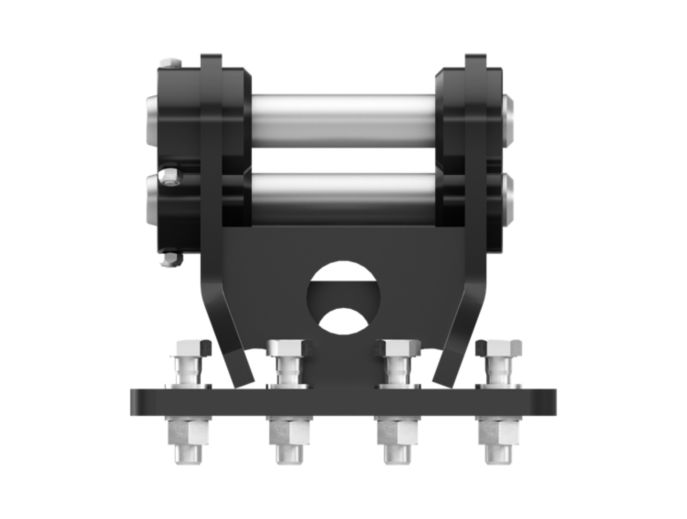

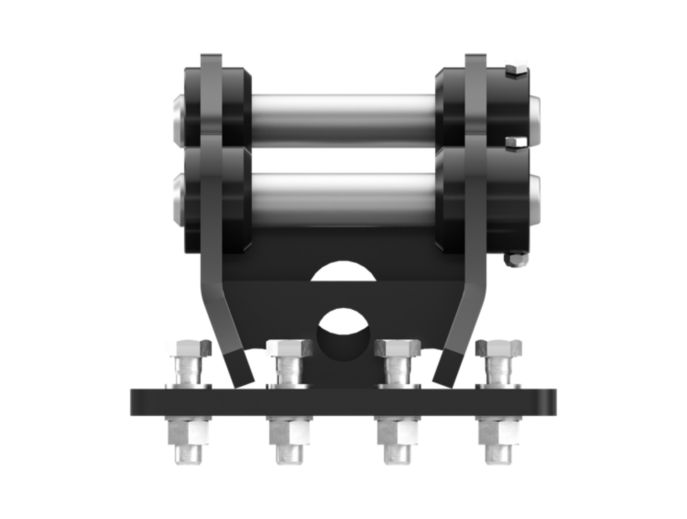

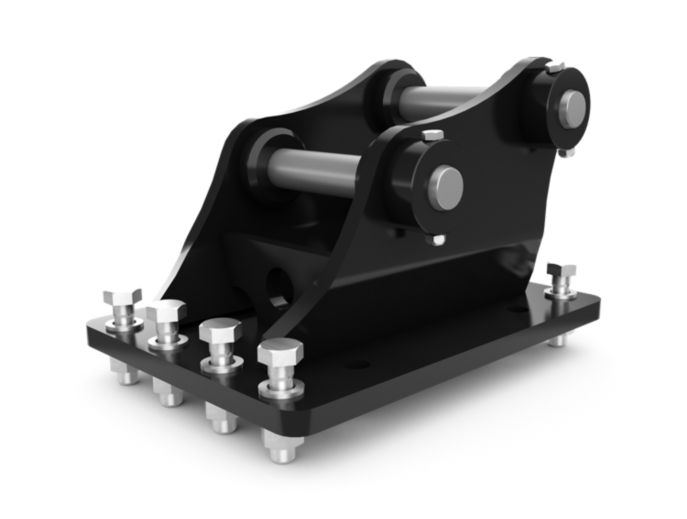

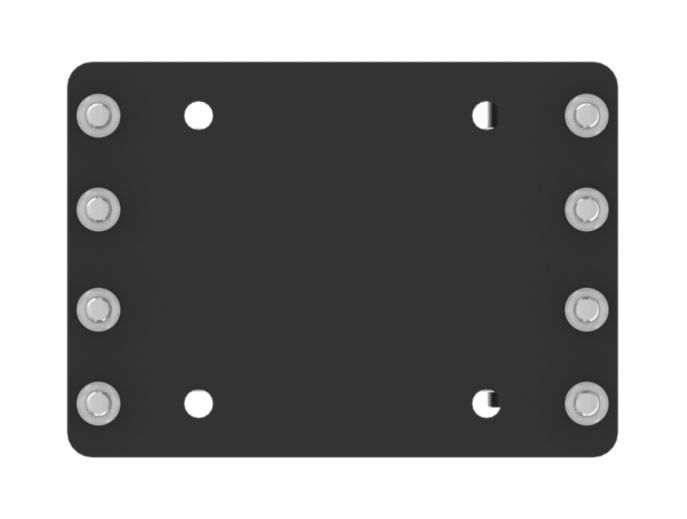

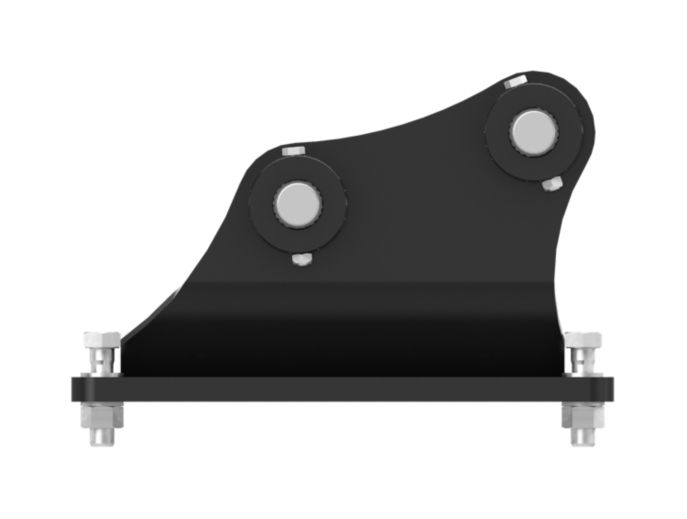

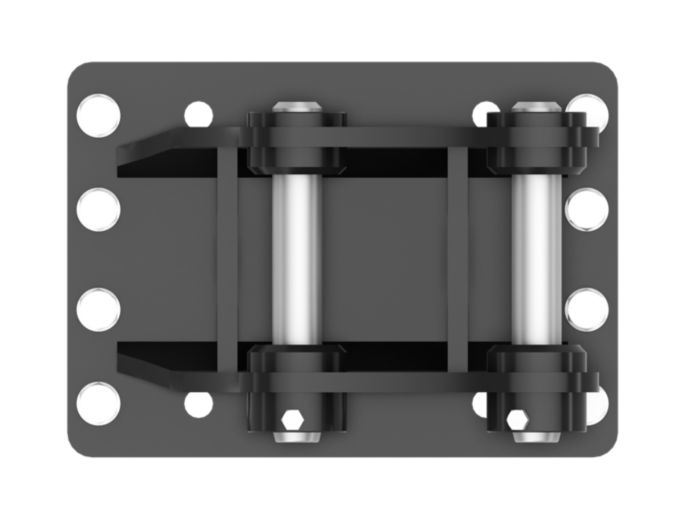

3 Ton Mounting Bracket - Pin On

Mounting bracket adapts attachment to fit a variety of machine types.

Specifications
Attachments

Overview

Cat® Mounting Brackets are designed for versatility, allowing the same attachment to be used across different machine configurations fitted with a different bracket.

UNITS:

Metric

Imperial

Interface Type	Pin On	Pin On
Weight	60 kg	132.3 lb
Overall Width	316 mm	12.4 in
Overall Length	440 mm	17.3 in
Overall Height	272 mm	10.7 in
Pin Diameter	40 mm/40 mm (1.6 in/1.6 in)	40 mm/40 mm (1.6 in/1.6 in)
Mounting Bracket Size	Small-Large	Small-Large

Attachments

Compactors

CVP16

CVP28
