Hammer Accessories

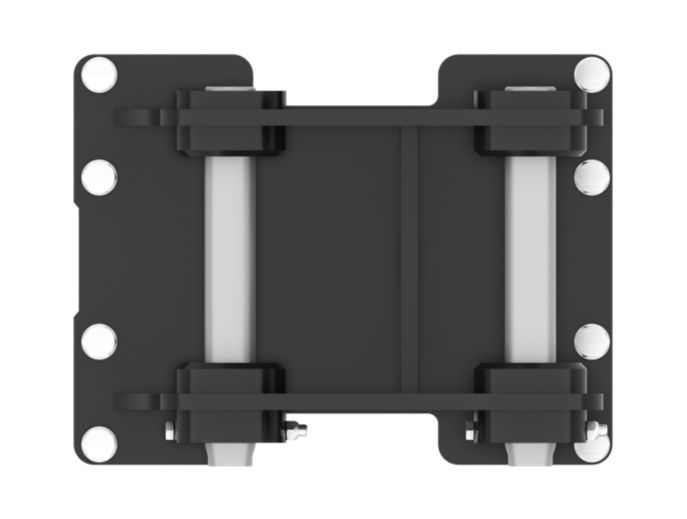

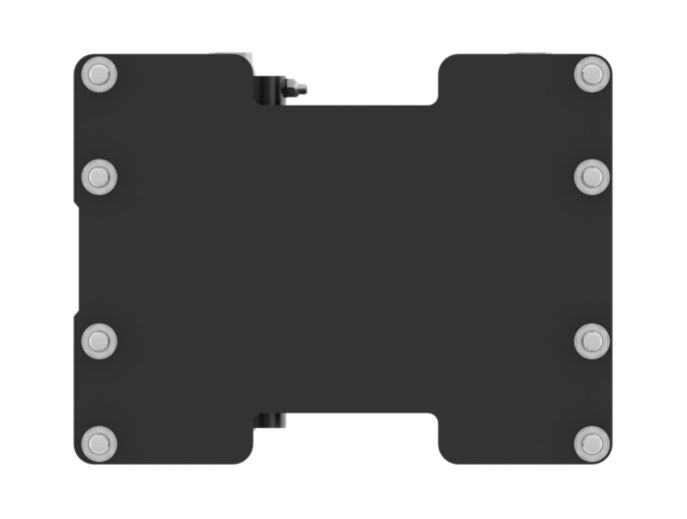

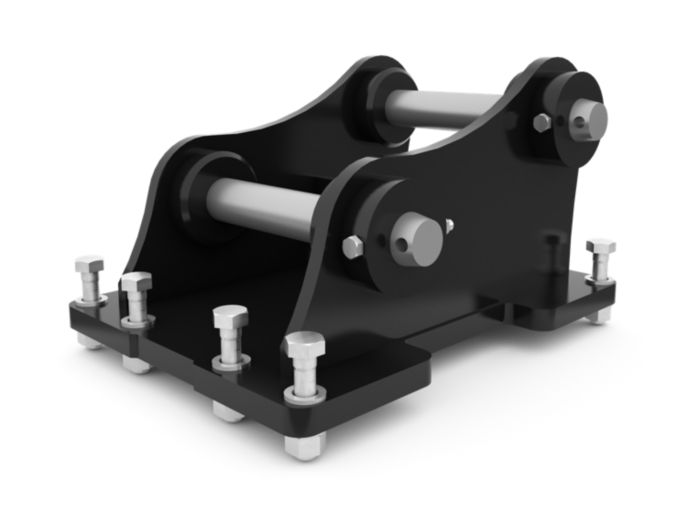

8 Ton Mounting Bracket - Pin On

Mounting bracket adapts attachment to fit a variety of machine types.

Specifications
Attachments

Overview

Cat® Mounting Brackets are designed for versatility, allowing the same attachment to be used across different machine configurations fitted with a different bracket.

UNITS:

Metric

Imperial

Interface Type	Pin On (Pin Grabber)	Pin On (Pin Grabber)
Weight	84 kg	185.2 lb
Overall Width	402 mm	15.8 in
Overall Length	525 mm	20.7 in
Overall Height	296 mm	11.7 in
Pin Diameter	50 mm/50 mm (2 in/2 in)	50 mm/50 mm (2 in/2 in)
Mounting Bracket Size	Extra Large	Extra Large
