Hammer Accessories

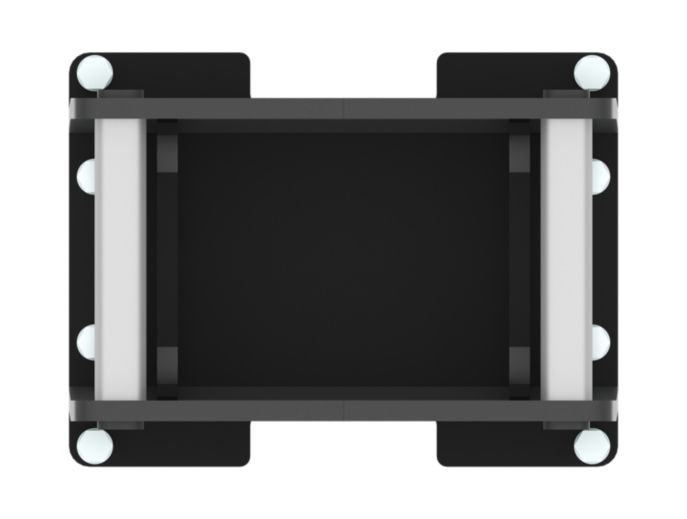

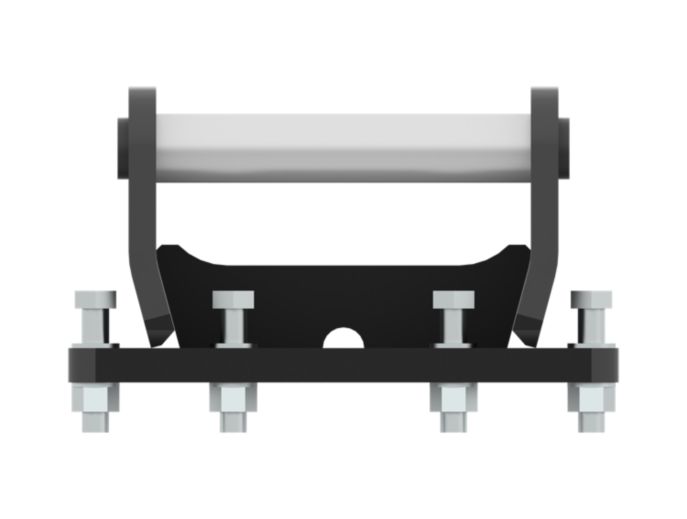

Extra Large Mounting Bracket - S50

Mounting bracket adapts attachment to fit a variety of machine types.

Specifications
Attachments

Overview

Cat® Mounting Brackets are designed for versatility, allowing the same attachment to be used across different machine configurations fitted with a different bracket.

UNITS:

Metric

Imperial

Interface Type	S-50 Coupler	S-50 Coupler
Weight	79.7 kg	175.7 lb
Overall Width	400 mm	15.7 in
Overall Length	530 mm	20.9 in
Overall Height	215 mm	8.5 in
Pin Diameter	45 mm/45 mm (1.8 in/1.8 in)	45 mm/45 mm (1.8 in/1.8 in)
Mounting Bracket Size	Extra Large	Extra Large
