Hammer Accessories

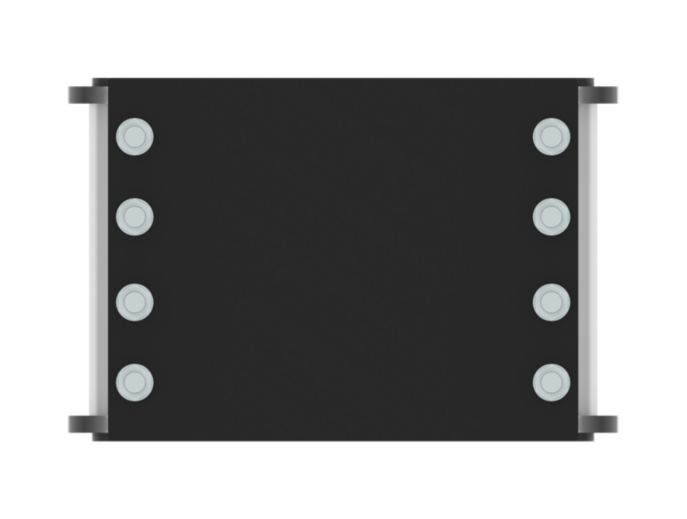

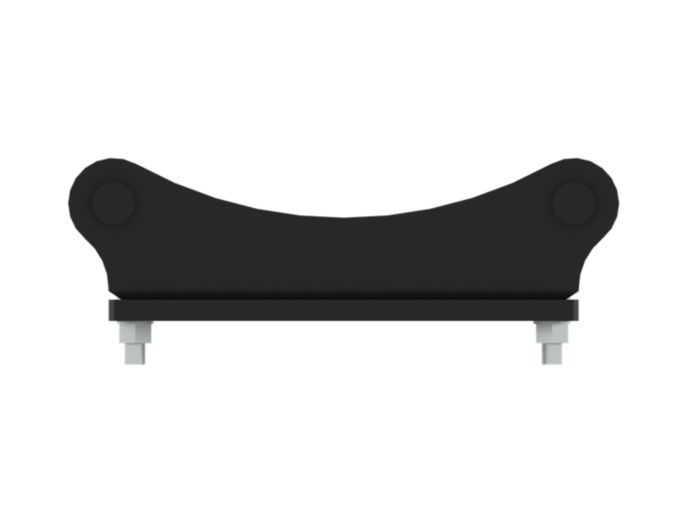

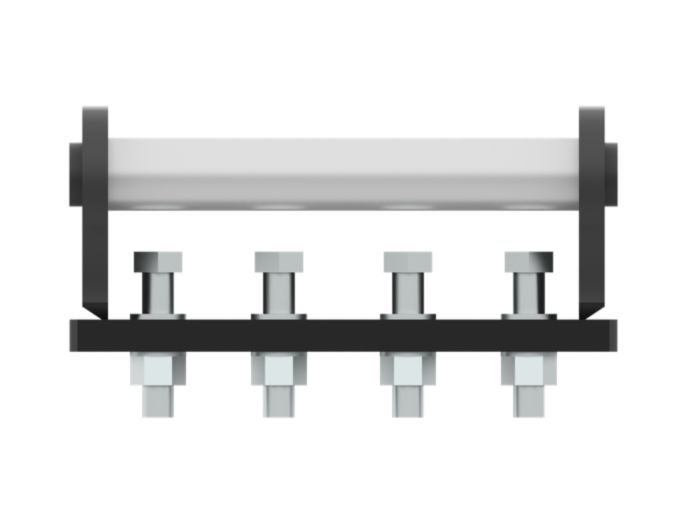

Large Mounting Bracket - S45

Mounting bracket adapts attachment to fit a variety of machine types.

Specifications
Attachments

Overview

Cat® Mounting Brackets are designed for versatility, allowing the same attachment to be used across different machine configurations fitted with a different bracket.

UNITS:

Metric

Imperial

Interface Type	S-45 Coupler	S-45 Coupler
Weight	45.3 kg	99.9 lb
Overall Width	340 mm	13.4 in
Overall Length	516 mm	20.3 in
Overall Height	153 mm	6 in
Pin Diameter	40 mm/40 mm (1.6 in/1.6 in)	40 mm/40 mm (1.6 in/1.6 in)
Mounting Bracket Size	Large	Large
