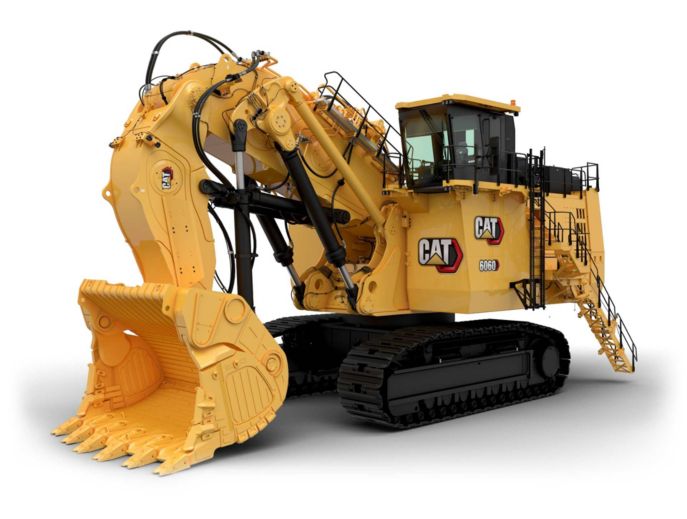

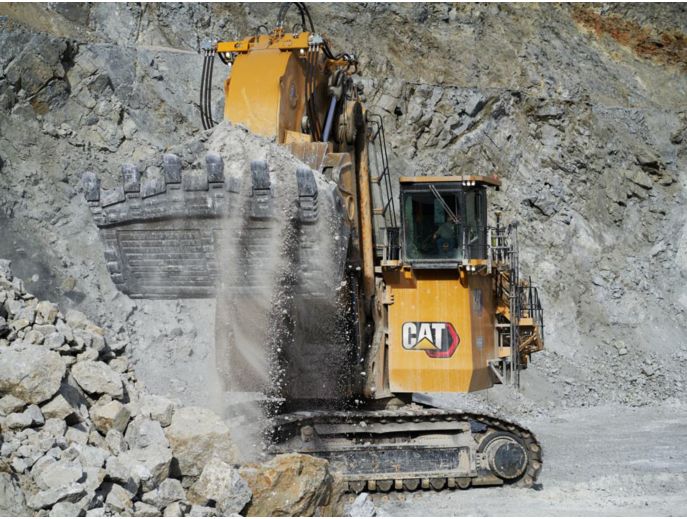

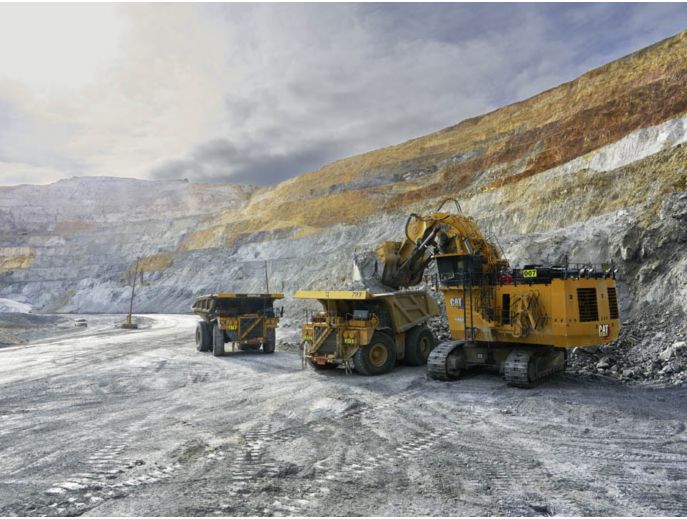

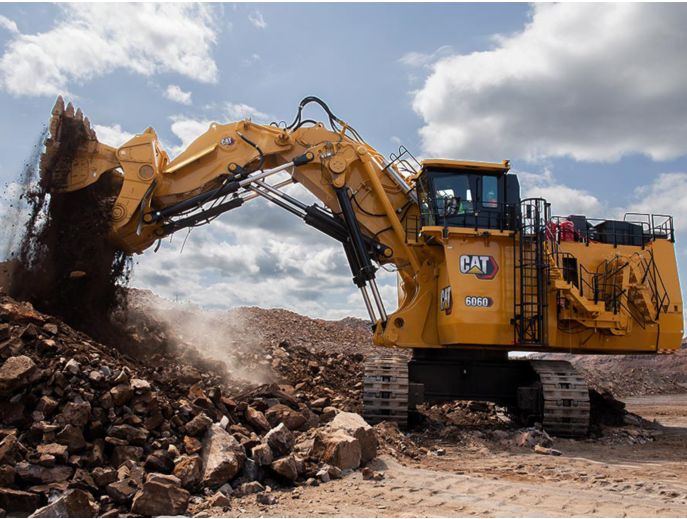

6060 Face Shovel

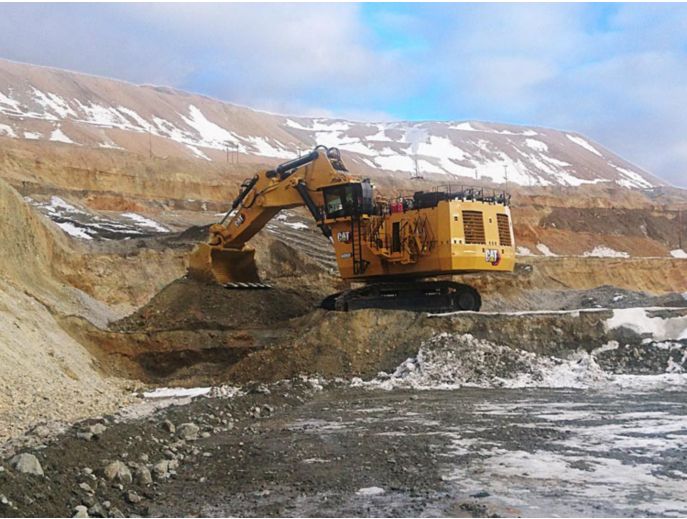

6060 Backhoe

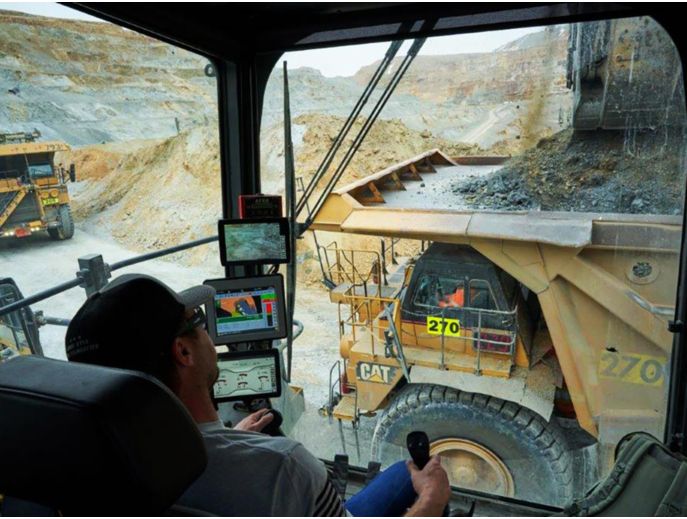

6060 Face Shovel cab
6060 Backhoe Cab

Hydraulic Mining Shovels

6060

The Cat^® 6060 Hydraulic Mining Shovel is the industry’s most popular hydraulic shovel in its size class. And for good reason. With its rated payload of 61 tonnes (67 tons), the Cat 6060 was the first shovel in the mining industry tailor-made for mines using 240-ton (218-tonne) haul trucks, providing an efficient truck-shovel system solution to meet production capacity in these environments. Today's 6060 remains the ideal shovel for these applications, with improvements and enhancements in durability and reliability to deliver the uptime you demand. And its powerful engine and efficient hydraulic system allow higher working speeds for fast cycle times. The result is higher productivity and lower overall owning and operating costs.

Request a quote

Overview

The Cat® 6060 Hydraulic Mining Shovel is the industry’s most popular hydraulic shovel in its size class. And for good reason. With its rated payload of 61 tonnes (67 tons), the Cat 6060 was the first shovel in the mining industry tailor-made for mines using 240-ton (218-tonne) haul trucks, providing an efficient truck-shovel system solution to meet production capacity in these environments. Today's 6060 remains the ideal shovel for these applications, with improvements and enhancements in durability and reliability to deliver the uptime you demand. And its powerful engine and efficient hydraulic system allow higher working speeds for fast cycle times. The result is higher productivity and lower overall owning and operating costs.

General

UNITS:

Metric

Imperial

Engine Output - SAE J1995	2248 kW	3015 HP
Bucket Payload	61 t	67 ton (US)
Operating Weight	599 t	660 ton (US)
Note	Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.	Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.

Engine

Engine Model	2 x Cat 3512E	2 x Cat 3512E

Diesel Engines

Rated Speed	1,800 min-1 (1,800 rpm)	1,800 min-1 (1,800 rpm)
Number of Cylinders - Each Engine	12	12
Bore	170 mm	6.69 in
Stroke	215 mm	8.46 in
Displacement	58.6 l	3574 in³
Aspiration	Turbocharged and charge air-cooled	Turbocharged and charge air-cooled
Components (1)	Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs)	Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs)
Components (2)	High-capacity water separator	High-capacity water separator
Components (3)	Two-stage fuel filter with series filtration	Two-stage fuel filter with series filtration
Components (4)	Heavy-duty air filters	Heavy-duty air filters
Components (5)	Microprocessed engine management	Microprocessed engine management
Components (6)	Hydraulically driven radiator fan with electronically controlled fan speed	Hydraulically driven radiator fan with electronically controlled fan speed
Components (7)	Exhaust manifold and turbo heat shields	Exhaust manifold and turbo heat shields

Diesel Engine - Lesser Regulated

Gross Power - SAE J1995	2256 kW	3025 HP
Net Power - ISO 9249	2229 kW	2990 HP
Net Power - SAE J1349	2103 kW	2821 HP
Emissions	Optimized for fuel consumption.	Optimized for fuel consumption.

Diesel Engine - Highly Regulated

Gross Power - SAE J1995	2248 kW	3015 HP
Net Power - SAE J1349	2095 kW	2810 HP
Net Power - ISO 9249	2221 kW	2979 HP
Emissions	Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions.	Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions.

Electrical System

System Voltage	24 V	24 V
Batteries in Series/Parallel Installation	6 x 210 Ah; 12 V each; 630 Ah 24 V in total	6 x 210 Ah; 12 V each; 630 Ah 24 V in total
Components (1)	6 maintenance-free batteries	6 maintenance-free batteries
Components (2)	Lockable battery isolator switch	Lockable battery isolator switch
Components (3)	Lockable starter isolator switch	Lockable starter isolator switch
Components (4)	13 LED high-brightness working flood lights	13 LED high-brightness working flood lights
Components (5)	17 LED service lights	17 LED service lights
Components (6)	2 electric horns (1 cab module; 1 oil cooler module)	2 electric horns (1 cab module; 1 oil cooler module)

Operating Weights

6060 FS - Standard Track Pads	1400 mm	4.58 ft
6060 FS - Operating Weight	598800 kg	1320110 lb
6060 FS - Ground Pressure	26.6 N/cm2 (38.5 psi)	26.6 N/cm2 (38.5 psi)
Backhoe - Standard Track Pads	1400 mm	4.58 ft
Backhoe - Operating Weight	600500 kg	1323860 lb
Backhoe - Ground Pressure	26.7 N/cm2 (38.7 psi)	26.7 N/cm2 (38.7 psi)
Note	Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants.	Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants.

Service Refill Capacities

Fuel Tank	11870 l	3136 gal (US)
Hydraulic Tank	7100 l	1876 gal (US)
Hydraulic System - Including Tank	9400 l	2483 gal (US)
Engine Oil	328 l	86.6 gal (US)
Cooling System	800 l	211.4 gal (US)
Swing Drive	160 l	42.4 gal (US)
Grease Tank	710 l	188 gal (US)

Hydraulic System with Pump Managing System

Main Pumps - Diesel Version	8 variable swash plate pumps	8 variable swash plate pumps
Main Pumps - Maximum Oil Flow - Diesel Version	8 x 650 L/min (8 x 172 gal/min)	8 x 650 L/min (8 x 172 gal/min)
Maximum Pressure - Attachment	320 bar	4640 psi
Maximum Pressure - Travel	360 bar	5220 psi
Swing Pumps - Diesel Version	4 reversible swash plate pumps	4 reversible swash plate pumps
Swing Pumps - Maximum Oil Flow - Diesel Version	4 x 352 L/min (4 x 93 gal/min)	4 x 352 L/min (4 x 93 gal/min)
Maximum Pressure - Swing Pumps	350 bar	5075 psi

Hydraulic Oil Cooling

Oil Flow of Cooling Pumps	4 x 488 L/min (4 x 129 gal/min)	4 x 488 L/min (4 x 129 gal/min)
Components	4 cooling fans	4 cooling fans
Diameter - Fan	1170 mm	46 in
Features (1)	Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running	Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Features (2)	Fan speed and flow of oil to the coolers are thermostatically controlled	Fan speed and flow of oil to the coolers are thermostatically controlled
Features (3)	Extremely high cooling efficiency to ensure optimum oil temperature	Extremely high cooling efficiency to ensure optimum oil temperature
Features (4)	Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers	Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers

Swing System

Swing Drive	4 compact planetary transmissions with axial piston motors	4 compact planetary transmissions with axial piston motors
Parking Brakes	Wet multiple disc brake, spring loaded/hydraulically released	Wet multiple disc brake, spring loaded/hydraulically released
Maximum Swing Speed	3.8 r/min	3.8 r/min
Swing Ring	Triple-race roller bearing with sealed internal gearing	Triple-race roller bearing with sealed internal gearing
Features (1)	Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody	Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody
Features (2)	Closed-loop swing circuit with torque control	Closed-loop swing circuit with torque control
Features (3)	Hydraulic braking of the swing motion by counteracting control	Hydraulic braking of the swing motion by counteracting control
Features (4)	All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system	All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system

Undercarriage

Travel Speed - 1st Stage - Maximum	1.1 km/h	0.68 mile/h
Travel Speed - 2nd Stage - Maximum	1.6 km/h	0.99 mile/h
Maximum Tractive Force	2942 kN	661160 lb
Gradeability - Travel Drives - Maximum	39 %	39 %
Track Pads - Each Side	42	42
Bottom Rollers - Each Side	7	7
Support Rollers - Each Side	2 plus a skid plate in between	2 plus a skid plate in between
Travel Drives - Each Side	1 planetary transmission with 2 two-stage axial piston motors	1 planetary transmission with 2 two-stage axial piston motors
Components (1)	HD tracks with cast double-grouser track pad	HD tracks with cast double-grouser track pad
Components (2)	HD fixed axle rollers and idlers	HD fixed axle rollers and idlers
Components (3)	Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas	Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas
Components (4)	Acoustic travel alarm (forward and reverse)	Acoustic travel alarm (forward and reverse)
Components (5)	Fully hydraulic, self-adjusting track tensioning system with piston accumulator	Fully hydraulic, self-adjusting track tensioning system with piston accumulator
Components (6)	Automatic hydraulic retarder valve to prevent over-speed on downhill travel	Automatic hydraulic retarder valve to prevent over-speed on downhill travel

Operator's Cab

Automatic Lubrication System

Capacity - Grease Container	710 l	188 gal (US)
Type (1)	Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times	Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times
Type (2)	System failures displayed by monitoring system	System failures displayed by monitoring system
Type (3)	Grease filters (200 µm) between service station and container as well as directly behind grease pump	Grease filters (200 µm) between service station and container as well as directly behind grease pump
Type (4)	Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring	Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring

Attachments

Shovel attachment with unique TriPower kinematics ensuring the following main features: (1)	Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces	Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2)	Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance	Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3)	Constant boom momentum throughout the entire lift arc; Crowd force assistance	Constant boom momentum throughout the entire lift arc; Crowd force assistance
All buckets (FS and BH) are equipped with a wear package consisting of: (1)	Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth	Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth
All buckets (FS and BH) are equipped with a wear package consisting of: (2)	Wing shrouds on side walls and heel shrouds at bottom edges	Wing shrouds on side walls and heel shrouds at bottom edges
Type (1)	Catwalks with rails at booms (FS and BH)	Catwalks with rails at booms (FS and BH)
Type (2)	Guards for shovel cylinders (FS)	Guards for shovel cylinders (FS)
Type (3)	Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve	Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type (4)	Service access holes from both sides of boom (FS and BH) and stick (FS)	Service access holes from both sides of boom (FS and BH) and stick (FS)
Type (5)	Welding procedures allow for internal counter-welding (double prep weld) wherever possible	Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (6)	Booms and sticks are stress-relieved after welding	Booms and sticks are stress-relieved after welding
Type (7)	Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas	Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas
Type (8)	Special wear packages for highly abrasive materials available upon request	Special wear packages for highly abrasive materials available upon request

Digging Forces

Maximum Crowd Force	2200 kN	494410 lb
Maximum Breakout Force	1730 kN	388780 lb

Working Ranges

Maximum Digging Height	15.6 m	51.17 ft
Maximum Digging Reach	16.5 m	54.17 ft
Maximum Digging Depth	2.8 m	9.17 ft

Standard Bucket Capacity

Face Shovel (heaped 2:1)	34 m³	44.5 yd³
Backhoe (heaped 1:1)	34 m³	44.5 yd³

Backhoe Attachment (BH) - Digging Forces

Stick Digging Force - ISO	1316 kN	295740 lb
Bucket Digging Force - ISO	1223 kN	274840 lb

Backhoe Attachment (BH) - Working Range

Maximum Digging Height	16.1 m	52.83 ft
Maximum Digging Reach	19 m	62.33 ft
Maximum Digging Depth	8.9 m	29.17 ft

Retractable Service Station

Installation	Retractable service station installed underneath the engine module and easily accessible from ground.	Retractable service station installed underneath the engine module and easily accessible from ground.
Equipped With (1)	Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container	Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container
Equipped With (2)	Cat jump-start socket	Cat jump-start socket
Equipped With (3)	Indicator lights	Indicator lights

Features

SAFETY

Excellent visibility thanks to cab position that provides clear view to the digging and loading areas, floor window that provides a view to the tracks, LED lighting, and optional camera monitoring system.
Emergency egress ladder with a self-closing door located in direct proximity to the cab.
Safer access with 45-degree powered access stairway that features emergency lowering via a nitrogen accumulator, which ensures it remains operational even when engines shut off.
Safer electrical and/or mechanical maintenance thanks to lockable starter and battery isolation switch cabinet.
Safer service with improved sealing between engines and hydraulic pumps, improved routing and separation of hydraulic lines and electric cables.

OPERATOR CAB

Improved operator comfort with Cat Next Gen heated and cooled seat and integrated joysticks.
First-in-class and patented 3-seat design, including elevated full-size trainer’s seat and laptop work desk.
New and improved air conditioning system.
Reduced noise and temperature control thanks to superior insulation.
Productivity-boosting Operator Assist – Enhanced Motion Control, which reduces fatigue and helps inexperienced operators more confidently load material.

RELIABILITY & DURABILITY

Improved structures, including increased weight, strengthened superstructure and increased thickness in several locations.
33% longer service life for new and enlarged slew ring.
New undercarriage with long-life components, frame and electronics.
New crawler frame and Cat undercarriage with HD rollers, HD idlers, HD track, and track tensioning.
New and improved engine design that improves reliability and extends gallons consumed before first overhaul by 10%, which also contributes to longer engine life.

PRODUCTIVITY & PERFORMANCE

Up to 15% greater efficiency through Hydraulic Optimization, which dynamically assigns individual pumps or groups of pumps to deliver the exact flow and pressure that each hydraulic function requires.
Faster cycle times and improved energy efficiency delivered by closed-loop swing system, which also generates less heat.
Greater operator control thanks to five circuit hydraulics that allow for two cylinder motions, two travel motions, and swing to be controlled simultaneously.
Easier and faster face shovel operation with unique TriPower face shovel design, which generates superior mechanical leverage and control.
Increased productivity and greater uptime with the twin engine concept, which enables up to 65% of full production with a single engine.

BUCKETS & GET

Buckets and ground engaging tools (GET) designed to maximize durability and productivity and ideally matched to your shovel and application.
Integrated to work as part of a machine system — helping you achieve high productivity and the lowest cost per ton.
Variety of sizes and material densities for the ideal match to your shovel and application.
Deliver optimal payload when combined with Cat GET and wear components.
Wear packages that protect your investment, including special liner material and lip shroud, wing shrouds and heel shrouds.

CONNECTIVITY & TECHNOLOGY

Greater connectivity with improved Product Link™ Elite system, which increases the availability of data provided by the 6060.
Additional performance and reliability advantages through integration of proven and validated Cat electronics.
Intuitive, informative onboard electronics that help operators be more productive.
Enhanced diagnostic capabilities and troubleshooting functions with factory-installed Monitoring and Diagnostic System.
Connectivity features and the integration of Cat MineStar™ Health offerings enable a proactive approach to maintenance.

SERVICEABILITY

More room in the service compartment, plus easy access to slew gearboxes, rotary distributor, oil cooler and more.
Clear arrangement of components on the superstructure for easy access and serviceability.
Hose assemblies that can be built locally using all Cat material.
Access to Cat Electronic Technician, which helps dealer service personnel more easily diagnose and prevent issues.
Reduced maintenance downtime thanks to exchange intervals for engine oil and engine filters that have been increased from 500 to 1,000 hours

SUSTAINABILITY

Reduced fuel burn thanks to 10% improvement in hydraulic efficiency.
Reduced emissions with engines that satisfy Tier 4 standards and eliminate the need for Diesel Exhaust Fluid (DEF) — saving time and cost during maintenance.
Less heat and improved efficiency with the closed-loop swing circuit.
Reduced owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers.
Preservation of raw materials, energy conservation and reduced emissions through the Cat Reman program, which returns end-of-life components to like-new condition.

Standard Equipment

2 x Cat 3512E engines

Cat Powertrain

Aftertreatment System (used in highly regulated countries only): -Diesel Oxidation Catalysts (DOCs) -Non-DEF solution
Air-to-Air After Cooling (ATAAC)
Turbocharger
Hydraulically driven radiator fan
Electronically controlled fan speed
Micro processed engine management
Heavy-duty air filters
Two-stage fuel filter with series filtration
High-capacity water seperator
Starting aid -- automatic ether
Exhaust manifold and turbo heat shields
Dual 24 V electric starters per engine
Automatic engine idle shut down
Automatic fuel priming

Hydraulics

Hydraulic Optimization
Operator Assist: Enhanced Motion Control
Cat Hydraulic Hose assemblies
Pump managing system with: -Electronic load limit control -Flow on demand -Automatic zero flow regulation -Automatic engine rpm reduction -Reduced oil flow at high hydraulic oil or engine temperature
Pressure cut-off for main pumps
Cooling of pump transmission gear oil
Closed loop swing circuit
Pressure testing points
Full-flow high-pressure filters (100 μm), main pumps
High pressure filters (100 μm), closed swing circuit
Full-flow filters (10 μm), return circuit
Pressure filters swing charge circuit (40 μm)
Pressure filters pilot circuit (6 μm)
Transmission oil filters (40 μm)
Boom float valve (FS and BH)
Stick float valve (FS)

Electrical System

6 Maintenance-free batteries
Lockable battery isolator switch
Lockable starter isolator switch
13 LED high-brightness working flood lights
17 LED service lights
2 acoustic travel alarms -forward and reverse (power module, oil cooler module)
2 electric horns (1 cab module, 1 oil cooler module)

Undercarriage

HD tracks with cast double-grouser track pads
1400 mm (4'7") wide track pads
HD fixed axle carrier and load rollers
HD fixed axle idlers
Automatic hydraulic retarder valve
Hinged travel motor covers
Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas
Fully hydraulic self-adjusting track tensioning system with piston accumulators

Automatic Lubrication System

Rectangular grease container (fill via service station)
Lubricated pinion in swing ring
Grease filters (200 μm)

Operator Environment

Single hydraulically driven HVAC system
In-floor window with removable grate
Pneumatically cushioned and multiadjustable comfort seat with: -Heating and cooling -Lumbar support -2-point safety belt -Head and arm rests -Safety switch for automatic motion shutdown
Independently adjustable seat consoles with integrated joysticks
Electronic-Hydraulic Servo Control
Elevated full-size trainer seat with 2-point safety belt and laptop desk
Additional fold-away auxiliary seat with 2-point safety belt
Three cup holders
FM/AM radio with USB and AUX input
Parallel intermittent wiper/washer
Roller blinds
Monitoring system with 254 mm (10 in) color touchscreen
45° stairway from engine bay to operator cab
Powered 45° access stairway
Heated mirror on LH side
Camera monitoring system (Right and rear cameras, 2 lights, and additional display)
Level indicators for length and crosswise inclination
Document Storage

Front Attachment

Service access holes from both sides in boom and stick (FS and BH)
Boom and stick thermally stress relieved after welding
Catwalks with rails at boom (FS and BH)
Wear Package (as per bucket selection)

Cat Technology

Cat Product Link™ Elite (Cellular)
Cat MineStar™ Solutions Ready

Service and Maintenance

Engine oil exchange interval -- 500 hours
Hydraulic oil change interval -10,000 hours
Scheduled Oil Sampling (S·O·SSM) ports
Retractable ground level service station with quick couplings for: -Diesel fuel -Engine coolant -left/right engines -Pump transmission gear oil -left/right engines -Engine oil -left/right engines -Engine oil extension tanks -Hydraulic oil -Grease -Swing transmission gear oil
Cat battery charging connector
Indicator lights
Cat Electronic Technician service port
Dirt wiper at swivel

Safety and Security

Emergency stop switches: 2 in cab, 5 in engine module, 1 at ground level service station, 1 pull rope accessible from ground level
Operator Protective Guard (Top Guard)
All-round safety glass
Emergency egress ladder

Maintenance

ISO or ANSI decals

Optional Equipment

GENERAL

Custom paint

Attachments

Buckets - Mining Shovels

34 m³ (44.5 yd³) - 463-9277

34 m³ (44.5 yd³) - 504-9719

34 m³ (44.5 yd³) - 512-7166

Downloads

6060 Product Brochure Download

6060 Technical Specifications Download

6060 Walkaround (LRC)Download

6060 Walkaround (HRC)Download

Buckets Brochure Download

6060 Poster Download

Overview

General

UNITS:

Metric

Imperial

Engine Output - SAE J1995	2248 kW	3015 HP
Bucket Payload	61 t	67 ton (US)
Operating Weight	599 t	660 ton (US)
Note	Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.	Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.

Engine

Engine Model	2 x Cat 3512E	2 x Cat 3512E

Diesel Engines

Rated Speed	1,800 min-1 (1,800 rpm)	1,800 min-1 (1,800 rpm)
Number of Cylinders - Each Engine	12	12
Bore	170 mm	6.69 in
Stroke	215 mm	8.46 in
Displacement	58.6 l	3574 in³
Aspiration	Turbocharged and charge air-cooled	Turbocharged and charge air-cooled
Components (1)	Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs)	Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs)
Components (2)	High-capacity water separator	High-capacity water separator
Components (3)	Two-stage fuel filter with series filtration	Two-stage fuel filter with series filtration
Components (4)	Heavy-duty air filters	Heavy-duty air filters
Components (5)	Microprocessed engine management	Microprocessed engine management
Components (6)	Hydraulically driven radiator fan with electronically controlled fan speed	Hydraulically driven radiator fan with electronically controlled fan speed
Components (7)	Exhaust manifold and turbo heat shields	Exhaust manifold and turbo heat shields

Diesel Engine - Lesser Regulated

Gross Power - SAE J1995	2256 kW	3025 HP
Net Power - ISO 9249	2229 kW	2990 HP
Net Power - SAE J1349	2103 kW	2821 HP
Emissions	Optimized for fuel consumption.	Optimized for fuel consumption.

Diesel Engine - Highly Regulated

Gross Power - SAE J1995	2248 kW	3015 HP
Net Power - SAE J1349	2095 kW	2810 HP
Net Power - ISO 9249	2221 kW	2979 HP
Emissions	Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions.	Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions.

Electrical System

System Voltage	24 V	24 V
Batteries in Series/Parallel Installation	6 x 210 Ah; 12 V each; 630 Ah 24 V in total	6 x 210 Ah; 12 V each; 630 Ah 24 V in total
Components (1)	6 maintenance-free batteries	6 maintenance-free batteries
Components (2)	Lockable battery isolator switch	Lockable battery isolator switch
Components (3)	Lockable starter isolator switch	Lockable starter isolator switch
Components (4)	13 LED high-brightness working flood lights	13 LED high-brightness working flood lights
Components (5)	17 LED service lights	17 LED service lights
Components (6)	2 electric horns (1 cab module; 1 oil cooler module)	2 electric horns (1 cab module; 1 oil cooler module)

Operating Weights

6060 FS - Standard Track Pads	1400 mm	4.58 ft
6060 FS - Operating Weight	598800 kg	1320110 lb
6060 FS - Ground Pressure	26.6 N/cm2 (38.5 psi)	26.6 N/cm2 (38.5 psi)
Backhoe - Standard Track Pads	1400 mm	4.58 ft
Backhoe - Operating Weight	600500 kg	1323860 lb
Backhoe - Ground Pressure	26.7 N/cm2 (38.7 psi)	26.7 N/cm2 (38.7 psi)
Note	Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants.	Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants.

Service Refill Capacities

Fuel Tank	11870 l	3136 gal (US)
Hydraulic Tank	7100 l	1876 gal (US)
Hydraulic System - Including Tank	9400 l	2483 gal (US)
Engine Oil	328 l	86.6 gal (US)
Cooling System	800 l	211.4 gal (US)
Swing Drive	160 l	42.4 gal (US)
Grease Tank	710 l	188 gal (US)

Hydraulic System with Pump Managing System

Main Pumps - Diesel Version	8 variable swash plate pumps	8 variable swash plate pumps
Main Pumps - Maximum Oil Flow - Diesel Version	8 x 650 L/min (8 x 172 gal/min)	8 x 650 L/min (8 x 172 gal/min)
Maximum Pressure - Attachment	320 bar	4640 psi
Maximum Pressure - Travel	360 bar	5220 psi
Swing Pumps - Diesel Version	4 reversible swash plate pumps	4 reversible swash plate pumps
Swing Pumps - Maximum Oil Flow - Diesel Version	4 x 352 L/min (4 x 93 gal/min)	4 x 352 L/min (4 x 93 gal/min)
Maximum Pressure - Swing Pumps	350 bar	5075 psi

Hydraulic Oil Cooling

Oil Flow of Cooling Pumps	4 x 488 L/min (4 x 129 gal/min)	4 x 488 L/min (4 x 129 gal/min)
Components	4 cooling fans	4 cooling fans
Diameter - Fan	1170 mm	46 in
Features (1)	Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running	Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Features (2)	Fan speed and flow of oil to the coolers are thermostatically controlled	Fan speed and flow of oil to the coolers are thermostatically controlled
Features (3)	Extremely high cooling efficiency to ensure optimum oil temperature	Extremely high cooling efficiency to ensure optimum oil temperature
Features (4)	Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers	Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers

Swing System

Swing Drive	4 compact planetary transmissions with axial piston motors	4 compact planetary transmissions with axial piston motors
Parking Brakes	Wet multiple disc brake, spring loaded/hydraulically released	Wet multiple disc brake, spring loaded/hydraulically released
Maximum Swing Speed	3.8 r/min	3.8 r/min
Swing Ring	Triple-race roller bearing with sealed internal gearing	Triple-race roller bearing with sealed internal gearing
Features (1)	Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody	Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody
Features (2)	Closed-loop swing circuit with torque control	Closed-loop swing circuit with torque control
Features (3)	Hydraulic braking of the swing motion by counteracting control	Hydraulic braking of the swing motion by counteracting control
Features (4)	All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system	All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system

Undercarriage

Travel Speed - 1st Stage - Maximum	1.1 km/h	0.68 mile/h
Travel Speed - 2nd Stage - Maximum	1.6 km/h	0.99 mile/h
Maximum Tractive Force	2942 kN	661160 lb
Gradeability - Travel Drives - Maximum	39 %	39 %
Track Pads - Each Side	42	42
Bottom Rollers - Each Side	7	7
Support Rollers - Each Side	2 plus a skid plate in between	2 plus a skid plate in between
Travel Drives - Each Side	1 planetary transmission with 2 two-stage axial piston motors	1 planetary transmission with 2 two-stage axial piston motors
Components (1)	HD tracks with cast double-grouser track pad	HD tracks with cast double-grouser track pad
Components (2)	HD fixed axle rollers and idlers	HD fixed axle rollers and idlers
Components (3)	Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas	Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas
Components (4)	Acoustic travel alarm (forward and reverse)	Acoustic travel alarm (forward and reverse)
Components (5)	Fully hydraulic, self-adjusting track tensioning system with piston accumulator	Fully hydraulic, self-adjusting track tensioning system with piston accumulator
Components (6)	Automatic hydraulic retarder valve to prevent over-speed on downhill travel	Automatic hydraulic retarder valve to prevent over-speed on downhill travel

Operator's Cab

Automatic Lubrication System

Capacity - Grease Container	710 l	188 gal (US)
Type (1)	Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times	Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times
Type (2)	System failures displayed by monitoring system	System failures displayed by monitoring system
Type (3)	Grease filters (200 µm) between service station and container as well as directly behind grease pump	Grease filters (200 µm) between service station and container as well as directly behind grease pump
Type (4)	Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring	Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring

Attachments

Shovel attachment with unique TriPower kinematics ensuring the following main features: (1)	Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces	Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2)	Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance	Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3)	Constant boom momentum throughout the entire lift arc; Crowd force assistance	Constant boom momentum throughout the entire lift arc; Crowd force assistance
All buckets (FS and BH) are equipped with a wear package consisting of: (1)	Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth	Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth
All buckets (FS and BH) are equipped with a wear package consisting of: (2)	Wing shrouds on side walls and heel shrouds at bottom edges	Wing shrouds on side walls and heel shrouds at bottom edges
Type (1)	Catwalks with rails at booms (FS and BH)	Catwalks with rails at booms (FS and BH)
Type (2)	Guards for shovel cylinders (FS)	Guards for shovel cylinders (FS)
Type (3)	Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve	Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type (4)	Service access holes from both sides of boom (FS and BH) and stick (FS)	Service access holes from both sides of boom (FS and BH) and stick (FS)
Type (5)	Welding procedures allow for internal counter-welding (double prep weld) wherever possible	Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (6)	Booms and sticks are stress-relieved after welding	Booms and sticks are stress-relieved after welding
Type (7)	Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas	Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas
Type (8)	Special wear packages for highly abrasive materials available upon request	Special wear packages for highly abrasive materials available upon request

Digging Forces

Maximum Crowd Force	2200 kN	494410 lb
Maximum Breakout Force	1730 kN	388780 lb

Working Ranges

Maximum Digging Height	15.6 m	51.17 ft
Maximum Digging Reach	16.5 m	54.17 ft
Maximum Digging Depth	2.8 m	9.17 ft

Standard Bucket Capacity

Face Shovel (heaped 2:1)	34 m³	44.5 yd³
Backhoe (heaped 1:1)	34 m³	44.5 yd³

Backhoe Attachment (BH) - Digging Forces

Stick Digging Force - ISO	1316 kN	295740 lb
Bucket Digging Force - ISO	1223 kN	274840 lb

Backhoe Attachment (BH) - Working Range

Maximum Digging Height	16.1 m	52.83 ft
Maximum Digging Reach	19 m	62.33 ft
Maximum Digging Depth	8.9 m	29.17 ft

Retractable Service Station

Installation	Retractable service station installed underneath the engine module and easily accessible from ground.	Retractable service station installed underneath the engine module and easily accessible from ground.
Equipped With (1)	Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container	Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container
Equipped With (2)	Cat jump-start socket	Cat jump-start socket
Equipped With (3)	Indicator lights	Indicator lights

Features

SAFETY

Excellent visibility thanks to cab position that provides clear view to the digging and loading areas, floor window that provides a view to the tracks, LED lighting, and optional camera monitoring system.
Emergency egress ladder with a self-closing door located in direct proximity to the cab.
Safer access with 45-degree powered access stairway that features emergency lowering via a nitrogen accumulator, which ensures it remains operational even when engines shut off.
Safer electrical and/or mechanical maintenance thanks to lockable starter and battery isolation switch cabinet.
Safer service with improved sealing between engines and hydraulic pumps, improved routing and separation of hydraulic lines and electric cables.

OPERATOR CAB

Improved operator comfort with Cat Next Gen heated and cooled seat and integrated joysticks.
First-in-class and patented 3-seat design, including elevated full-size trainer’s seat and laptop work desk.
New and improved air conditioning system.
Reduced noise and temperature control thanks to superior insulation.
Productivity-boosting Operator Assist – Enhanced Motion Control, which reduces fatigue and helps inexperienced operators more confidently load material.

RELIABILITY & DURABILITY

Improved structures, including increased weight, strengthened superstructure and increased thickness in several locations.
33% longer service life for new and enlarged slew ring.
New undercarriage with long-life components, frame and electronics.
New crawler frame and Cat undercarriage with HD rollers, HD idlers, HD track, and track tensioning.
New and improved engine design that improves reliability and extends gallons consumed before first overhaul by 10%, which also contributes to longer engine life.

PRODUCTIVITY & PERFORMANCE

Up to 15% greater efficiency through Hydraulic Optimization, which dynamically assigns individual pumps or groups of pumps to deliver the exact flow and pressure that each hydraulic function requires.
Faster cycle times and improved energy efficiency delivered by closed-loop swing system, which also generates less heat.
Greater operator control thanks to five circuit hydraulics that allow for two cylinder motions, two travel motions, and swing to be controlled simultaneously.
Easier and faster face shovel operation with unique TriPower face shovel design, which generates superior mechanical leverage and control.
Increased productivity and greater uptime with the twin engine concept, which enables up to 65% of full production with a single engine.

BUCKETS & GET

Buckets and ground engaging tools (GET) designed to maximize durability and productivity and ideally matched to your shovel and application.
Integrated to work as part of a machine system — helping you achieve high productivity and the lowest cost per ton.
Variety of sizes and material densities for the ideal match to your shovel and application.
Deliver optimal payload when combined with Cat GET and wear components.
Wear packages that protect your investment, including special liner material and lip shroud, wing shrouds and heel shrouds.

CONNECTIVITY & TECHNOLOGY

Greater connectivity with improved Product Link™ Elite system, which increases the availability of data provided by the 6060.
Additional performance and reliability advantages through integration of proven and validated Cat electronics.
Intuitive, informative onboard electronics that help operators be more productive.
Enhanced diagnostic capabilities and troubleshooting functions with factory-installed Monitoring and Diagnostic System.
Connectivity features and the integration of Cat MineStar™ Health offerings enable a proactive approach to maintenance.

SERVICEABILITY

More room in the service compartment, plus easy access to slew gearboxes, rotary distributor, oil cooler and more.
Clear arrangement of components on the superstructure for easy access and serviceability.
Hose assemblies that can be built locally using all Cat material.
Access to Cat Electronic Technician, which helps dealer service personnel more easily diagnose and prevent issues.
Reduced maintenance downtime thanks to exchange intervals for engine oil and engine filters that have been increased from 500 to 1,000 hours

SUSTAINABILITY

Reduced fuel burn thanks to 10% improvement in hydraulic efficiency.
Reduced emissions with engines that satisfy Tier 4 standards and eliminate the need for Diesel Exhaust Fluid (DEF) — saving time and cost during maintenance.
Less heat and improved efficiency with the closed-loop swing circuit.
Reduced owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers.
Preservation of raw materials, energy conservation and reduced emissions through the Cat Reman program, which returns end-of-life components to like-new condition.

2 x Cat 3512E engines

Cat Powertrain

Aftertreatment System (used in highly regulated countries only): -Diesel Oxidation Catalysts (DOCs) -Non-DEF solution
Air-to-Air After Cooling (ATAAC)
Turbocharger
Hydraulically driven radiator fan
Electronically controlled fan speed
Micro processed engine management
Heavy-duty air filters
Two-stage fuel filter with series filtration
High-capacity water seperator
Starting aid -- automatic ether
Exhaust manifold and turbo heat shields
Dual 24 V electric starters per engine
Automatic engine idle shut down
Automatic fuel priming

Hydraulics

Hydraulic Optimization
Operator Assist: Enhanced Motion Control
Cat Hydraulic Hose assemblies
Pump managing system with: -Electronic load limit control -Flow on demand -Automatic zero flow regulation -Automatic engine rpm reduction -Reduced oil flow at high hydraulic oil or engine temperature
Pressure cut-off for main pumps
Cooling of pump transmission gear oil
Closed loop swing circuit
Pressure testing points
Full-flow high-pressure filters (100 μm), main pumps
High pressure filters (100 μm), closed swing circuit
Full-flow filters (10 μm), return circuit
Pressure filters swing charge circuit (40 μm)
Pressure filters pilot circuit (6 μm)
Transmission oil filters (40 μm)
Boom float valve (FS and BH)
Stick float valve (FS)

Electrical System

6 Maintenance-free batteries
Lockable battery isolator switch
Lockable starter isolator switch
13 LED high-brightness working flood lights
17 LED service lights
2 acoustic travel alarms -forward and reverse (power module, oil cooler module)
2 electric horns (1 cab module, 1 oil cooler module)

Undercarriage

HD tracks with cast double-grouser track pads
1400 mm (4'7") wide track pads
HD fixed axle carrier and load rollers
HD fixed axle idlers
Automatic hydraulic retarder valve
Hinged travel motor covers
Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas
Fully hydraulic self-adjusting track tensioning system with piston accumulators

Automatic Lubrication System

Rectangular grease container (fill via service station)
Lubricated pinion in swing ring
Grease filters (200 μm)

Operator Environment

Single hydraulically driven HVAC system
In-floor window with removable grate
Pneumatically cushioned and multiadjustable comfort seat with: -Heating and cooling -Lumbar support -2-point safety belt -Head and arm rests -Safety switch for automatic motion shutdown
Independently adjustable seat consoles with integrated joysticks
Electronic-Hydraulic Servo Control
Elevated full-size trainer seat with 2-point safety belt and laptop desk
Additional fold-away auxiliary seat with 2-point safety belt
Three cup holders
FM/AM radio with USB and AUX input
Parallel intermittent wiper/washer
Roller blinds
Monitoring system with 254 mm (10 in) color touchscreen
45° stairway from engine bay to operator cab
Powered 45° access stairway
Heated mirror on LH side
Camera monitoring system (Right and rear cameras, 2 lights, and additional display)
Level indicators for length and crosswise inclination
Document Storage

Front Attachment

Service access holes from both sides in boom and stick (FS and BH)
Boom and stick thermally stress relieved after welding
Catwalks with rails at boom (FS and BH)
Wear Package (as per bucket selection)

Cat Technology

Cat Product Link™ Elite (Cellular)
Cat MineStar™ Solutions Ready

Service and Maintenance

Engine oil exchange interval -- 500 hours
Hydraulic oil change interval -10,000 hours
Scheduled Oil Sampling (S·O·SSM) ports
Retractable ground level service station with quick couplings for: -Diesel fuel -Engine coolant -left/right engines -Pump transmission gear oil -left/right engines -Engine oil -left/right engines -Engine oil extension tanks -Hydraulic oil -Grease -Swing transmission gear oil
Cat battery charging connector
Indicator lights
Cat Electronic Technician service port
Dirt wiper at swivel

Safety and Security

Emergency stop switches: 2 in cab, 5 in engine module, 1 at ground level service station, 1 pull rope accessible from ground level
Operator Protective Guard (Top Guard)
All-round safety glass
Emergency egress ladder

Maintenance

ISO or ANSI decals

GENERAL

Custom paint

Attachments

Engine Output - SAE J1995
824 HP / 615 kW

Bucket Payload
16.1 ton (US) / 14.6 t

Compare Models

6020B

Engine Output - SAE J1995
1040 HP / 776 kW

Bucket Payload
23.8 ton (US) / 21.6 t

Compare Models

6030

Engine Output - SAE J1995
1649 HP / 1230 kW

Bucket Payload
33 ton (US) / 30 t

Compare Models

6040

Engine Output - SAE J1995
2079 HP / 1550 kW

Bucket Payload
43.7 ton (US) / 39.6 t

Compare Models

Operator's Eye Level - Approximately	7.6 m	24.91 ft
Internal Dimensions of Cab - Length	2230 mm	7.33 ft
Internal Dimensions of Cab - Width	1625 mm	5.33 ft
Internal Dimensions of Cab - Height	2070 mm	6.75 ft
Components (1)	Single hydraulically driven HVAC System, with dual system option	Single hydraulically driven HVAC System, with dual system option
Components (2)	In-floor window with removable grate	In-floor window with removable grate
Components (3)	Pneumatically cushioned and multi-adjustable comfort seat with heating, cooling, and lumbar support	Pneumatically cushioned and multi-adjustable comfort seat with heating, cooling, and lumbar support
Components (4)	Independently adjustable seat consoles with integrated joysticks	Independently adjustable seat consoles with integrated joysticks
Components (5)	Operator Protective Guard (Top Guard) (ISO 10262:1998)	Operator Protective Guard (Top Guard) (ISO 10262:1998)
Components (6)	Elevated full-size trainer seat with safety belt and laptop desk	Elevated full-size trainer seat with safety belt and laptop desk
Components (7)	Additional fold-away auxiliary seat with safety belt	Additional fold-away auxiliary seat with safety belt
Components (8)	Operator Presence switch	Operator Presence switch
Components (9)	Monitoring system with 254 mm (10 in) touch screen	Monitoring system with 254 mm (10 in) touch screen
Components (10)	Powered 45 degree access stairway	Powered 45 degree access stairway
Components (11)	Emergency egress ladder	Emergency egress ladder
Components (12)	FM/AM radio with USB and AUX input	FM/AM radio with USB and AUX input
Components (13)	Roller blinds on 3 front windows	Roller blinds on 3 front windows
Components (14)	3 cup holders	3 cup holders
Components (15)	Cat Electronic Technician service port	Cat Electronic Technician service port

1300 881 064

Hydraulic Mining Shovels

6060

Overview

Features

SAFETY

OPERATOR CAB

RELIABILITY & DURABILITY

PRODUCTIVITY & PERFORMANCE

BUCKETS & GET

CONNECTIVITY & TECHNOLOGY

SERVICEABILITY

SUSTAINABILITY

Standard Equipment

Optional Equipment

Attachments

Buckets - Mining Shovels

Downloads

Specifications

Overview

Features

Features

SAFETY

OPERATOR CAB

RELIABILITY & DURABILITY

PRODUCTIVITY & PERFORMANCE

BUCKETS & GET

CONNECTIVITY & TECHNOLOGY

SERVICEABILITY

SUSTAINABILITY

Standard Equipment

Optional Equipment

Attachments

Attachments

Buckets - Mining Shovels

Downloads

Downloads

Related Products
