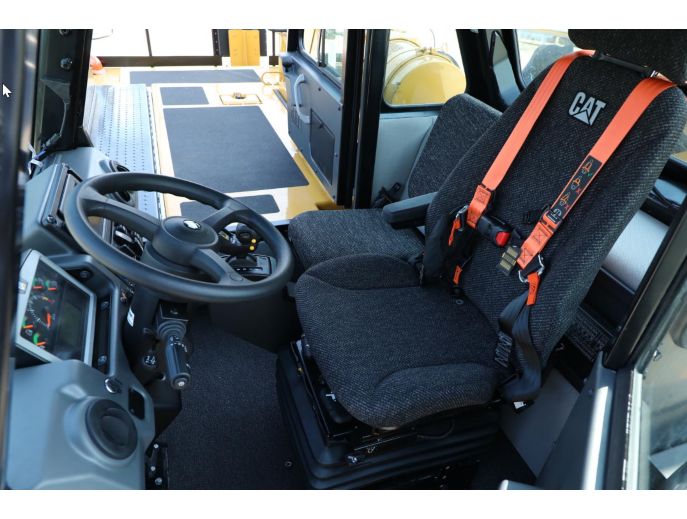

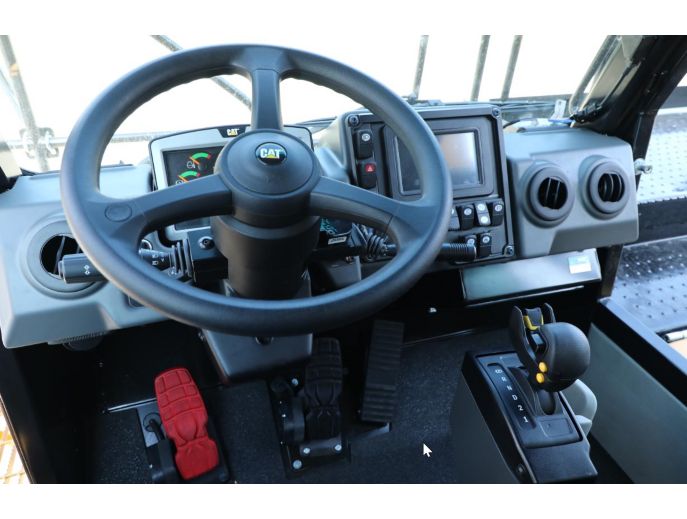

- 360° Interior View (HTML)

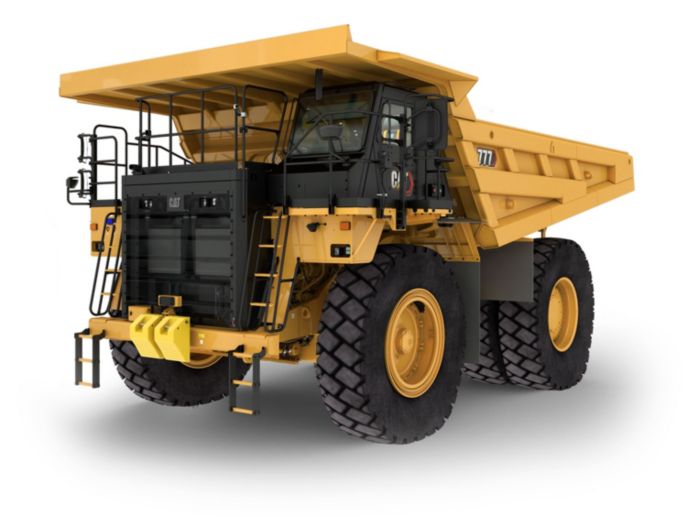

Off-Highway Trucks
777 (05)
The Cat® 777 Off-Highway Truck provides best in class productivity with upgraded engine, superior transmission controls, comfortable cabin, increased fuel economy and torque – designed to offer a durable and low-cost per-tonne option for your applications.
Request a quote
Overview
Cat® 777 Off-Highway Truck provides best in class with increased performance, improved fuel efficiency, superior transmission controls, and enhanced cabin comfort – designed to offer durability plus a reduced total-cost of ownership.
Engine
UNITS:
Metric
Imperial
| Engine Model | Cat® C32B | Cat® C32B |
| Engine Speed | 1800 r/min | 1800 r/min |
| Gross Power - SAE J1995:2014 | 765 kW | 1026 hp |
| Net Power - SAE J1349:2011 | 711 kW | 953 hp |
| Net Torque | 5130 N·m | 3784 lb/ft |
| Net Torque Rise | 36% | 36% |
| Cylinders | 12 | 12 |
| Bore | 145 mm | 5.7 in |
| Stroke | 162 mm | 6.4 in |
| Displacement | 32.1 l | 1959 in³ |
| Emissions (1) | Meets U.S. EPA Tier 2 Equivalent emission standards. | Meets U.S. EPA Tier 2 Equivalent emission standards. |
| Engine Power - ISO 14396:2002 | 752 kW | 1008 hp |
| Emissions (2) | Certified for China Nonroad Stage III emission standards. | Certified for China Nonroad Stage III emission standards. |
| Note (1) | Net power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm. Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard. | Net power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm. Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard. |
| Note (2) | Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). | Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). |
| Note (3) | No engine derating required up to 3048 m (10,000 ft) altitude. | No engine derating required up to 3048 m (10,000 ft) altitude. |
Operating Specifications
| Target Payload (100%) | 98.2 t | 108.3 ton (US) |
| Top Speed - Loaded | 67.1 km/h | 41.7 mile/h |
| Maximum Working Payload (110%) | 108032 kg | 238170 lb |
| Not to Exceed Payload (120%) | 117853 kg | 259822 lb |
| Note | Empty Operating weights may vary based on the machine configuration | Empty Operating weights may vary based on the machine configuration |
| Note (1) | Capacity with Dual slope body without liner | Capacity with Dual slope body without liner |
| Note (2) | Refer to Caterpillar 10/10/20 Payload Policy for maximum gross vehicle weight limitations | Refer to Caterpillar 10/10/20 Payload Policy for maximum gross vehicle weight limitations |
Approximate Weights - Dual Slope
| Body | 16070 kg | 35428 lb |
| Empty Vehicle | 65149 kg | 143629 lb |
| Gross Vehicle | 163360 kg | 360147 lb |
| Chassis | 49079 kg | 108201 lb |
| Body with Standard Liner | 21665 kg | 12269 lb |
Weight Distributions - Approximate
| Rear Axle - Empty/Loaded | 54% / 70% | 54% / 70% |
| Front Axle - Empty/Loaded | 46% / 30% | 46% / 30% |
Body Hoists
| Body Raise Time - High Idle | 15 s | 15 s |
| Body Lower Time - Float | 13 s | 13 s |
| Body Lower Time - High Idle | 13 s | 13 s |
Capacity - Dual Slope - 100% Fill Factor
| Struck | 41.9 m³ | 54.8 yd³ |
| Heaped 2:1 (SAE) | 60.1 m³ | 78.6 yd³ |
| Note (1) | Contact your local Cat dealer for body recommendation | Contact your local Cat dealer for body recommendation |
Capacity - Flat Floor - 100% Fill Factor
| Struck | 43.1 m³ | 56.4 yd³ |
| Heaped 2:1 (SAE) | 64.1 m³ | 83.8 yd³ |
| Note (1) | Contact your local Cat dealer for body recommendation. | Contact your local Cat dealer for body recommendation. |
Transmission
| Forward - 1 | 10.9 km/h | 6.8 mile/h |
| Forward - 2 | 14.8 km/h | 9.2 mile/h |
| Forward - 3 | 20.1 km/h | 12.5 mile/h |
| Forward - 4 | 27.1 km/h | 16.9 mile/h |
| Forward - 5 | 36.8 km/h | 22.9 mile/h |
| Forward - 6 | 49.4 km/h | 30.7 mile/h |
| Forward - 7 | 67.1 km/h | 41.7 mile/h |
| Reverse - 1 | 12.1 km/h | 7.5 mile/h |
| Note | Maximum travel speeds with standard 27.00R49 (E4) tires. | Maximum travel speeds with standard 27.00R49 (E4) tires. |
Service Refill Capacities
| Fuel Tank | 1140 l | 300 gal (US) |
| Cooling System | 212 l | 56 gal (US) |
| Crankcase | 115 l | 30 gal (US) |
| Differentials | 222 l | 59 gal (US) |
| Final Drive - Each | 42 l | 11 gal (US) |
| Steering System - Includes Tank | 60 l | 16 gal (US) |
| Brake Hoist System | 420 l | 110 gal (US) |
| Torque Converter - Transmission System | 125 l | 33 gal (US) |
Tires
| Standard Tire | 27.00R49 (E4) | 27.00R49 (E4) |
| Note (1) | Productive capabilities of the 777 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. | Productive capabilities of the 777 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. |
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
Suspension
| Effective Cylinder Stroke - Rear | 165 mm | 6.5 in |
| Effective Cylinder Stroke - Front | 318 mm | 12.5 in |
| Rear Axle - Oscillation | 5.4° | 5.4° |
Final Drives
| Differential Ratio | 2.74:1 | 2.74:1 |
| Planetary Ratio | 7.00:1 | 7.00:1 |
| Total Reduction Ratio | 19.16:1 | 19.16:1 |
Brakes
| Brake Surface Area - Front Caliper | 2787 cm² | 432 in² |
| Brake Surface Area - Front OCDB | 40225 cm² | 6235 in² |
| Brake Surface Area - Rear | 102116 cm² | 15828 in² |
| Brake Standards | ISO 3450:2011 | ISO 3450:2011 |
ROPS
| ROPS | ROPS (Rollover Protective Structure) cab offered by Caterpillar meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer. | ROPS (Rollover Protective Structure) cab offered by Caterpillar meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer. |
| FOPS | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 for Operator and ISO 13459:2012 Level II FOPS criteria for Trainer. | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 for Operator and ISO 13459:2012 Level II FOPS criteria for Trainer. |
Sound
| Note (1) | The dynamic operator sound pressure level is 80 dB(A) as per ISO 6396:2008 for cab offered by Caterpillar. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. | The dynamic operator sound pressure level is 80 dB(A) as per ISO 6396:2008 for cab offered by Caterpillar. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. |
| Sound Standards | ISO 6396:2008 | ISO 6396:2008 |
Steering
| Steering Standards | ISO 5010:2007 | ISO 5010:2007 |
| Steer Angle | 30.5° | 30.5° |
| Turning Diameter - Front | 25.3 m | 83 ft |
| Turning Circle - Clearance Diameter | 28.4 m | 93.17 ft |
Dimensions (Approximate) - Dual Slope
| Loading Height - Empty | 4380 mm | 14.37 ft |
| Dump Clearance | 890 mm | 2.91 ft |
| Overall Height - Body Raised | 9953 mm | 33 ft |
| Front Canopy Height - Loaded | 5177 mm | 17 ft |
| Height - Top of ROPS - Loaded | 4730 mm | 15.51 ft |
| Overall Body Length | 9555 mm | 31.35 ft |
| Centerline Front Tire Width | 4163 mm | 13.66 ft |
| Operating Width | 6545 mm | 21.47 ft |
| Inside Body Length | 6920 mm | 21.54 ft |
| Inside Body Width | 5197 mm | 17.05 ft |
| Wheel Base | 4570 mm | 14.99 ft |
| Overall Tire Width | 5262 mm | 17.26 ft |
| Overall Canopy Width | 6200 mm | 19.87 ft |
| Ground Clearance | 896 mm | 2.93 ft |
| Overall Length | 10004 mm | 32.82 ft |
| Rear Axle - Clearance | 902 mm | 2.95 ft |
| Rear Axle - Tail | 3045 mm | 10 ft |
| Outside Body Width | 5524 mm | 18.12 ft |
| Inside Body Depth - Maximum | 1895 mm | 6.21 ft |
| Centerline of Rear Dual Tire Width | 3576 mm | 11.73 ft |
| Overall Front Tire Width | 4961 mm | 16.28 ft |
| Operating Width - Extended Catwalk | 6545 mm | 21.47 ft |
| Engine Guard Clearance | 864 mm | 2.83 ft |
Features
ACHIEVE GREATER PRODUCTIVITY
BOOST FUEL EFFICIENCY
DESIGNED FOR SAFETY
EASY TO OPERATE
INTEGRATED CAT TECHNOLOGIES
PROVEN RELIABILITY AND SERVICEABILITY
ENHANCED DURABILITY
Standard Equipment
NOTE
| Standard and optional equipment may vary. Consult your Cat dealer for details. |
POWER TRAIN
| Engine idle shutdown |
| Air-to-air aftercooler (ATAAC) |
| Air cleaner with precleaner (2) |
| Automatic cold mode idle control |
| Electric priming pump |
| Two starters and four batteries |
| Fuel filter/water separator |
| Turbocharger (2) |
Braking system
|
| Body up shift inhibitor |
| Controlled throttle shifting |
| Directional shift management |
| Downshift inhibitor |
| Neutral start switch |
| Neutral coast inhibitor |
| Reverse shift inhibitor |
| Reverse neutralizer during dumping |
| Programmable top gear selection |
SUSPENSION SYSTEMS
Hydro pneumatic suspension
|
ELECTRICAL
| Alarm, backup |
| Alternator, 145 amp |
| Auxiliary jump start receptacle |
| Batteries, maintenance-free, 12V (4), 190 amp-hour |
| Electrical system, 10 amp, 24V to 12V converter |
| MineStar™ ready |
| Backup light, halogen |
Directional signals/hazard warning
|
| Headlights, halogen, with dimmer |
| Operator access courtesy lights |
| Stop/tail lights, LED |
OPERATOR ENVIRONMENT
| HVAC |
| Ashtray and cigarette lighter |
| Coat hook |
| Diagnostic connection port |
Entertainment radio ready
|
| Air cleaner service indicator |
| Transmission oil temperature gauge |
| Air system pressure gauge |
| Brake oil temperature gauge |
| Coolant temperature gauge |
| Hour meter |
| Tachometer |
| Engine overspeed indicator |
| Fuel level, gauge |
| Speedometer with odometer |
| Transmission gear indicator |
| Hoist lever |
| Horn |
| Load counter, automatic |
| Mirrors, left and right |
| ROPS cab, insulated/sound suppressed |
| Seat, Caterpillar comfort, full air suspension and retractable four point seat belt with shoulder harness |
| Seat, trainer with lap belt |
| Steering wheel, padded/tilt/telescopic |
| Storage compartment |
| Sun visor |
| Throttle lock |
| Right side access door |
| Left side power window |
| Windshield wiper, intermittent, and washer |
| Tinted, laminated glass |
GUARDS
| Engine crankcase |
| Driveline, operator safety vandalism protection lock |
FLUIDS
| Extended life coolant to –35° C (–30° F) |
OTHER STANDARD EQUIPMENT
| Airline dryer |
| Body mounting group |
| Body safety pin (secures body in up position) |
| Body down indicator |
| CD ROM parts book |
| Center mounted rims |
| Ground level battery disconnect |
| Ground level engine shutdown |
| Ground level grease fittings |
Reservoirs
|
| Rims 19.5 × 49 |
| Rock ejectors |
| Supplemental steering, automatic |
| Tie down eyes |
| Tow hooks (front)/tow pin (rear) |
Overview
Cat® 777 Off-Highway Truck provides best in class with increased performance, improved fuel efficiency, superior transmission controls, and enhanced cabin comfort – designed to offer durability plus a reduced total-cost of ownership.
Engine
UNITS:
Metric
Imperial
| Engine Model | Cat® C32B | Cat® C32B |
| Engine Speed | 1800 r/min | 1800 r/min |
| Gross Power - SAE J1995:2014 | 765 kW | 1026 hp |
| Net Power - SAE J1349:2011 | 711 kW | 953 hp |
| Net Torque | 5130 N·m | 3784 lb/ft |
| Net Torque Rise | 36% | 36% |
| Cylinders | 12 | 12 |
| Bore | 145 mm | 5.7 in |
| Stroke | 162 mm | 6.4 in |
| Displacement | 32.1 l | 1959 in³ |
| Emissions (1) | Meets U.S. EPA Tier 2 Equivalent emission standards. | Meets U.S. EPA Tier 2 Equivalent emission standards. |
| Engine Power - ISO 14396:2002 | 752 kW | 1008 hp |
| Emissions (2) | Certified for China Nonroad Stage III emission standards. | Certified for China Nonroad Stage III emission standards. |
| Note (1) | Net power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm. Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard. | Net power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm. Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard. |
| Note (2) | Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). | Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). |
| Note (3) | No engine derating required up to 3048 m (10,000 ft) altitude. | No engine derating required up to 3048 m (10,000 ft) altitude. |
Operating Specifications
| Target Payload (100%) | 98.2 t | 108.3 ton (US) |
| Top Speed - Loaded | 67.1 km/h | 41.7 mile/h |
| Maximum Working Payload (110%) | 108032 kg | 238170 lb |
| Not to Exceed Payload (120%) | 117853 kg | 259822 lb |
| Note | Empty Operating weights may vary based on the machine configuration | Empty Operating weights may vary based on the machine configuration |
| Note (1) | Capacity with Dual slope body without liner | Capacity with Dual slope body without liner |
| Note (2) | Refer to Caterpillar 10/10/20 Payload Policy for maximum gross vehicle weight limitations | Refer to Caterpillar 10/10/20 Payload Policy for maximum gross vehicle weight limitations |
Approximate Weights - Dual Slope
| Body | 16070 kg | 35428 lb |
| Empty Vehicle | 65149 kg | 143629 lb |
| Gross Vehicle | 163360 kg | 360147 lb |
| Chassis | 49079 kg | 108201 lb |
| Body with Standard Liner | 21665 kg | 12269 lb |
Weight Distributions - Approximate
| Rear Axle - Empty/Loaded | 54% / 70% | 54% / 70% |
| Front Axle - Empty/Loaded | 46% / 30% | 46% / 30% |
Body Hoists
| Body Raise Time - High Idle | 15 s | 15 s |
| Body Lower Time - Float | 13 s | 13 s |
| Body Lower Time - High Idle | 13 s | 13 s |
Capacity - Dual Slope - 100% Fill Factor
| Struck | 41.9 m³ | 54.8 yd³ |
| Heaped 2:1 (SAE) | 60.1 m³ | 78.6 yd³ |
| Note (1) | Contact your local Cat dealer for body recommendation | Contact your local Cat dealer for body recommendation |
Capacity - Flat Floor - 100% Fill Factor
| Struck | 43.1 m³ | 56.4 yd³ |
| Heaped 2:1 (SAE) | 64.1 m³ | 83.8 yd³ |
| Note (1) | Contact your local Cat dealer for body recommendation. | Contact your local Cat dealer for body recommendation. |
Transmission
| Forward - 1 | 10.9 km/h | 6.8 mile/h |
| Forward - 2 | 14.8 km/h | 9.2 mile/h |
| Forward - 3 | 20.1 km/h | 12.5 mile/h |
| Forward - 4 | 27.1 km/h | 16.9 mile/h |
| Forward - 5 | 36.8 km/h | 22.9 mile/h |
| Forward - 6 | 49.4 km/h | 30.7 mile/h |
| Forward - 7 | 67.1 km/h | 41.7 mile/h |
| Reverse - 1 | 12.1 km/h | 7.5 mile/h |
| Note | Maximum travel speeds with standard 27.00R49 (E4) tires. | Maximum travel speeds with standard 27.00R49 (E4) tires. |
Service Refill Capacities
| Fuel Tank | 1140 l | 300 gal (US) |
| Cooling System | 212 l | 56 gal (US) |
| Crankcase | 115 l | 30 gal (US) |
| Differentials | 222 l | 59 gal (US) |
| Final Drive - Each | 42 l | 11 gal (US) |
| Steering System - Includes Tank | 60 l | 16 gal (US) |
| Brake Hoist System | 420 l | 110 gal (US) |
| Torque Converter - Transmission System | 125 l | 33 gal (US) |
Tires
| Standard Tire | 27.00R49 (E4) | 27.00R49 (E4) |
| Note (1) | Productive capabilities of the 777 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. | Productive capabilities of the 777 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. |
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
Suspension
| Effective Cylinder Stroke - Rear | 165 mm | 6.5 in |
| Effective Cylinder Stroke - Front | 318 mm | 12.5 in |
| Rear Axle - Oscillation | 5.4° | 5.4° |
Final Drives
| Differential Ratio | 2.74:1 | 2.74:1 |
| Planetary Ratio | 7.00:1 | 7.00:1 |
| Total Reduction Ratio | 19.16:1 | 19.16:1 |
Brakes
| Brake Surface Area - Front Caliper | 2787 cm² | 432 in² |
| Brake Surface Area - Front OCDB | 40225 cm² | 6235 in² |
| Brake Surface Area - Rear | 102116 cm² | 15828 in² |
| Brake Standards | ISO 3450:2011 | ISO 3450:2011 |
ROPS
| ROPS | ROPS (Rollover Protective Structure) cab offered by Caterpillar meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer. | ROPS (Rollover Protective Structure) cab offered by Caterpillar meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer. |
| FOPS | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 for Operator and ISO 13459:2012 Level II FOPS criteria for Trainer. | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 for Operator and ISO 13459:2012 Level II FOPS criteria for Trainer. |
Sound
| Note (1) | The dynamic operator sound pressure level is 80 dB(A) as per ISO 6396:2008 for cab offered by Caterpillar. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. | The dynamic operator sound pressure level is 80 dB(A) as per ISO 6396:2008 for cab offered by Caterpillar. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. |
| Sound Standards | ISO 6396:2008 | ISO 6396:2008 |
Steering
| Steering Standards | ISO 5010:2007 | ISO 5010:2007 |
| Steer Angle | 30.5° | 30.5° |
| Turning Diameter - Front | 25.3 m | 83 ft |
| Turning Circle - Clearance Diameter | 28.4 m | 93.17 ft |
Dimensions (Approximate) - Dual Slope
| Loading Height - Empty | 4380 mm | 14.37 ft |
| Dump Clearance | 890 mm | 2.91 ft |
| Overall Height - Body Raised | 9953 mm | 33 ft |
| Front Canopy Height - Loaded | 5177 mm | 17 ft |
| Height - Top of ROPS - Loaded | 4730 mm | 15.51 ft |
| Overall Body Length | 9555 mm | 31.35 ft |
| Centerline Front Tire Width | 4163 mm | 13.66 ft |
| Operating Width | 6545 mm | 21.47 ft |
| Inside Body Length | 6920 mm | 21.54 ft |
| Inside Body Width | 5197 mm | 17.05 ft |
| Wheel Base | 4570 mm | 14.99 ft |
| Overall Tire Width | 5262 mm | 17.26 ft |
| Overall Canopy Width | 6200 mm | 19.87 ft |
| Ground Clearance | 896 mm | 2.93 ft |
| Overall Length | 10004 mm | 32.82 ft |
| Rear Axle - Clearance | 902 mm | 2.95 ft |
| Rear Axle - Tail | 3045 mm | 10 ft |
| Outside Body Width | 5524 mm | 18.12 ft |
| Inside Body Depth - Maximum | 1895 mm | 6.21 ft |
| Centerline of Rear Dual Tire Width | 3576 mm | 11.73 ft |
| Overall Front Tire Width | 4961 mm | 16.28 ft |
| Operating Width - Extended Catwalk | 6545 mm | 21.47 ft |
| Engine Guard Clearance | 864 mm | 2.83 ft |
Features
ACHIEVE GREATER PRODUCTIVITY
BOOST FUEL EFFICIENCY
DESIGNED FOR SAFETY
EASY TO OPERATE
INTEGRATED CAT TECHNOLOGIES
PROVEN RELIABILITY AND SERVICEABILITY
ENHANCED DURABILITY
NOTE
| Standard and optional equipment may vary. Consult your Cat dealer for details. |
POWER TRAIN
| Engine idle shutdown |
| Air-to-air aftercooler (ATAAC) |
| Air cleaner with precleaner (2) |
| Automatic cold mode idle control |
| Electric priming pump |
| Two starters and four batteries |
| Fuel filter/water separator |
| Turbocharger (2) |
Braking system
|
| Body up shift inhibitor |
| Controlled throttle shifting |
| Directional shift management |
| Downshift inhibitor |
| Neutral start switch |
| Neutral coast inhibitor |
| Reverse shift inhibitor |
| Reverse neutralizer during dumping |
| Programmable top gear selection |
SUSPENSION SYSTEMS
Hydro pneumatic suspension
|
ELECTRICAL
| Alarm, backup |
| Alternator, 145 amp |
| Auxiliary jump start receptacle |
| Batteries, maintenance-free, 12V (4), 190 amp-hour |
| Electrical system, 10 amp, 24V to 12V converter |
| MineStar™ ready |
| Backup light, halogen |
Directional signals/hazard warning
|
| Headlights, halogen, with dimmer |
| Operator access courtesy lights |
| Stop/tail lights, LED |
OPERATOR ENVIRONMENT
| HVAC |
| Ashtray and cigarette lighter |
| Coat hook |
| Diagnostic connection port |
Entertainment radio ready
|
| Air cleaner service indicator |
| Transmission oil temperature gauge |
| Air system pressure gauge |
| Brake oil temperature gauge |
| Coolant temperature gauge |
| Hour meter |
| Tachometer |
| Engine overspeed indicator |
| Fuel level, gauge |
| Speedometer with odometer |
| Transmission gear indicator |
| Hoist lever |
| Horn |
| Load counter, automatic |
| Mirrors, left and right |
| ROPS cab, insulated/sound suppressed |
| Seat, Caterpillar comfort, full air suspension and retractable four point seat belt with shoulder harness |
| Seat, trainer with lap belt |
| Steering wheel, padded/tilt/telescopic |
| Storage compartment |
| Sun visor |
| Throttle lock |
| Right side access door |
| Left side power window |
| Windshield wiper, intermittent, and washer |
| Tinted, laminated glass |
GUARDS
| Engine crankcase |
| Driveline, operator safety vandalism protection lock |
FLUIDS
| Extended life coolant to –35° C (–30° F) |
OTHER STANDARD EQUIPMENT
| Airline dryer |
| Body mounting group |
| Body safety pin (secures body in up position) |
| Body down indicator |
| CD ROM parts book |
| Center mounted rims |
| Ground level battery disconnect |
| Ground level engine shutdown |
| Ground level grease fittings |
Reservoirs
|
| Rims 19.5 × 49 |
| Rock ejectors |
| Supplemental steering, automatic |
| Tie down eyes |
| Tow hooks (front)/tow pin (rear) |
