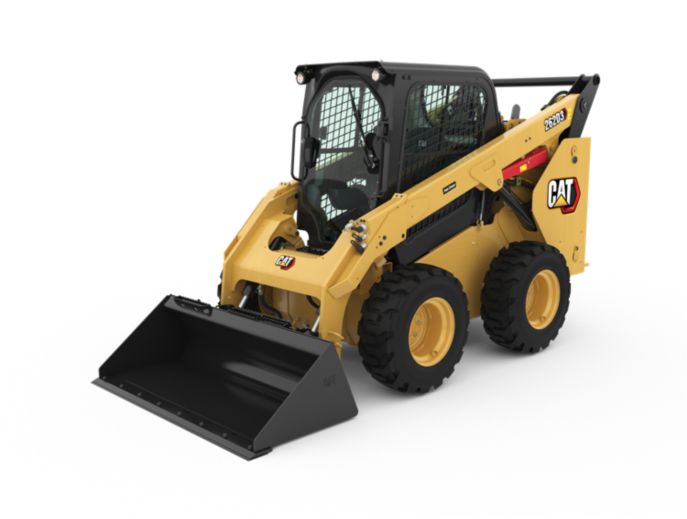

The Cat® 262D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
The Cat® 262D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
Gross Power - SAE J1995 | 55.4 kW | 74.3 hp |
Net Power - SAE 1349 | 54.4 kW | 72.9 hp |
Displacement | 3.3 l | 203 in³ |
Stroke | 120 mm | 4.7 in |
Bore | 94 mm | 3.7 in |
Peak Torque - 1,500 rpm - SAE J1995 | 265 N·m | 195 ft·lbf |
Net Power - ISO 9249 | 54.9 kW | 73.7 hp |
Engine Model | Cat C3.3B DIT (turbo) | Cat C3.3B DIT (turbo) |
Net Flywheel Power | 54.4 kW | 72.9 hp |
Operating Specifications
Rated Operating Capacity | 1225 kg | 2700 lb |
Rated Operating Capacity with Optional Counterweight | 1390 kg | 3055 lb |
Tipping Load | 2455 kg | 5400 lb |
Breakout Force - Tilt Cylinder | 3336 kg | 7355 lb |
Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
Weights
Operating Weight | 3763 kg | 8296 lb |
Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
Dimensions
Wheel Base | 1249 mm | 49.2 in |
Length - With Bucket on Ground | 3714 mm | 146.2 in |
Length - Without Bucket | 2995 mm | 117.9 in |
Height - Top of Cab | 2110 mm | 83.1 in |
Vehicle Width over Tires | 1676 mm | 66 in |
Maximum Overall Height | 4008 mm | 157.8 in |
Bucket Pin Height - Maximum Lift | 3172 mm | 124.9 in |
Bucket Pin Height - Carry Position | 200 mm | 7.9 in |
Reach - Maximum Lift/Dump | 786 mm | 30.9 in |
Clearance at Maximum Lift and Dump | 2380 mm | 93.7 in |
Ground Clearance | 226 mm | 8.9 in |
Departure Angle | 26° | 26° |
Bumper Overhang - Rear Axle | 1083 mm | 42.6 in |
Maximum Dump Angle | 51° | 51° |
Rack Back Angle - Maximum Height | 84° | 84° |
Bucket Pin Reach - Maximum Lift | 393 mm | 15.5 in |
Turning Radius from Center - Bucket | 2181 mm | 85.9 in |
Turning Radius from Center - Coupler | 1401 mm | 55.2 in |
Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
Maximum Reach - With Arms Parallel to Ground | 1293 mm | 50.9 in |
Turning Radius from Center - Machine Rear | 1805 mm | 71.1 in |
Hydraulic System
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure | 28000 kPa | 4061 psi |
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) | 57 kW | 76 hp |
Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 33 kW | 44 hp |
Hydraulic Flow - Standard - Loader Hydraulic Pressure | 23000 kPa | 3335 psi |
Hydraulic Flow - Standard - Loader Hydraulic Flow | 86 l/min | 23 gal/min |
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow | 121 l/min | 32 gal/min |
Cab
ROPS | ISO 3471:2008 | ISO 3471:2008 |
FOPS | ISO 3449:2005 Level I | ISO 3449:2005 Level I |
Power Train
Travel Speed - Forward or Reverse - Two Speed Option | 17.7 km/h | 11 mile/h |
Travel Speed - Forward or Reverse - One Speed | 12.5 km/h | 7.7 mile/h |
Service Refill Capacities
Chain Box - Each Side | 12.7 l | 3.3 gal (US) |
Cooling System | 14 l | 3.7 gal (US) |
Engine Crankcase | 11 l | 3 gal (US) |
Fuel Tank | 105 l | 27.7 gal (US) |
Hydraulic System | 52 l | 13.7 gal (US) |
Hydraulic Tank | 39 l | 10.3 gal (US) |
Noise Level
Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
Inside Cab* | 81 dB(A) | 81 dB(A) |
Note (2) | *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. | *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
Outside Cab** | 101 dB(A) | 101 dB(A) |
Note (3) | **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. | **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
Air Conditioning System (if equipped)
Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. |
The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.
Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.
Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.
A standard, Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. (Photo shown may vary from machine referenced.)
ELECTRICAL
12 volt Electrical System |
80 ampere Alternator |
Ignition Key Start/Stop Switch |
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light |
Backup Alarm |
Heavy Duty Battery, 850 CCA |
OPERATOR ENVIRONMENT
Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control |
Gauges: Fuel Level, Hour Meter |
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System |
Adjustable Vinyl Seat |
Fold In Ergonomic Contoured Armrest |
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages |
ROPS Cab, Open, Tilt Up |
FOPS, Level I |
Top and Rear Windows |
Floor Mat |
Interior Rearview Mirror |
12 volt Electric Socket |
Horn |
Hand (Dial) Throttle, Electronic |
Adjustable Joystick Controls |
Anti-theft Security System with 6-button Keypad |
Storage Compartment with Netting |
POWER TRAIN
Cat C3.3B, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards |
Air Cleaner, Dual Element, Radial Seal |
S·O·SSM Sampling Valve, Hydraulic Oil |
Filters, Cartridge-type, Hydraulic |
Filters, Canister-type, Fuel and Water Separator |
Radiator/Hydraulic Oil Cooler (side-by-side) |
Spring Applied, Hydraulically Released Parking Brakes |
Hydrostatic Transmission |
Four Wheel Chain Drive |
OTHER
Engine Enclosure, Lockable |
Extended Life Antifreeze, –37° C (–34° F) |
Machine Tie Down Points (6) |
Support, Lift Arm |
Hydraulic Oil Level Sight Gauge |
Radiator Coolant Level Sight Gauge |
Radiator, Expansion Bottle |
Cat ToughGuard™ Hose |
Auxiliary, Hydraulics, Continuous Flow |
Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release |
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm |
Electrical Outlet, Beacon |
Belly Pan Cleanout |
Variable Speed Demand Fan |
Product Link™ PL240, Cellular |
MANDATORY EQUIPMENT
Hydraulics, Standard or High Flow XPS |
Quick Coupler, Mechanical or Powered |
High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in) |
Power Train: One Speed, One Speed with Ride Control, Two Speed or Two Speed with Ride Control |
PERFORMANCE PACKAGES: – Performance Package H1: Standard Flow Hydraulics (No Self Level) – Performance Package H2: Standard Flow, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) – Performance Package H3: High Flow XPS, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) |
COMFORT PACKAGES: – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door) – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door) – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate) – Enclosed ROPS with A/C (C3): C2 + Air Conditioner |
OPTIONAL EQUIPMENT
Hand-Foot Style Controls |
External Counterweights |
Beacon, Rotating |
Engine Block Heater – 120V |
Oil, Hydraulic, Cold Operation |
Paint, Custom |
Heavy Duty Battery, 1,000 CCA |
Product Link PL641, Cellular |
Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack) |
