Articulated Trucks

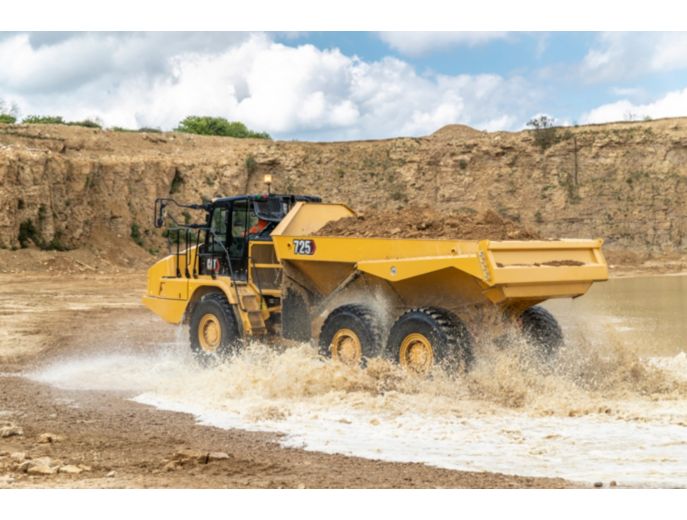

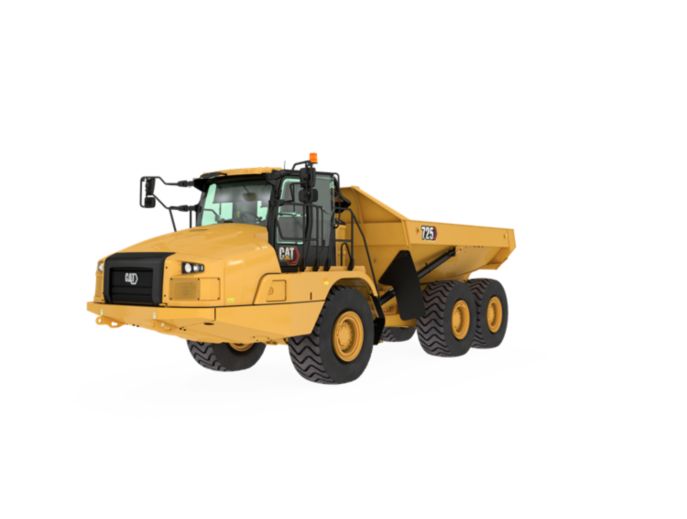

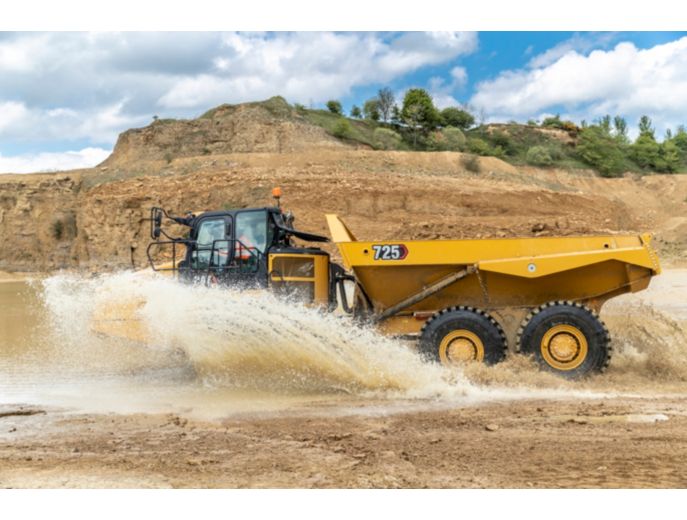

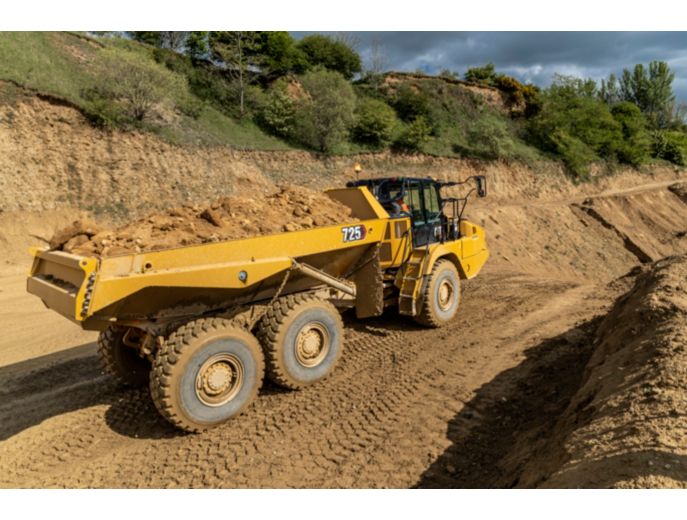

725

The Cat® 725 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, automatic retarder control, stability-assist machine rollover warning system, and a fuel saving ECO mode.

Request a quote

Overview

Engine

UNITS:

Metric

Imperial

Engine Model	Cat® C9.3	Cat® C9.3
Gross Power (SAE J1995)	255 kW	342 hp
Net Power (SAE J1349)	249 kW	334 hp
Engine Power (ISO 14396)	252 kW	338 hp
Bore	115 mm	4.5 in
Stroke	1149 mm	45.2 in
Displacement	9.3 l	567.5 in³
Note (1)	Advertised power is tested at 1,700 rpm.	Advertised power is tested at 1,700 rpm.
Note (2)	Advertised power is tested per the specified standard in effect at the time of manufacture.	Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3)	The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.	The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4)	Net power when the fan is at maximum speed is 249 kW (334 hp) per the SAE reference conditions.	Net power when the fan is at maximum speed is 249 kW (334 hp) per the SAE reference conditions.
Note (5)	Meets U.S. EPA Tier 4 Final/EU Stage V, Japan 2014, and Korea Stage V emission standards.	Meets U.S. EPA Tier 4 Final/EU Stage V, Japan 2014, and Korea Stage V emission standards.
Note (6)	Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.	Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
No Engine De-rating Below	914 m	3000 ft
Peak Engine Torque Gross (SAE J1995)	1729 N·m	1275 lbf·ft
Peak Engine Torque Net (SAE J1349)	1712 N·m	1263 lbf·ft
Peak Engine Torque Speed	1200 r/min	1200 r/min

Weights

Rated Payload	24 t	26.5 ton (US)

Air Conditioning System

Air Conditioning	If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO 2 equivalent of 1.716 metric tonnes (1.891 tons).	If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO 2 equivalent of 1.716 metric tonnes (1.891 tons).

Body Capacities

Heaped (SAE 2:1)	15 m³	19.6 yd³
Struck	11 m³	14.4 yd³
Tailgate Heaped SAE 2:1	15.6 m³	20.4 yd³
Tailgate Struck	11.1 m³	14.5 yd³

Transmission

Forward - 1	8.1 km/h	5 mile/h
Forward - 2	15.2 km/h	9.4 mile/h
Forward - 3	23.2 km/h	14.4 mile/h
Forward - 4	35.5 km/h	22.1 mile/h
Forward - 5	49.4 km/h	30.7 mile/h
Forward - 6	58.4 km/h	36.3 mile/h
Reverse - 1	8.9 km/h	5.5 mile/h

Sound Levels

Note (1)	The declared dynamic operator sound pressure level is 69±2 dB(A) when "ISO 6396:2008" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.	The declared dynamic operator sound pressure level is 69±2 dB(A) when "ISO 6396:2008" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2)	Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.	Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Operating Weights

Front Axle - Empty	14050 kg	30974 lb
Center Axle - Empty	4646 kg	10242 lb
Rear Axle - Empty	4426 kg	9757 lb
Total - Empty	23122 kg	50975 lb
Front Axle - Rated Load	2500 kg	5511 lb
Center Axle - Rated Load	10750 kg	23699 lb
Rear Axle - Rated Load	10750 kg	23699 lb
Total - Rated Load	24000 kg	52910 lb
Front Axle - Loaded	16549 kg	36484 lb
Center Axle - Loaded	15397 kg	33944 lb
Rear Axle - Loaded	15176 kg	33457 lb
Total - Loaded	47122 kg	103886 lb

Body Plate

Type	High strength Brinell HB450 wear resistant steel	High strength Brinell HB450 wear resistant steel

Body Plate Thickness

Front Plate	7 mm	0.28 in
Base Plate	13 mm	0.51 in
Side Plates	11 mm	0.43 in
Scow	13 mm	0.51 in

Service Refill Capacities

Fuel Tank	412 l	91.0 gal (US)
Cooling System	83 l	18.0 gal (US)
Steering/Hoist Hydraulic System	110.0 l	24.0 gal (US)
Engine Crankcase	38 l	8 gal (US)
Transmission	47 l	10.0 gal (US)
Output Transfer Gear Box	24 l	5.0 gal (US)
Final Drive - Each	7.5 l	1.6 gal (US)
DEF Tank	20 l	4.0 gal (US)

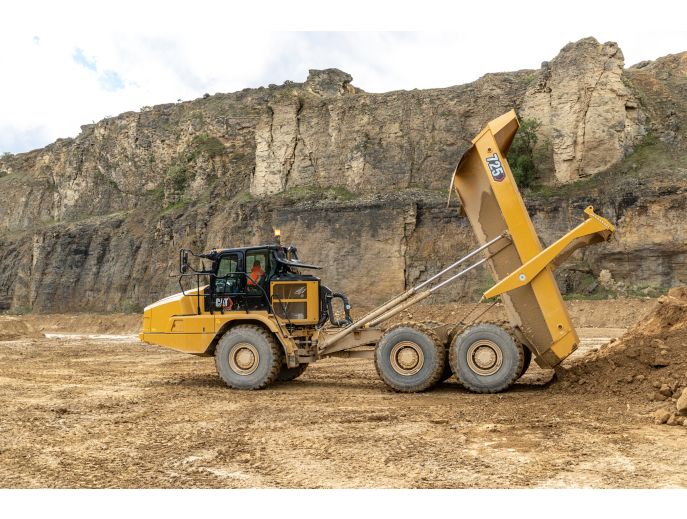

Body Hoist

Raise Time	10 s	10 s
Lower Time	8 s	8 s

Standards

Brakes	ISO 3450 – 2011	ISO 3450 – 2011
Cab - FOPS	ISO 3449 - 2005 Level II	ISO 3449 - 2005 Level II
Cab - ROPS	ISO 3471 – 2008	ISO 3471 – 2008
Steering	ISO 5010 – 2019	ISO 5010 – 2019

Turning Circle

Turning Dimensions - Steer Angle - Left/Right	45°	45°
Turning Dimensions - SAE Turning Radius	7470 mm	294 in
Turning Dimensions - Clearance Radius	8075 mm	318 in
Turning Dimensions - Inside Radius	3879 mm	153 in
Turning Dimensions - Aisle Width	5332 mm	210 in
Note	Dimensions are for machines equipped with 23.5R25 tires.	Dimensions are for machines equipped with 23.5R25 tires.

Steering

Lock to Lock	4.75 seconds @ 60 rpm	4.75 seconds @ 60 rpm

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 349/352 - Passes	4-5	4-5
Hydraulic Excavators: 336 - Passes	5-6	5-6
Wheel Loaders: 972/972 XE - Passes	3-4	3-4
Wheel Loaders: 966/966 XE - Passes	4	4
Wheel Loader: 962 - Passes	4-5	4-5
Wheel Loader: 950 - Passes	5	5
Note	An optimum system match gives you a major productivity advantage. The 725 is an excellent match for the Cat 349/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.	An optimum system match gives you a major productivity advantage. The 725 is an excellent match for the Cat 349/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

Features

MAXIMIZE PERFORMANCE

INDUSTRIAL GRADE TRANSMISSION

AUTOMATIC CONTROLS

POWERFUL EFFICIENCY

WORK IN COMFORT

BUILT TO PERFORM

HEAVY DUTY CONSTRUCTION

TECHNOLOGY THAT GETS WORK DONE

Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Air conditioning
Machine operation monitoring system includes: – Action lamp – Engine oil pressure – Primary steering system – Left and right turn signal – High beam – Coolant temperature – Tachometer – Parking brake – Fuel level – Transmission oil temperature – Brake system – Transmission hold – Hoist control – Hydraulic system – Charging system – Retarder – Transmission fault – Traction control system – Check engine lamp
Windows opening both sides, tinted
Storage: – Cup holder – Flask receptacle – Under seat storage – Door pocket – Behind operator seat storage – Coat hook
Glass windows: – Front, laminated and tinted – Sides and rear, toughened and tinted
Seats: – Operator: fully adjustable, air suspension – Trainer: padded with lap belt
Tilt and telescopic steering wheel
Retractable belt: Operator seat and second seat
Adjustable air vents
Heater and defroster with four-speed fan
Sun visor
Touchscreen display incorporating the rearview camera video feed
Windshield wiper and washer, two speed, intermittent (front)
Combined gear selection and hoist control lever
Liquid Crystal Display (LCD): – Alert indicator – Selected gear and direction – Speed or auto shift – Review Operation and Maintenance Manual (OMM) – Primary steering failure warning – Seat belt warning – Secondary steering failure warning – Diesel Particulate Filter (DPF) regeneration filter – Secondary steering energy source engaged – Hour meter – Retarder active
Secondary steering – electro hydraulic
Mirrors: exterior

TECHNOLOGY

Product Link Cellular PLE643
Cat® Detect with Stability Assist

ELECTRICAL AND LIGHTING

Electrical system: 24-volt, 5A 24- to 12-volt converter
Lighting systems: – Cab interior – Two head lamps – Two width marker – Two reversing – Work light/cab access light – Two stop/tail lights – Front and rear direction indicators
Main disconnect switch
Horn
Batteries (two) maintenance free
Remote starting receptacle (cables not included)

POWERTRAIN

Differentials: standard with automatic clutched inter- and cross-axle differential locks
Cat Clean Emission Module (CEM) and exhaust aftertreatment package
Cat C9.3 engine
Three axle, six-wheel drive
Hydraulic retarder
Dual circuit oil immersed, enclosed brakes – all wheels
Auto shift six-speed forward and single speed reverse transmission

SAFETY

Reverse alarm
Rearview camera
Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab

GUARDS

Front dump body spill guard, integral part of fabricated body
Crankcase
Rear window
Radiator

OTHER STANDARD EQUIPMENT

Vandalism protection: lockable caps
Mud flaps: wheel arch and body mounted with transportation tiebacks
Sound suppression (standard in some countries) –EFTA countries are EU countries plus Iceland, Norway, Lichtenstein, Switzertland, Türkiye and UK.
S·O·S sampling valves
Tires, six 23.5R25

Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Downloads

725 Product Brochure Download

725 Technical Specifications Download
