301.5

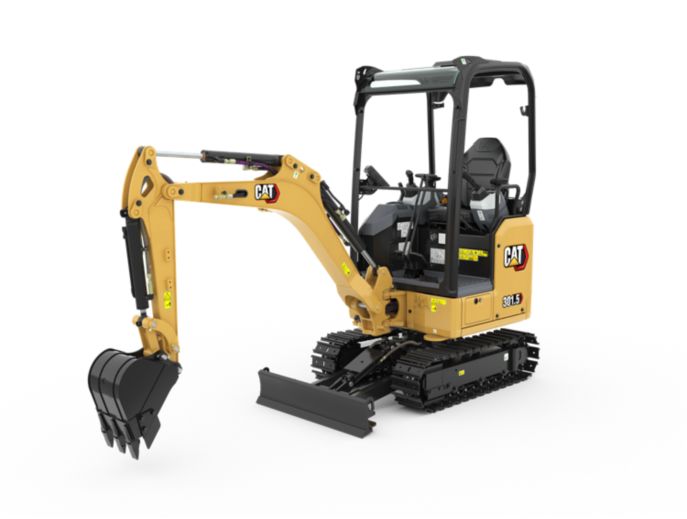

The Cat® 301.5 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Request a quote

Overview

The Cat^® 301.5 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	15.7 kW	21 HP
Engine Model	C1.1	C1.1
Displacement	1.1 l	69 in³
Stroke	81 mm	3.2 in
Bore	77 mm	3 in
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note	Net power is tested per ISO 9249:2007 and 80/1269/EEC.	Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Note (2)	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Note (1)	Engine power is tested per ISO 14396:2002.	Engine power is tested per ISO 14396:2002.
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	15.7 kW	21 HP
Gross Power - SAE J1995:2014	16.1 kW	21.6 HP

Weights

Operating Weight	1775 kg	3913 lb
Minimum Operating Weight with Canopy*	1580 kg	3483 lb
Note (1)	*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.	*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
Maximum Operating Weight with Canopy**	1775 kg	3913 lb
Note (2)	**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.	**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
EU: CE Plate Weight***	1740 kg	3836 lb
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Dimensions - Long Stick

Dig Depth	2540 mm	100 in
Maximum Blade Height	275 mm	10.8 in
Stick Length	1160 mm	45.7 in
Boom Height - Shipping Position	1040 mm	40.9 in
Maximum Reach	3960 mm	155.9 in
Maximum Dig Height	3490 mm	137.4 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Tail Swing	820 mm	32.3 in
O/A Undercarriage Length	1460 mm	57.5 in
Track Width - Expanded	1300 mm	51.18 in
Boom In Reach	1450 mm	57.1 in
O/A Shipping Height	2310 mm	90.9 in
Maximum Blade Depth	260 mm	10.2 in
Maximum Reach - Ground Level	3890 mm	153.1 in
Overall Shipping Length*	3590 mm	141.3 in
Maximum Dump Clearance	2510 mm	98.8 in
Swing Bearing - Height	445 mm	17.5 in
Minimum Ground Clearance Below Undercarriage	155 mm	6.1 in
Boom Swing - Left	65 °	65 °
Vertical Wall	1890 mm	74.4 in
Track Width - Retracted	990 mm	39 in
Track Belt/Shoe Width	230 mm	9.1 in
Boom Swing - Right	50 °	50 °

Blade

Height	225 mm	8.9 in
Note	*Expanded – 1300 mm (51 in)	*Expanded – 1300 mm (51 in)
Width*	990 mm	39 in

Dimensions - Standard Stick

Swing Bearing - Height	445 mm	17.5 in
O/A Undercarriage Length	1460 mm	57.5 in
Maximum Reach - Ground Level	3730 mm	146.9 in
Boom Swing - Left	65 °	65 °
Maximum Reach	3800 mm	149.6 in
O/A Shipping Height	2310 mm	90.9 in
Maximum Blade Depth	260 mm	10.2 in
Minimum Ground Clearance Below Undercarriage	155 mm	6.1 in
Vertical Wall	1800 mm	70.9 in
Dig Depth	2340 mm	92.1 in
Track Width - Expanded	1300 mm	51.18 in
Track Belt/Shoe Width	230 mm	9.1 in
Stick Length	960 mm	37.8 in
Maximum Dig Height	3430 mm	135 in
Overall Shipping Length*	3620 mm	142.5 in
Boom In Reach	1460 mm	57.5 in
Maximum Blade Height	275 mm	10.8 in
Maximum Dump Clearance	2450 mm	96.5 in
Boom Swing - Right	50 °	50 °
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Boom Height - Shipping Position	1090 mm	42.9 in
Tail Swing	820 mm	32.3 in
Track Width - Retracted	990 mm	39 in

Hydraulic System

Pump Flow at 2,400 rpm	66 l/min	17.4 gal/min
Digging Force - Stick - Long	7.2 kN	1616.4 lbf
Operating Pressure - Swing	103 bar	1493.9 psi
Digging Force - Stick - Standard	8.2 kN	1843.4 lbf
Auxiliary Circuit - Primary - Flow	33 l/min	8.7 gal/min
Auxiliary Circuit - Secondary - Pressure	213 bar	3089.3 psi
Operating Pressure - Travel	213 bar	3089.3 psi
Operating Pressure - Equipment	213 bar	3089.3 psi
Auxiliary Circuit - Secondary - Flow	14 l/min	3.7 gal/min
Digging Force - Bucket	14.1 kN	3169.8 lbf
Auxiliary Circuit - Primary - Pressure	213 bar	3089.3 psi
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump

Travel System

Maximum Traction Force - High Speed	10.3 kN	2315.5 lbf
Ground Pressure - Minimum Weight	27.3 kPa	4 psi
Ground Pressure - Maximum Weight	30.6 kPa	4.4 psi
Travel Speed - High	4.4 km/h	2.7 mile/h
Travel Speed - Low	2.9 km/h	1.8 mile/h
Maximum Traction Force - Low Speed	16 kN	3597 lbf
Gradeability - Maximum	30 degrees	30 degrees

Certification - Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997	ISO 12117:1997
Top Guard	ISO 10262:1998 (Level I)	ISO 10262:1998 (Level I)

Sound

Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A)	93 dB(A)
Note	European Union Directive “2000/14/EC”	European Union Directive “2000/14/EC”

Service Refill Capacities

Cooling System	3.9 l	1 gal (US)
Engine Oil	4.4 l	1.2 gal (US)
Hydraulic System	26 l	6.9 gal (US)
Hydraulic Tank	18 l	4.8 gal (US)
Fuel Tank	22 l	5.8 gal (US)

Swing System

Machine Swing Speed	9.8 r/min	9.8 r/min

Weight Increase from Minimum Configuration

Long Stick	8 kg	18 lb
Steel Tracks	57 kg	126 lb
Expandable Undercarriage	129 kg	284 lb

Sustainability

Recyclability	95%	95%

Features

ALL DAY COMFORT

Adjustable wrist rests and a suspension seat option help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we've built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up canopy lets you reach additional service areas when needed.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

ENGINE

Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Two Speed Travel
Fuel Water Separator
Power on Demand (not available in all regions)
Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump
Accumulator
Automatic Swing Brake
Auxiliary Hydraulic Lines
One and Two Way Auxiliary Flow
Continuous Auxiliary Flow
Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Tilt-up Canopy
Top Guard ISO 10262:1998 Level I
ROPS – ISO 12117-2:2008
TOPS – ISO 12117:1997
Machine 2-Point Lifting
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer (optional in some regions)
Adjustable Wrist Rests
Washable Floor Mat
Travel Pedals and Hand Levers
Machine Security
Machine Security – Standard Key with Pass Code
Vinyl Non-Suspension Seat
Hydraulic Lockout – All Controls
Retractable High Visibility Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
Storage Pocket
Skylight
Mounting Bosses for Front
Signaling/Warning Horn
Boom Light, Halogen
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Hour Meter with Wake Up Switch

UNDERCARRIAGE

Expandable Undercarriage
Rubber Belt (230 mm/9 in wide)
Dozer Blade
Dozer Blade Float
Hydraulic Track Adjusters
Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (1780 mm/70 in)
Standard Stick (960 mm/37.8 in)
Front Shovel Capable
Front Shovel Capable – Pin-On
Thumb Ready (not available in all regions)
Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery
Software (machine and monitor)
Maintenance Free Battery
Signaling/Warning Horn
12 Volt Power Socket

Optional Equipment

OPERATOR ENVIRONMENT

Control Pattern Changer (optional in some regions)
No Travel Pedals and Hand Levers
Machine Security – Push to Start with Key Fob/Pass Code
Vinyl Suspension Seat
LED Front Lights
LED Front and Rear Lights
LED Boom Light
Mirrors Left and Right
